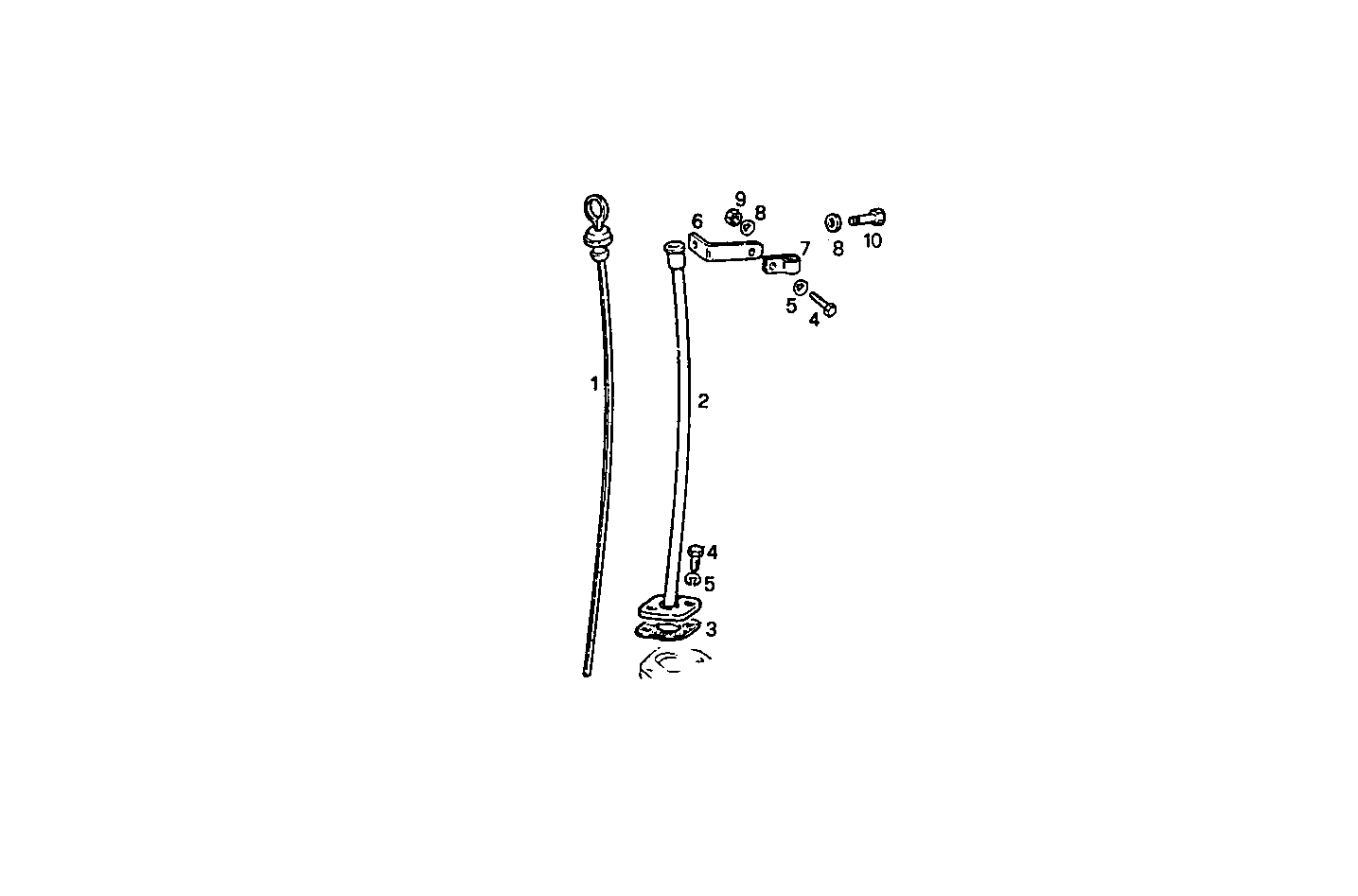

LONG OIL DIPSTICK RIGHT SIDE
8061SRi10.05 — 8061SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4843492 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 2 | 4843490 | ROD GUIDE ROD GUIDE | 1 | |
| 3 | 98400785 | GASKET GASKET | 1 | |
| 4 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 6 | 8101336 | RETAINER RETAINER | 1 | |
| 7 | 8100228 | CLIP CLIP | 1 | |
| 8 | 17094914 | WASHER WASHER | 2 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 16690924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 |
