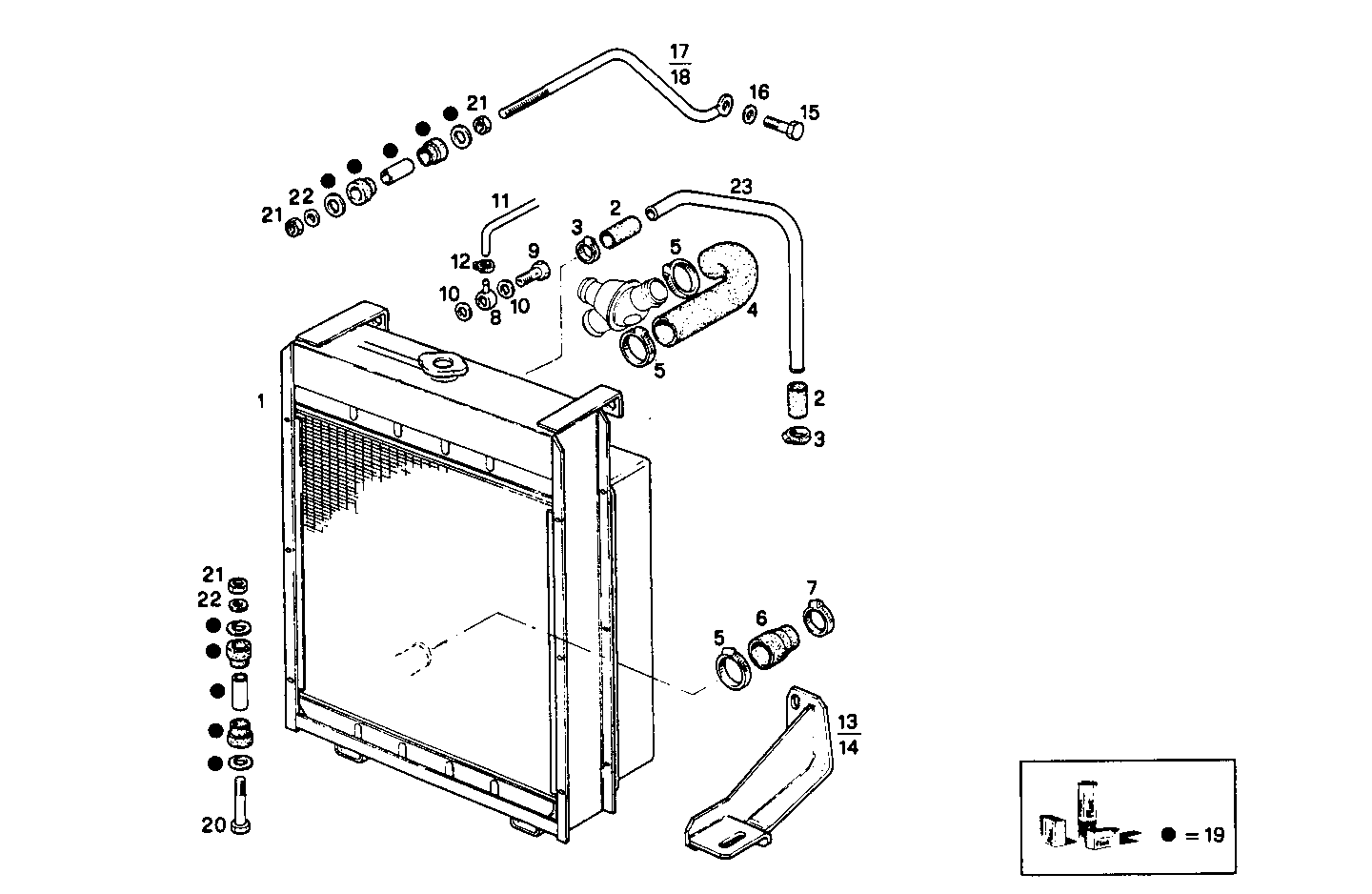

RADIATOR FOR SETTING TILL MAX POWER
8061SRi10.05 — 8061SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8013489 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 17739187 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 3 | 17764592 | CLIP CLIP | 4 | |
| 4 | 8013497 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 17764891 | CLIP CLIP | 3 | |
| 6 | 8813238 | WATER HOSE WATER HOSE | 1 | |
| 7 | 17764791 | CLIP CLIP | 1 | |
| 8 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 9 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 10 | 4858607 | WASHER WASHER | 2 | |
| 11 | 19056687 | RUBBER HOSE RUBBER HOSE | 1 | |
| 12 | 18087991 | CLIP CLIP | 2 | |
| 13 | 8010789 | SUPPORT SUPPORT | 1 | |
| 14 | 8010787 | SUPPORT SUPPORT | 1 | |
| 15 | 98491344 | SCREW SCREW | 1 | |
| 16 | 98415215 | WASHER WASHER | 1 | |
| 17 | 8013501 | TIE ROD TIE ROD | 1 | |
| 18 | 8012288 | TIE ROD TIE ROD | 1 | |
| 19 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 2 | |
| 20 | 16610624 | SCREW SCREW | 2 | |
| 21 | 17038421 | HEXAGON NUT HEXAGON NUT | 6 | |
| 22 | 17091074 | WASHER WASHER | 6 | |
| 23 | 8013499 | WATER PIPE WATER PIPE | 1 |
