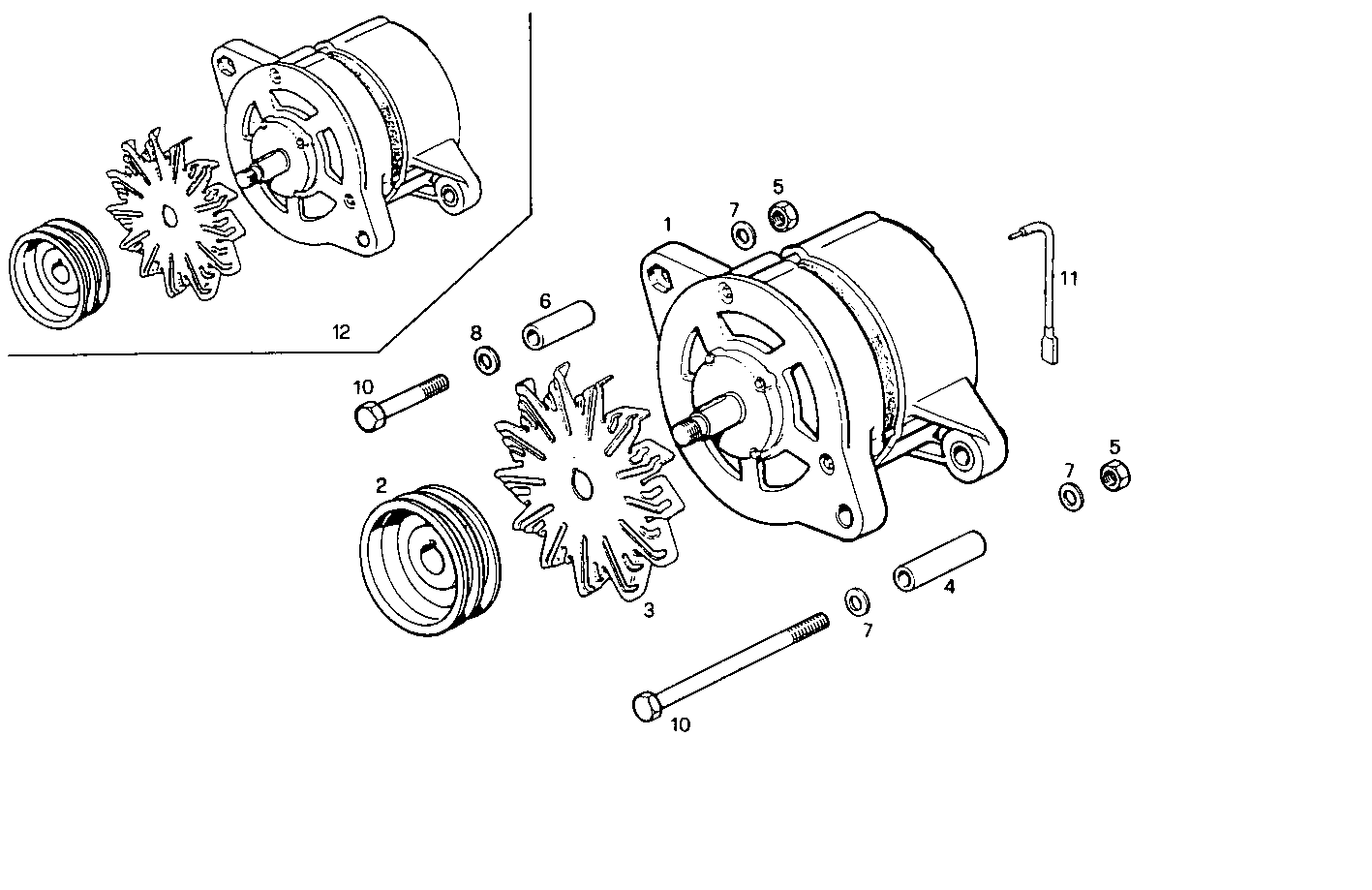

SELF-REGULATED ALTERNATOR
8061SRi10.05 — 8061SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98424453 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 5011828 | PULLEY PULLEY | 1 | |
| 3 | 4717026 | GENERATOR FAN GENERATOR FAN | 1 | |
| 4 | 8015577 | SPACING BAR SPACING BAR | 1 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 8015453 | SPACING BAR SPACING BAR | 1 | |
| 7 | 17494934 | WASHER WASHER | 3 | |
| 8 | 17095104 | WASHER WASHER | 1 | |
| 9 | 15972621 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 15888821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 8019531 | WIRE/CABLE WIRE/CABLE | 1 | |
| 12 | 8016151 | ALTERNATOR ALTERNATOR | 1 |
