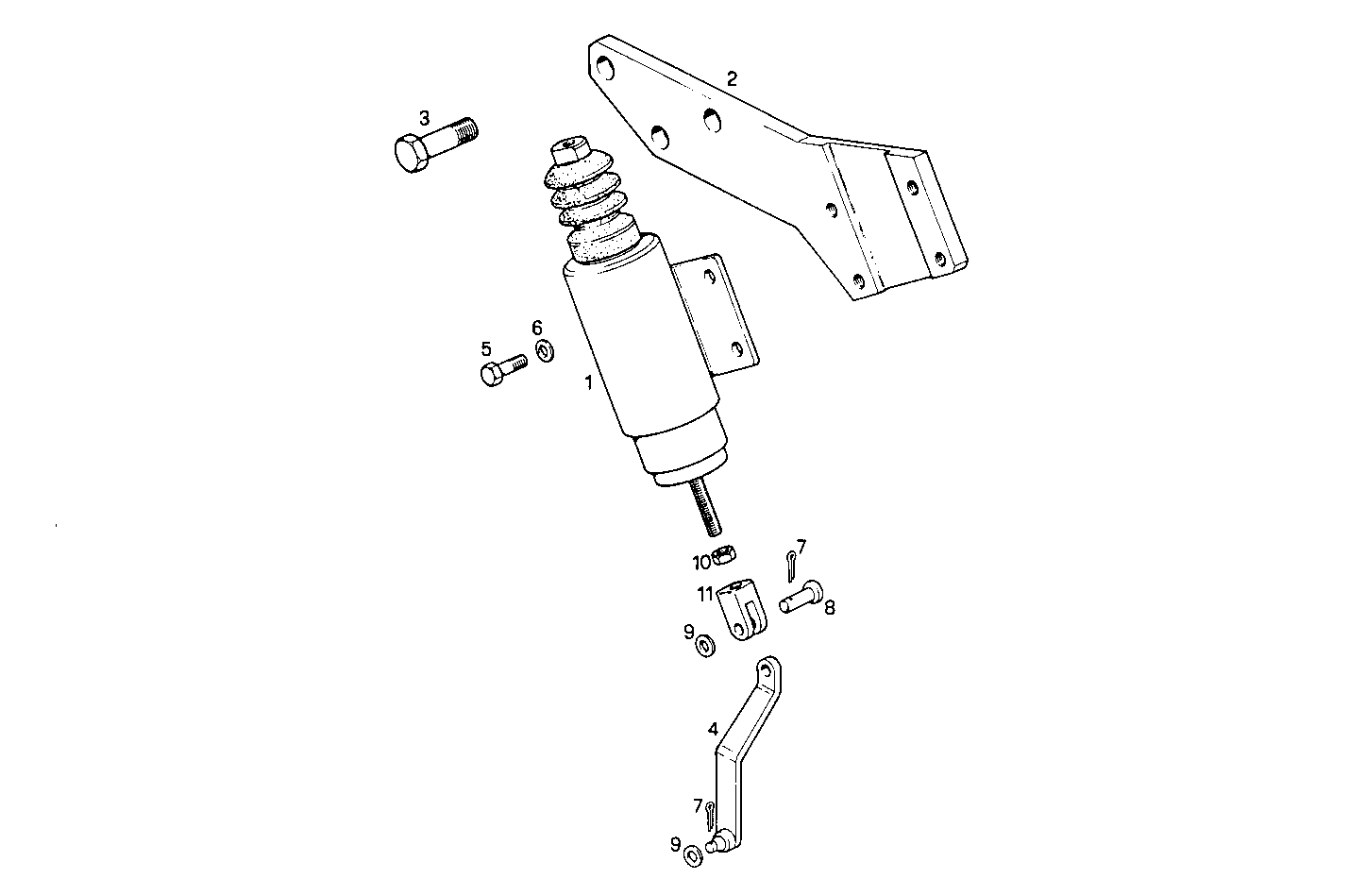

STOP SOLENOID - ENERGIZE TO STOP - 24V
8061SRi10.05 — 8061SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105568 | SOLENOID SOLENOID | 1 | |
| 2 | 8014921 | SUPPORT SUPPORT | 1 | |
| 3 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 8014992 | CLEVIS CLEVIS | 1 | |
| 5 | 16603524 | SCREW SCREW | 4 | |
| 6 | 17088474 | WASHER WASHER | 4 | |
| 7 | 16851301 | SPLIT PIN SPLIT PIN | 2 | |
| 8 | 17718411 | PIN PIN | 1 | |
| 9 | 17094504 | WASHER WASHER | 2 | |
| 10 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 8109159 | CLEVIS CLEVIS | 1 |
