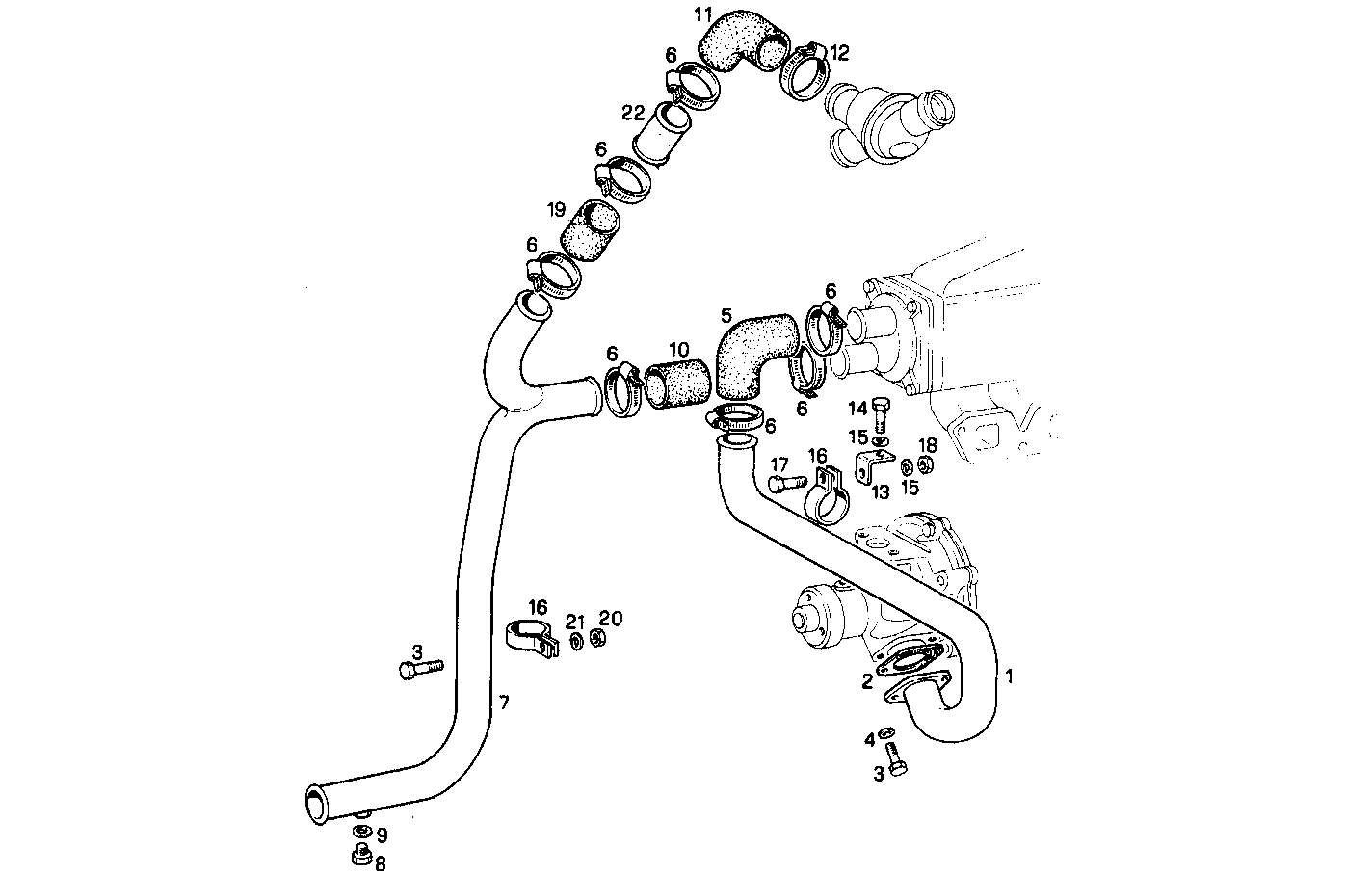

WATER LINES
8061SRi10.05 — 8061SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8013418 | WATER PIPE WATER PIPE | 1 | |
| 2 | 98418621 | GASKET GASKET | 1 | |
| 3 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17094914 | WASHER WASHER | 2 | |
| 5 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 17764791 | CLIP CLIP | 5 | |
| 7 | 8019645 | WATER PIPE WATER PIPE | 1 | |
| 8 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 4858606 | GASKET GASKET | 1 | |
| 10 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 11 | 4951429 | WATER HOSE WATER HOSE | 1 | |
| 12 | 17764891 | CLIP CLIP | 1 | |
| 13 | 8102705 | RETAINER RETAINER | 1 | |
| 14 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 8103077 | CLIP CLIP | 2 | |
| 17 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 17038121 | HEXAGON NUT HEXAGON NUT | 1 | |
| 19 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 21 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 22 | 8019644 | WATER PIPE WATER PIPE | 1 |
