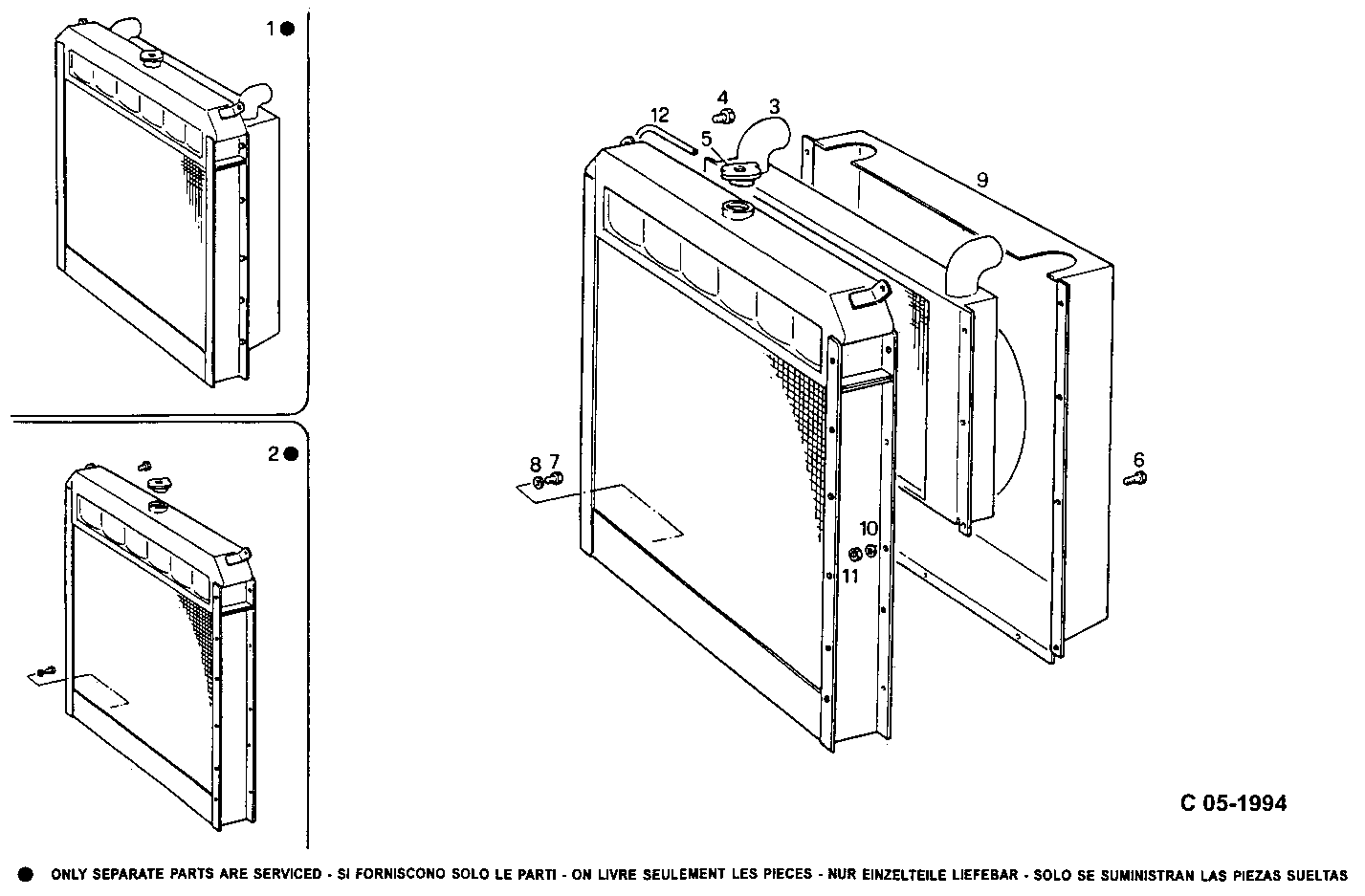

RADIATOR
8061SRi25.05 — 8061SRi25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8014009 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8014008 | WATER RADIATOR WATER RADIATOR | 1 | |
| 3 | 8006241 | INTERCOOLER INTERCOOLER | 1 | |
| 4 | 8105096 | PLUG PLUG | 1 | |
| 5 | 8107632 | RADIATOR PLUG RADIATOR PLUG | 1 | |
| 6 | 16043424 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 7 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 8 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 8008592 | AIR HOOD AIR HOOD | 1 | |
| 10 | 14496501 | WASHER WASHER | 20 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 10 | |
| 12 | 17723181 | WATER HOSE WATER HOSE | 1 |
