SENDER UNITS ALARMS INSTRUMENT - 12/24V
8061SRi27.06 — 8061SRI27

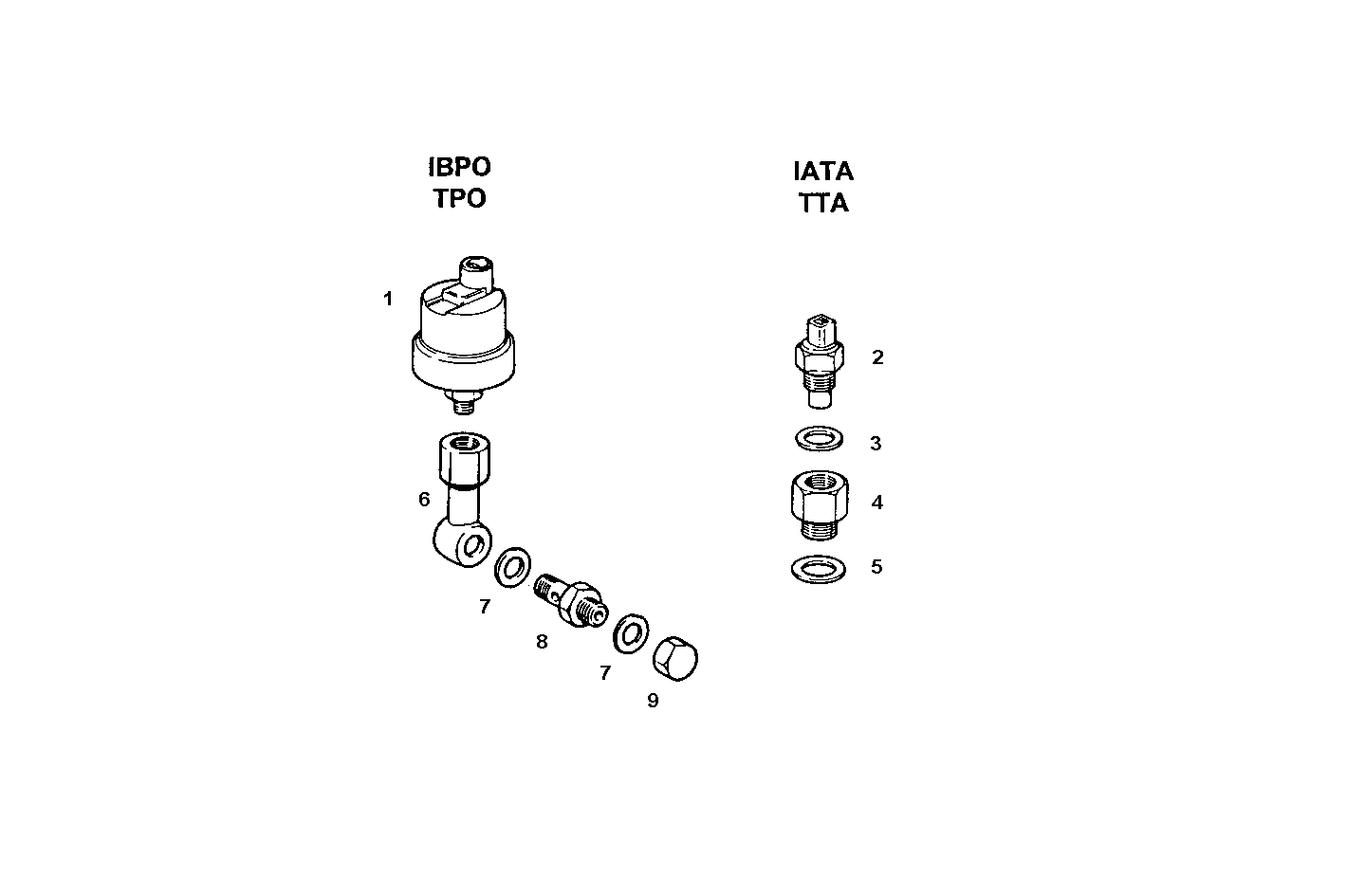

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8102598 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8108436 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 4927546 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 4928330 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 4858609 | WASHER WASHER | 1 | |
| 6 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 7 | 10284460 | SEAL GASKET SEAL GASKET | 2 | |
| 8 | 4607792 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 99448327 | LOCK PLUG LOCK PLUG | 1 |
