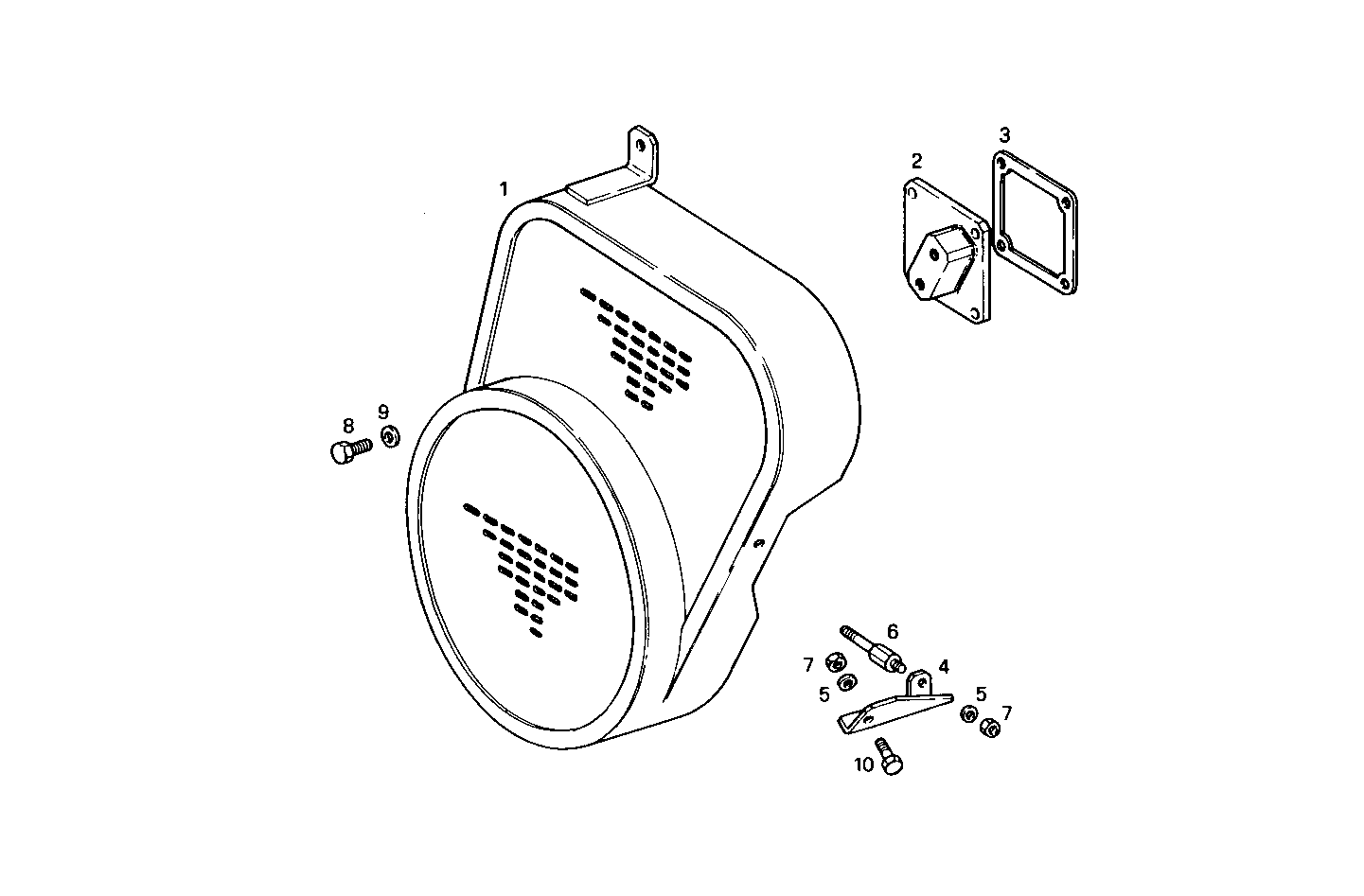

GUARD
8061SRi40.00 — 8061SRi40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8029703 | PROTECTION PROTECTION | 1 | |
| 2 | 8028090 | SUPPORT SUPPORT | 1 | |
| 3 | 500378759 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 8107877 | RETAINER RETAINER | 1 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 6 | 8029862 | SPACING BAR SPACING BAR | 1 | |
| 7 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17090074 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 16605424 | SCREW SCREW | 1 |
