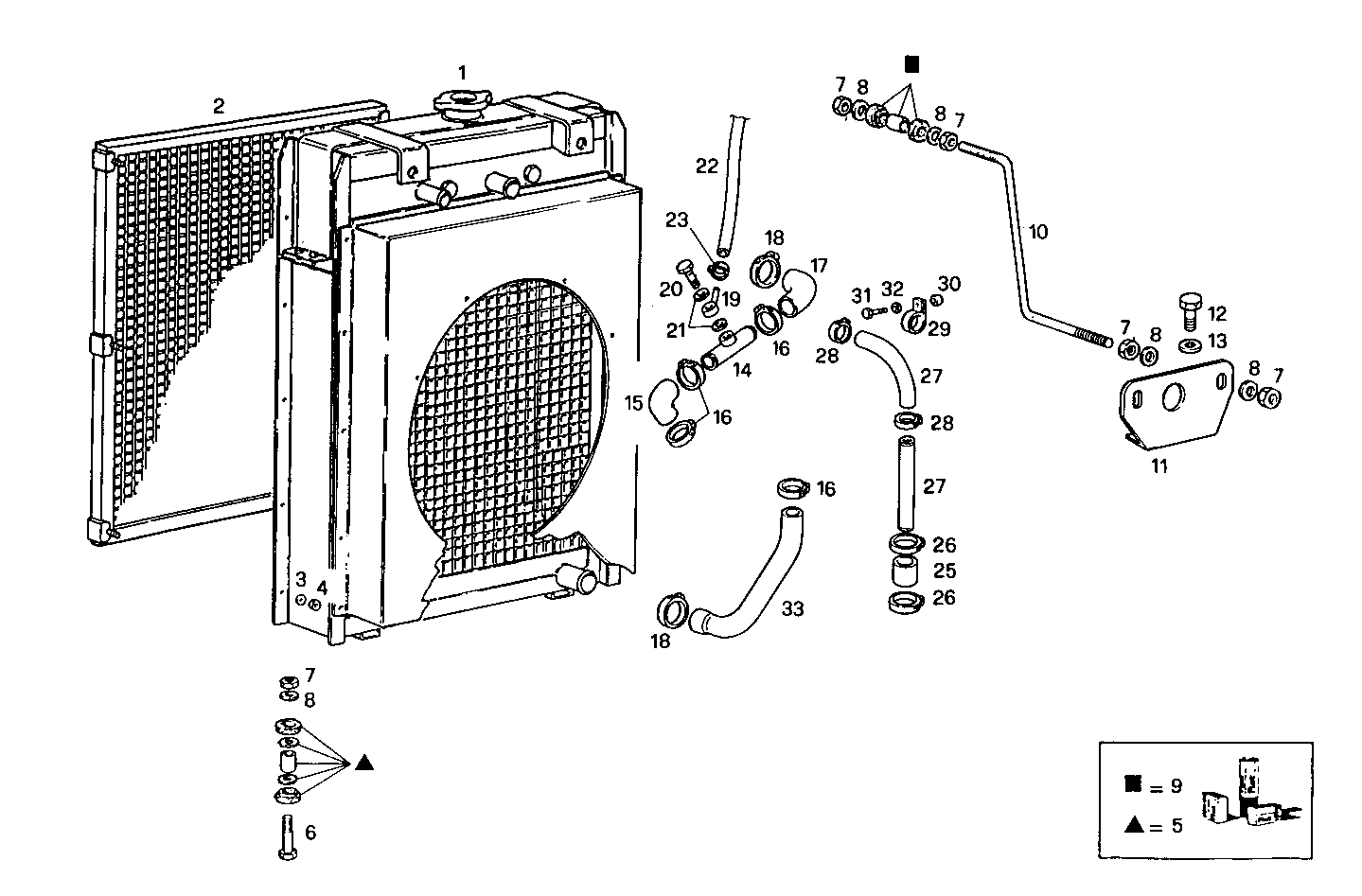

RADIATOR FOR SETTING TILL MAX POWER
8061SRi40.00 — 8061SRi40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107679 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8108066 | GRILLE GRILLE | 1 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 4 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 5 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 6 | 16610724 | SCREW SCREW | 2 | |
| 7 | 17038421 | HEXAGON NUT HEXAGON NUT | 10 | |
| 8 | 17091074 | WASHER WASHER | 10 | |
| 9 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 10 | 8031385 | TIE ROD TIE ROD | 2 | |
| 11 | 8031386 | RETAINER RETAINER | 1 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 8031388 | WATER PIPE WATER PIPE | 1 | |
| 15 | 4952453 | WATER HOSE WATER HOSE | 1 | |
| 16 | 17764891 | CLIP CLIP | 4 | |
| 17 | 4951318 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 18 | 17764991 | CLIP CLIP | 1 | |
| 19 | 98405463 | PIPE SOCKET PIPE SOCKET | 1 | |
| 20 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 21 | 4858606 | GASKET GASKET | 2 | |
| 22 | 19056687 | RUBBER HOSE RUBBER HOSE | 1 | |
| 23 | 18053991 | CLIP CLIP | 2 | |
| 24 | 8031387 | WATER PIPE WATER PIPE | 1 | |
| 25 | 61321610 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 26 | 17764691 | CLIP CLIP | 2 | |
| 27 | 8029471 | HOSE HOSE | 1 | |
| 28 | 17764591 | CLIP CLIP | 2 | |
| 29 | 4033229 | CLIP CLIP | 1 | |
| 30 | 4930712 | SPACING BAR SPACING BAR | 1 | |
| 31 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 32 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 33 | 8024991 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
