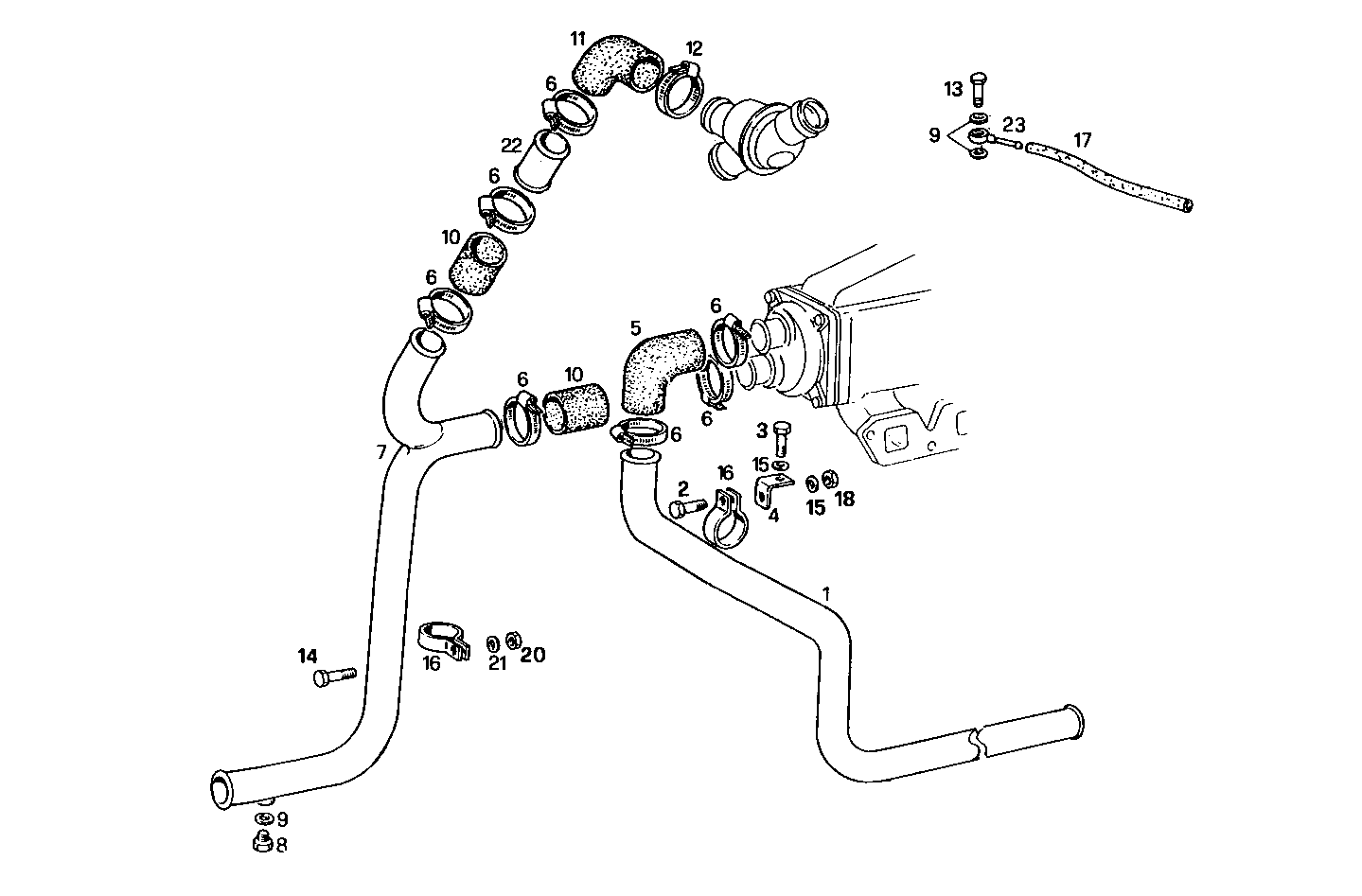

WATER LINES
8061SRi40.00 — 8061SRi40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8029521 | WATER PIPE WATER PIPE | 1 | |
| 2 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 3 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 8005646 | RETAINER RETAINER | 1 | |
| 5 | 8017516 | WATER HOSE WATER HOSE | 1 | |
| 6 | 17764791 | CLIP CLIP | 7 | |
| 7 | 8019644 | WATER PIPE WATER PIPE | 1 | |
| 8 | 16992111 | THREADED PLUG THREADED PLUG | 2 | |
| 9 | 4858606 | GASKET GASKET | 2 | |
| 10 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 11 | 4951429 | WATER HOSE WATER HOSE | 1 | |
| 12 | 17764891 | CLIP CLIP | 1 | |
| 13 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 14 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 16 | 8027280 | CLIP CLIP | 2 | |
| 17 | 19056687 | RUBBER HOSE RUBBER HOSE | 1 | |
| 18 | 17038121 | HEXAGON NUT HEXAGON NUT | 1 | |
| 19 | 17080174 | WASHER WASHER | 1 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 21 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 22 | 8019645 | WATER PIPE WATER PIPE | 1 | |
| 23 | 4627990 | BREATHER CONN. BREATHER CONN. | 1 |
