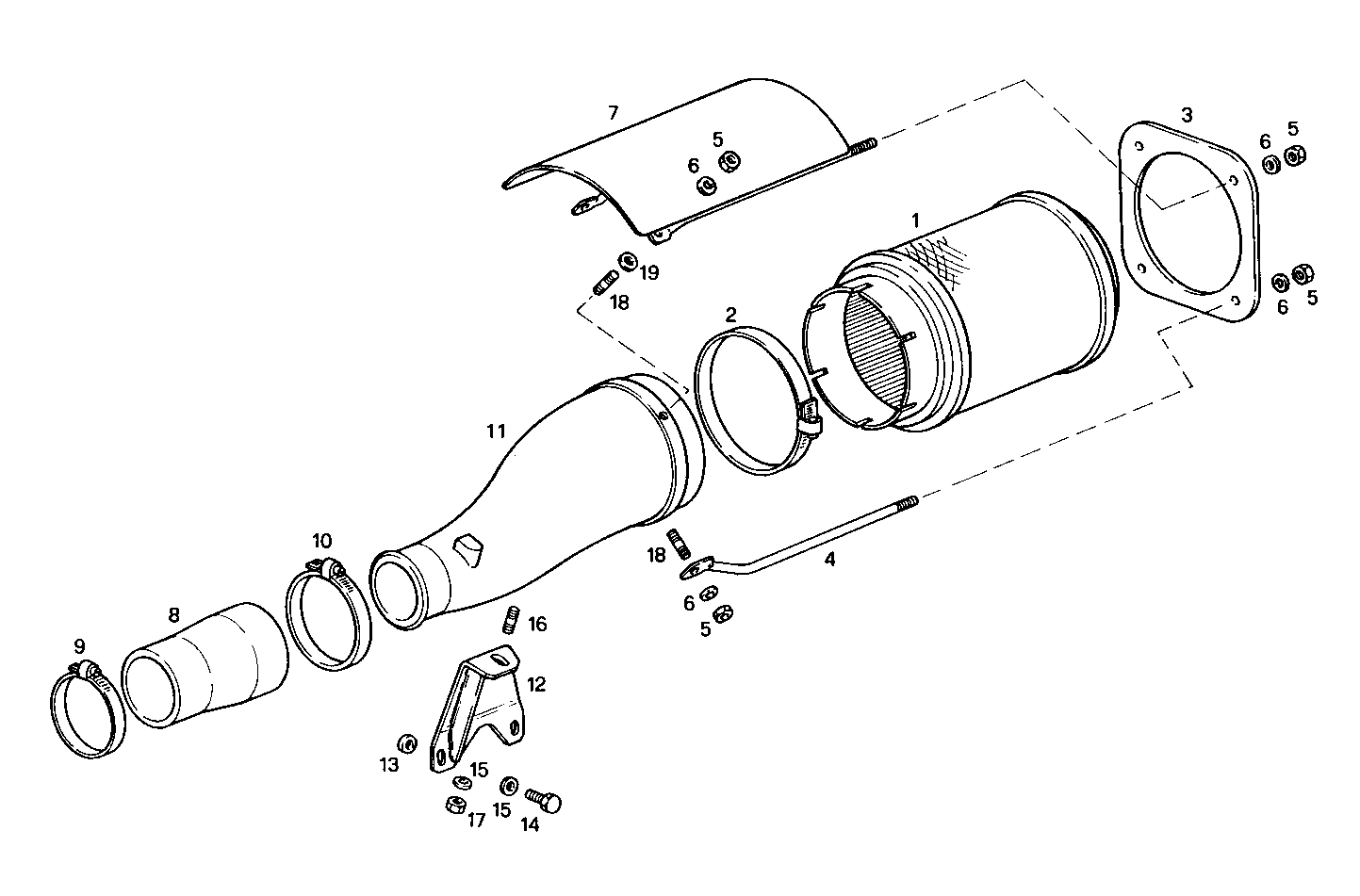

AIR CLEANER
8061SRi41.00 — 8061SRi41
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017271 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 17765891 | CLIP CLIP | 1 | |
| 3 | 8113633 | FLANGE FLANGE | 1 | |
| 4 | 8030435 | TIE ROD TIE ROD | 2 | |
| 5 | 17037821 | HEXAGON NUT HEXAGON NUT | 8 | |
| 6 | 17088474 | WASHER WASHER | 8 | |
| 7 | 8031389 | PROTECTION PROTECTION | 1 | |
| 8 | 8019166 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 17765191 | CLIP CLIP | 1 | |
| 10 | 17765291 | CLIP CLIP | 1 | |
| 11 | 8030052 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 12 | 8030079 | RETAINER RETAINER | 1 | |
| 13 | 16665604 | WASHER WASHER | 2 | |
| 14 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 17089774 | SPRING WASHER SPRING WASHER | 3 | |
| 16 | 16729224 | STUD STUD | 1 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 18 | 16727624 | STUD STUD | 4 | |
| 19 | 98428276 | SPACING BAR SPACING BAR | 2 |
