PRECISION ADJUSTMENT ACCELERATOR
8061SRi41.00 — 8061SRi41

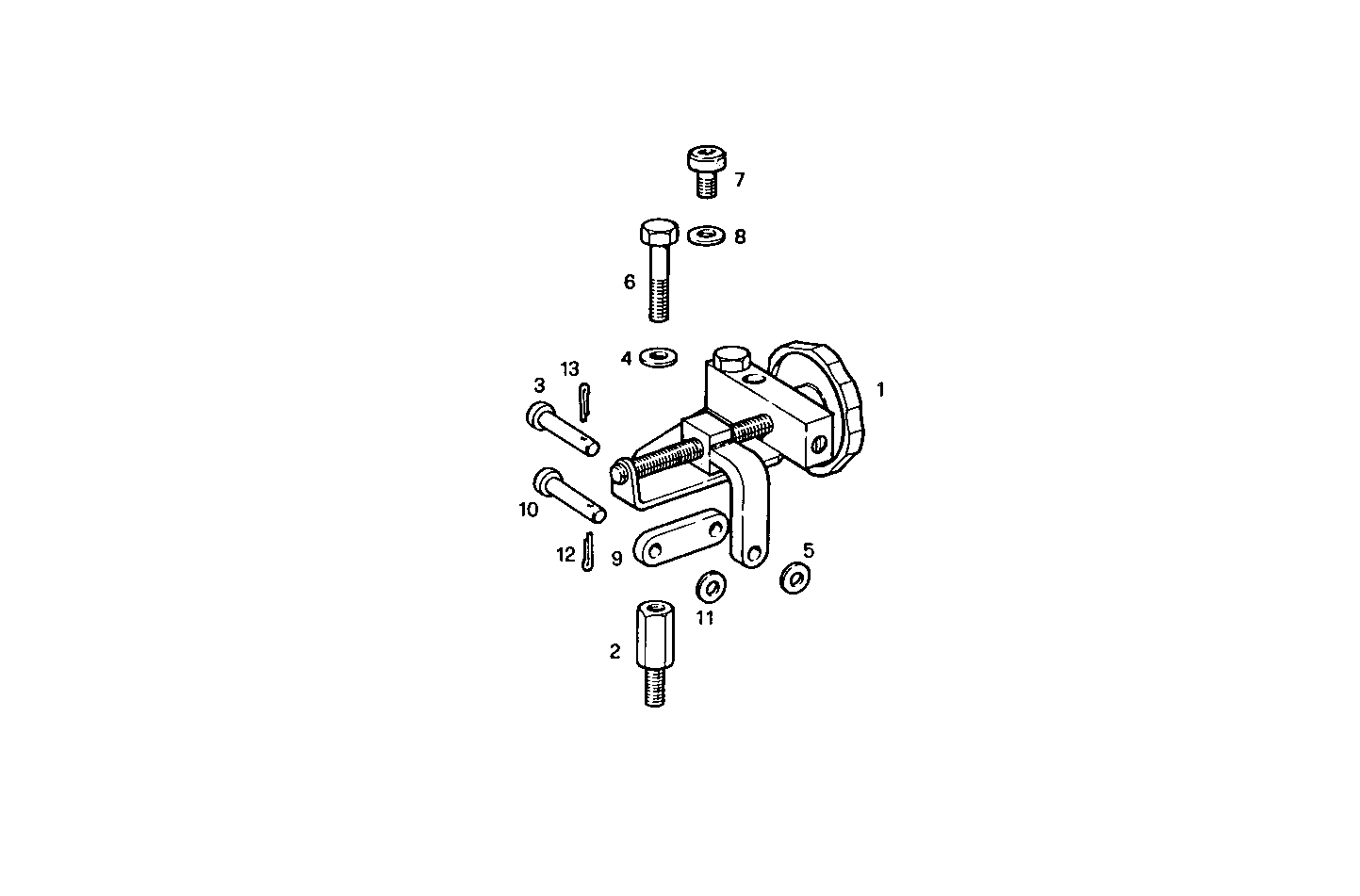

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8031366 | CONTROL ASSEMBLY CONTROL ASSEMBLY | 1 | |
| 2 | 8012878 | SPACING BAR SPACING BAR | 2 | |
| 3 | 17718511 | PIN PIN | 1 | |
| 4 | 17088474 | WASHER WASHER | 2 | |
| 5 | 17094604 | WASHER WASHER | 1 | |
| 6 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17133114 | SCREW SCREW | 1 | |
| 8 | 10569279 | WASHER WASHER | 1 | |
| 9 | 8031359 | CLEVIS CLEVIS | 1 | |
| 10 | 17718411 | PIN PIN | 1 | |
| 11 | 17094504 | WASHER WASHER | 1 | |
| 12 | 16850301 | SPLIT PIN SPLIT PIN | 1 | |
| 13 | 16852501 | SPLIT PIN SPLIT PIN | 1 |
