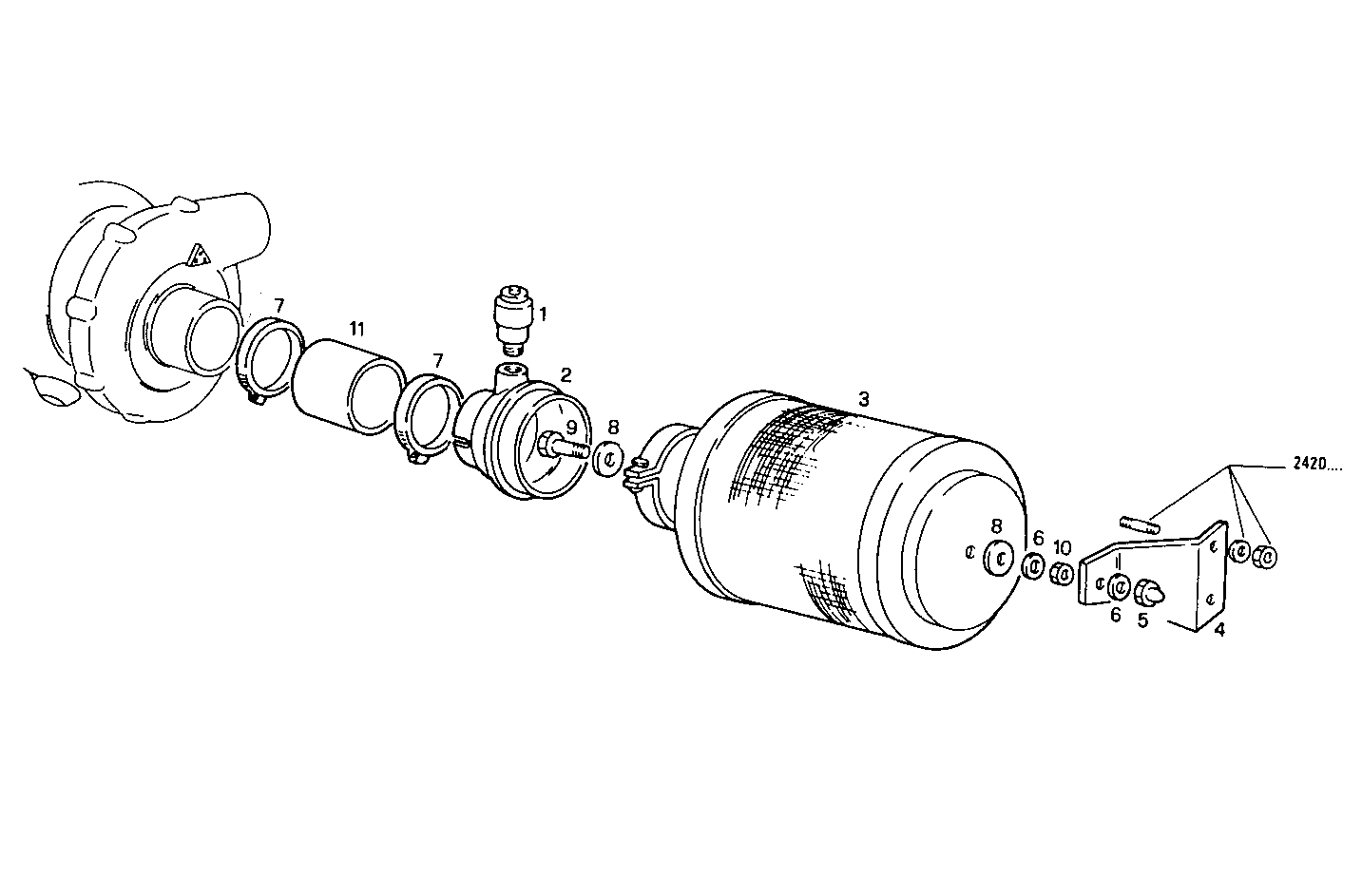

AIR CLEANER
8061SRM24.00 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4936137 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 2 | 4936788 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 3 | 8113000 | AIR CLEANER AIR CLEANER | 1 | |
| 4 | 8113343 | RETAINER RETAINER | 1 | |
| 5 | 8101714 | NUT NUT | 1 | |
| 6 | 11193879 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 12177290 | CLIP CLIP | 2 | |
| 8 | 12644301 | WASHER WASHER | 2 | |
| 9 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 16102311 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 4918897 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
