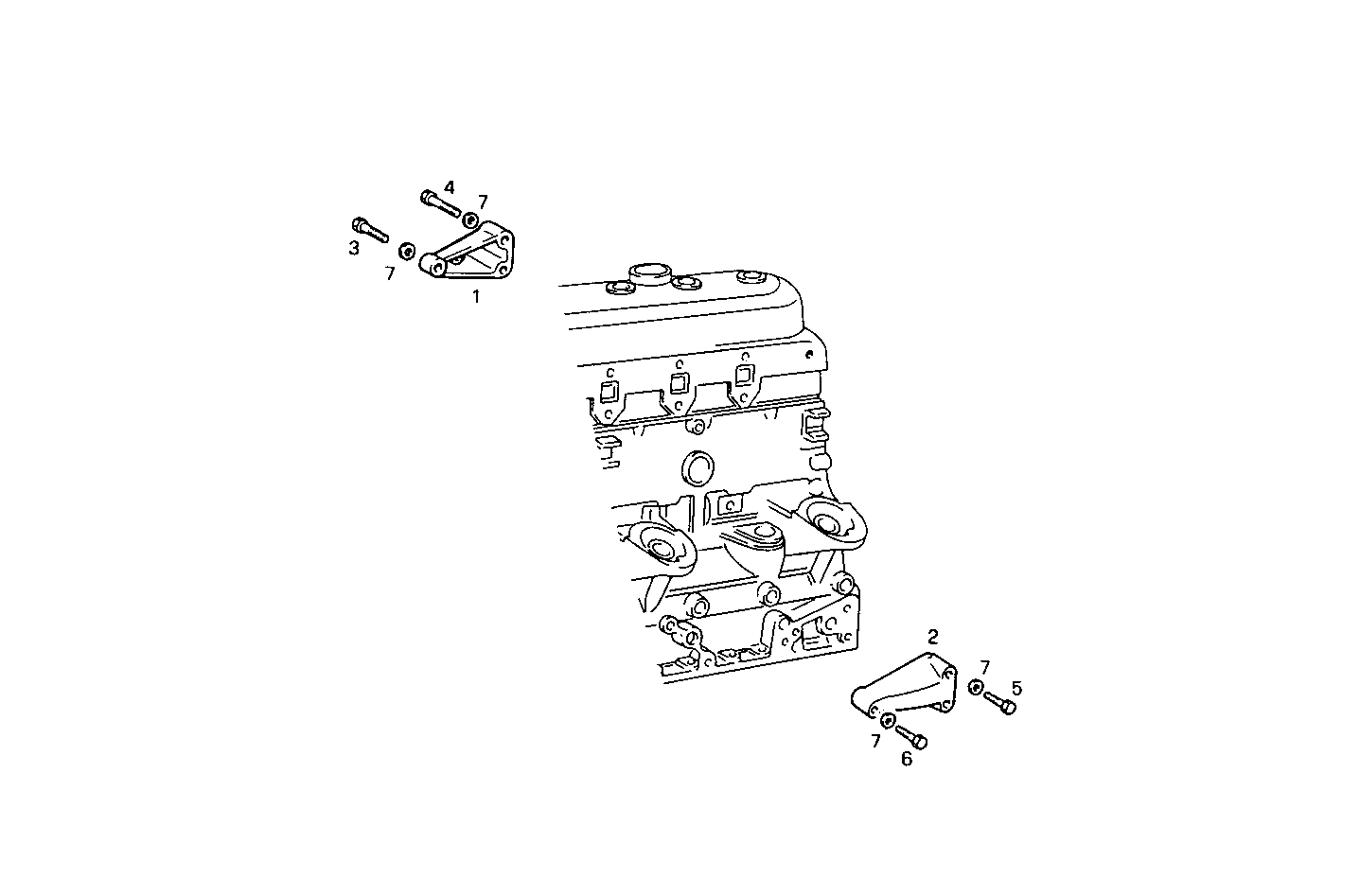

ENGINE SUSPENSION
8061SRM24.00 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4601988 | BRACKET BRACKET | 1 | |
| 2 | 4776413 | BRACKET BRACKET | 1 | |
| 3 | 15541821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 15541221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 15541521 | SCREW SCREW | 2 | |
| 6 | 15540821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 4585990 | SUPPORT RING SUPPORT RING | 6 |
