MARINE GEAR

8061SRM24.00 — 8061SRM24

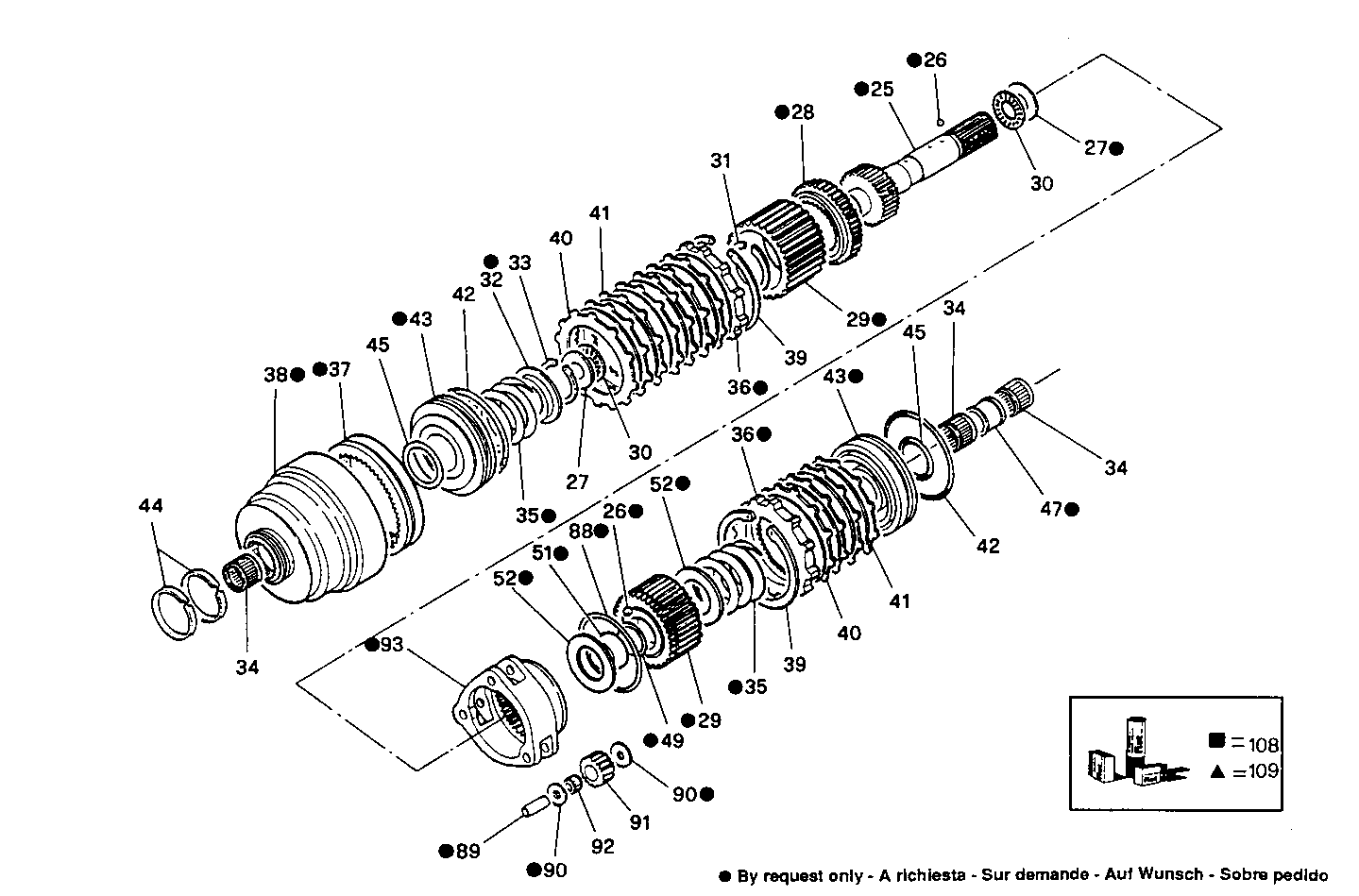

Parts List

#	Part No	Name / Description	Qty
25	T5174001-02-025	SHAFT SHAFT	1
26	T5174001-02-026	BALL BALL	2
27	T5174001-02-027	WASHER WASHER	2
28	T5174001-02-028	GEAR GEAR	1
29	T5174001-02-029	HUB HUB	1
30	8091977	DRIVE BEARING DRIVE BEARING	2
31	8091978	CIRCLIP CIRCLIP	1
32	T5174001-02-032	RING RING	1
33	8091979	CIRCLIP CIRCLIP	1
34	8091980	DRIVE BEARING DRIVE BEARING	3
35	T5174001-02-035	SPRING SPRING	2
36	T5174001-02-036	CIRCLIP CIRCLIP	2
37	T5174001-02-037	GEAR GEAR	1
38	T5174001-02-038	COUPLING BELL COUPLING BELL	1
39	8091981	CIRCLIP CIRCLIP	2
40	8091982	RING RING	7
41	8091983	RING RING	7
42	8091984	O-RING O-RING	1
43	T5174001-02-043	CONTROL PISTON CONTROL PISTON	2
44	8091985	O-RING O-RING	2
45	8091986	O-RING O-RING	1
47	T5174001-02-047	SPACING BAR SPACING BAR	1
49	T5174001-02-049	RING RING	1
51	T5174001-02-051	COVER COVER	1
52	T5174001-02-052	WASHER WASHER	2
88	T5174001-02-088	RING RING	1
89	T5174001-02-089	PIN PIN	3
90	T5174001-02-090	WASHER WASHER	6
91	T5174001-02-091	GEAR GEAR	3
92	8091995	DRIVE BEARING DRIVE BEARING	3
93	T5174001-02-093	FLANGE FLANGE	1
108	8091998	KIT-GEAR BOX KIT-GEAR BOX	1
109	8091999	KIT-GEAR BOX KIT-GEAR BOX	1
