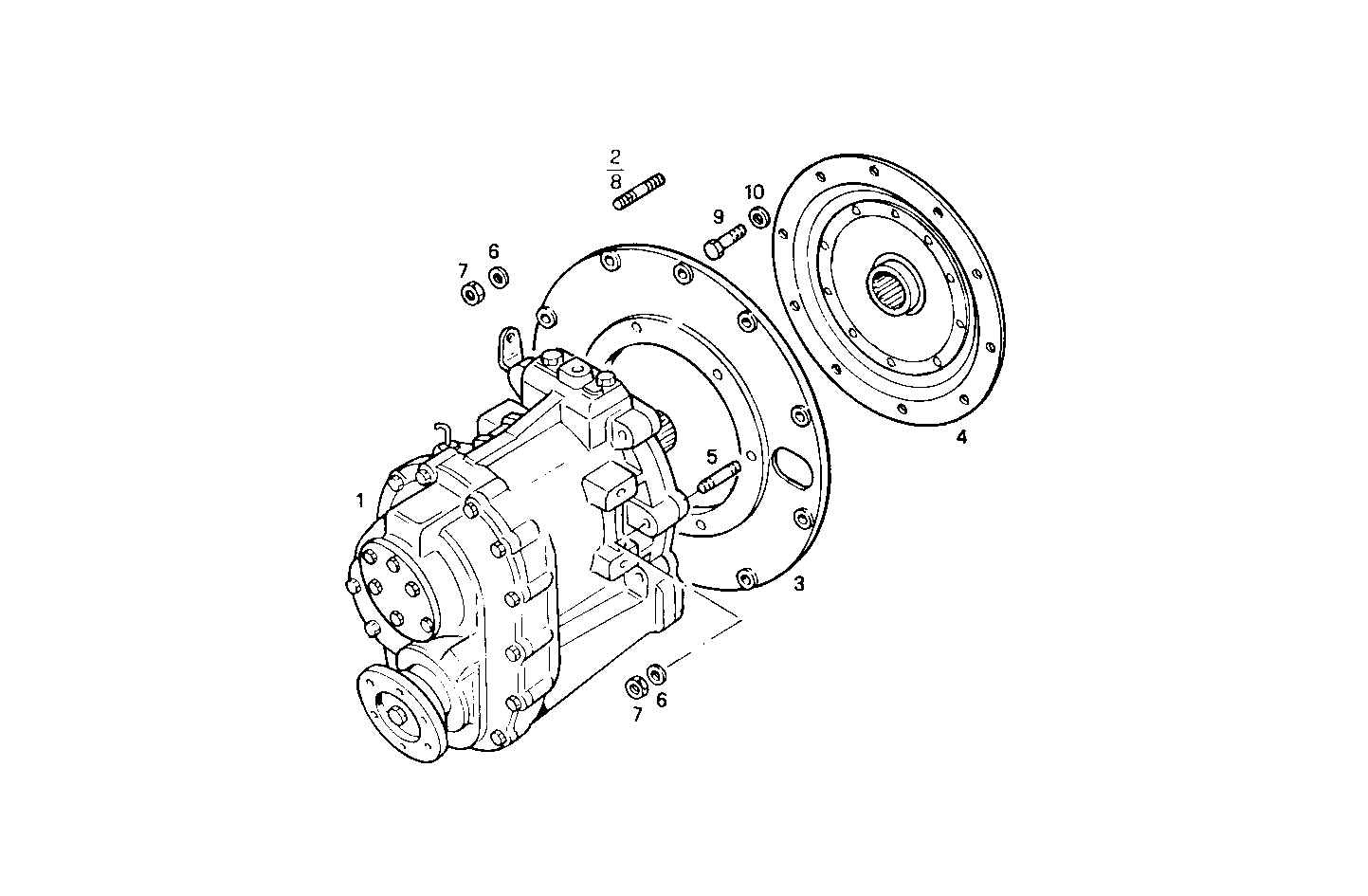

MARINE GEAR ZF-MPM IRM 50 A2
8061SRM24.00 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006174 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 13449821 | STUD STUD | 2 | |
| 3 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 8113696 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 5 | 13547521 | STUD STUD | 6 | |
| 6 | 11198379 | SPRING WASHER SPRING WASHER | 18 | |
| 7 | 12164711 | HEXAGON NUT HEXAGON NUT | 18 | |
| 8 | 13449721 | STUD STUD | 10 | |
| 9 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 10 | 10571879 | WASHER WASHER | 8 |
