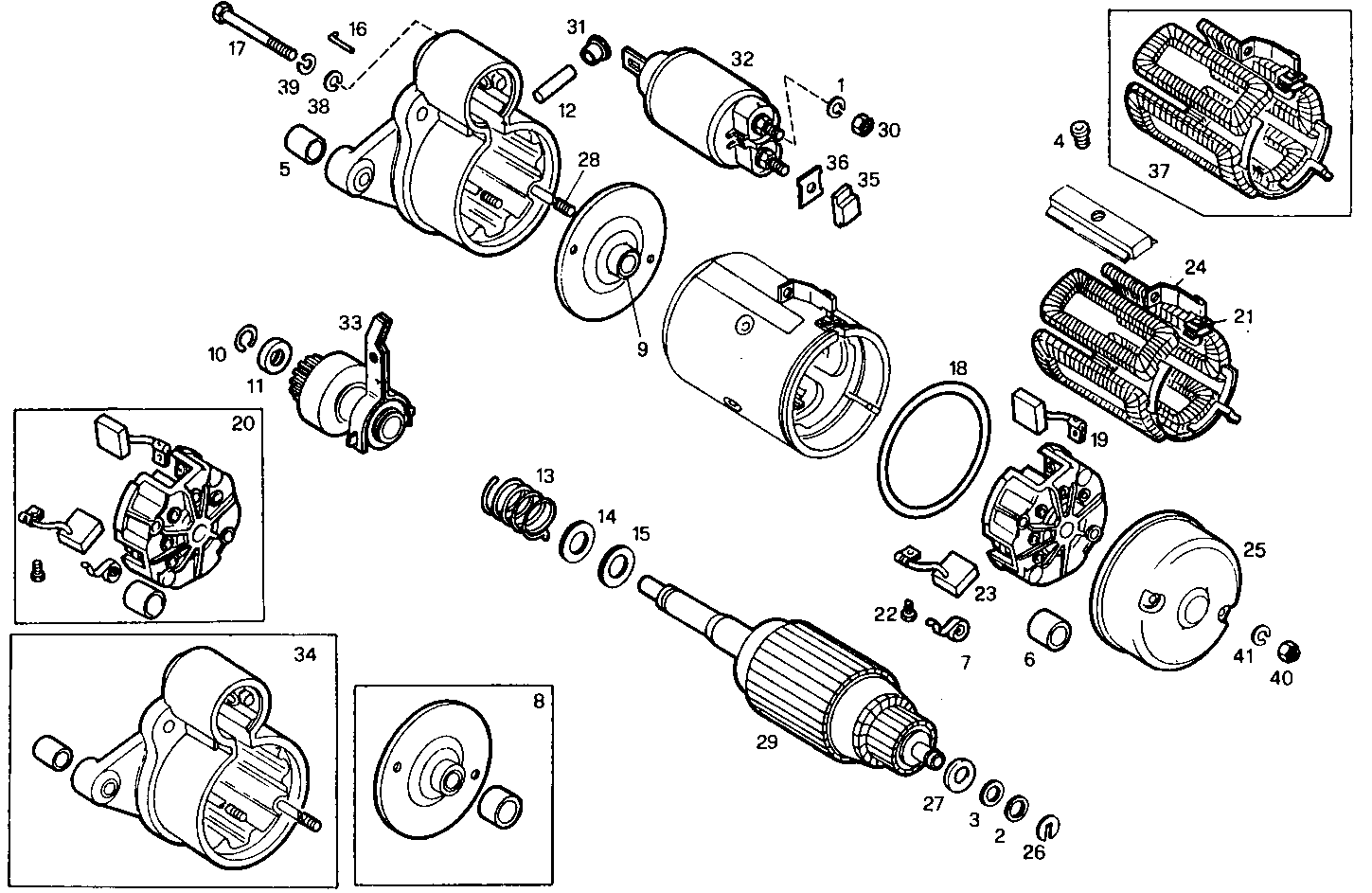

STARTER MOTOR (COMPONENTS)
8061SRM24.00 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 9902481 | SPRING WASHER SPRING WASHER | 2 | |
| 2 | 9909170 | WASHER WASHER | 1 | |
| 3 | 9909440 | WASHER WASHER | 1 | |
| 4 | 9909452 | SCREW SCREW | 4 | |
| 5 | 9927787 | BUSH BUSH | 1 | |
| 6 | 9927789 | BUSH BUSH | 1 | |
| 7 | 9927790 | SPRING SPRING | 4 | |
| 8 | 9927795 | STARTER SUPPORT STARTER SUPPORT | 1 | |
| 9 | 9927796 | BUSH BUSH | 1 | |
| 10 | 9927797 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 9927798 | RING RING | 1 | |
| 12 | 9927799 | PIN PIN | 1 | |
| 13 | 9927800 | SPRING SPRING | 1 | |
| 14 | 9927801 | INSULATING WASHER INSULATING WASHER | 1 | |
| 15 | 9927802 | INSULATING WASHER INSULATING WASHER | 1 | |
| 16 | 9927806 | PIN PIN | 1 | |
| 17 | 9927813 | SCREW SCREW | 3 | |
| 18 | 9927815 | O-RING O-RING | 1 | |
| 19 | 9928448 | BRUSH BRUSH | 2 | |
| 20 | 9928451 | SUPPORT SUPPORT | 1 | |
| 21 | 9928452 | RUBBER RING RUBBER RING | 1 | |
| 22 | 9928457 | SCREW SCREW | 4 | |
| 23 | 9929080 | BRUSH BRUSH | 2 | |
| 24 | 9929083 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 9933228 | COVER COVER | 1 | |
| 26 | 9933229 | SPRING WASHER SPRING WASHER | 1 | |
| 27 | 9933234 | WASHER WASHER | 1 | |
| 28 | 9933235 | TIE ROD TIE ROD | 2 | |
| 29 | 9933236 | STARTER WINDING STARTER WINDING | 1 | |
| 30 | 9934288 | NUT NUT | 2 | |
| 31 | 9956559 | PLUG PLUG | 1 | |
| 32 | 9957705 | SOLENOID SOLENOID | 1 | |
| 33 | 9957707 | SWITCHGEAR SWITCHGEAR | 1 | |
| 34 | 9957708 | SUPPORT SUPPORT | 1 | |
| 35 | 9957709 | PLATE PLATE | 1 | |
| 36 | 9957710 | DOWEL DOWEL | 1 | |
| 37 | 9957711 | STARTER WINDING STARTER WINDING | 1 | |
| 38 | 10519301 | WASHER WASHER | 3 | |
| 39 | 11195471 | SPRING WASHER SPRING WASHER | 7 | |
| 40 | 12574214 | HEXAGON NUT HEXAGON NUT | 2 | |
| 41 | 13550201 | WASHER WASHER | 2 |
