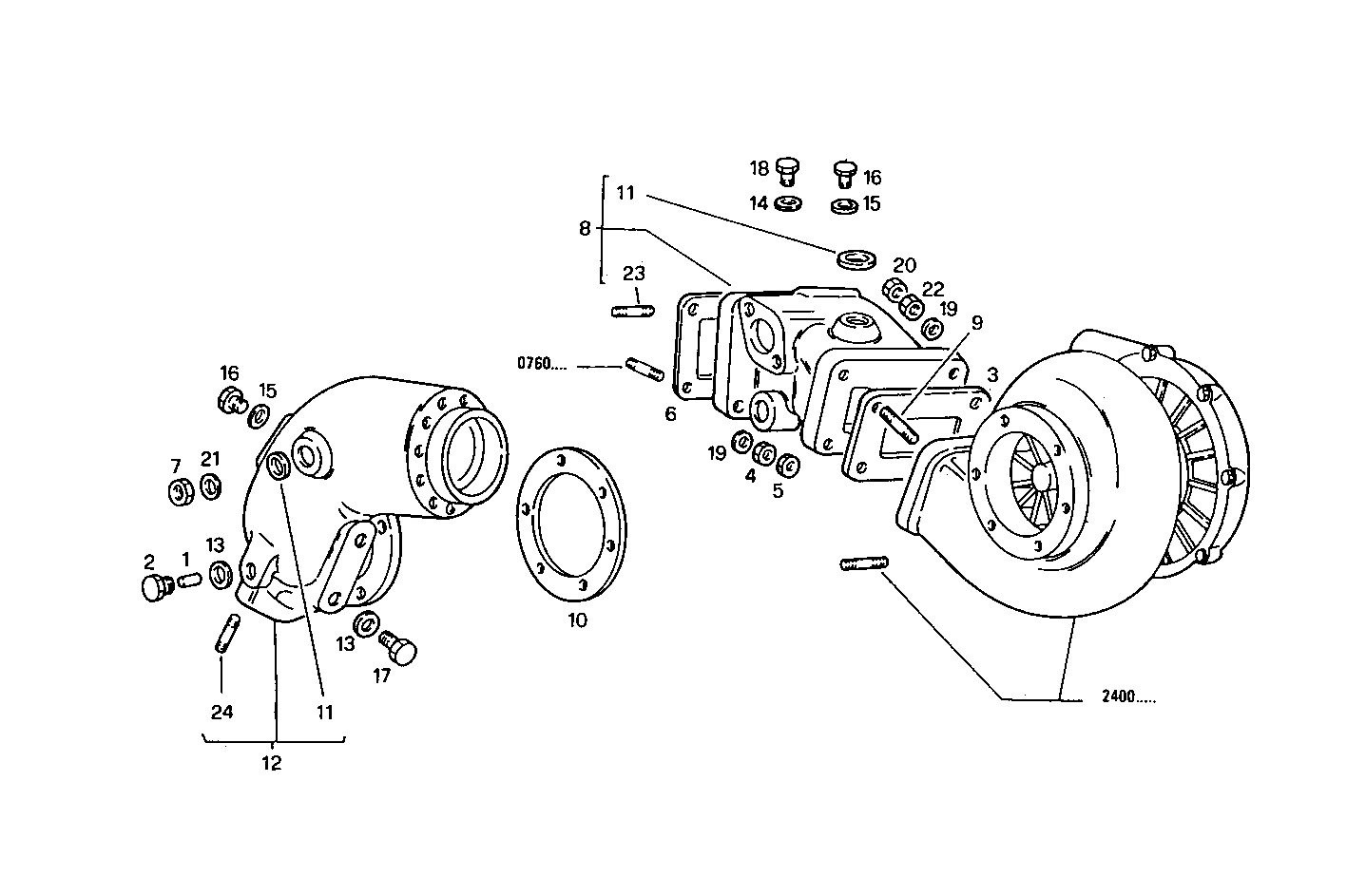

SUPERCHARGING LINES
8061SRM24.00 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 2 | 4917793 | PLUG PLUG | 1 | |
| 3 | 4632123 | GASKET GASKET | 1 | |
| 4 | 4927248 | NUT NUT | 4 | |
| 5 | 8100961 | NUT NUT | 4 | |
| 6 | 8009603 | GASKET GASKET | 1 | |
| 7 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 8 | 8100211 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 9 | 8100212 | STUD STUD | 4 | |
| 10 | 8107311 | GASKET GASKET | 1 | |
| 11 | 14282470 | LOCK PLUG LOCK PLUG | 6 | |
| 12 | 8113434 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 13 | 10259960 | WASHER WASHER | 2 | |
| 14 | 10257060 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 10298460 | SEAL GASKET SEAL GASKET | 2 | |
| 16 | 10300540 | PLUG PLUG | 2 | |
| 17 | 10300840 | LOCK PLUG LOCK PLUG | 1 | |
| 18 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 19 | 10730501 | WASHER WASHER | 8 | |
| 20 | 10791021 | HEXAGON NUT HEXAGON NUT | 4 | |
| 21 | 11194071 | WASHER WASHER | 6 | |
| 22 | 12164721 | HEXAGON NUT HEXAGON NUT | 4 | |
| 23 | 13516821 | STUD STUD | 2 | |
| 24 | 13517021 | STUD STUD | 2 |
