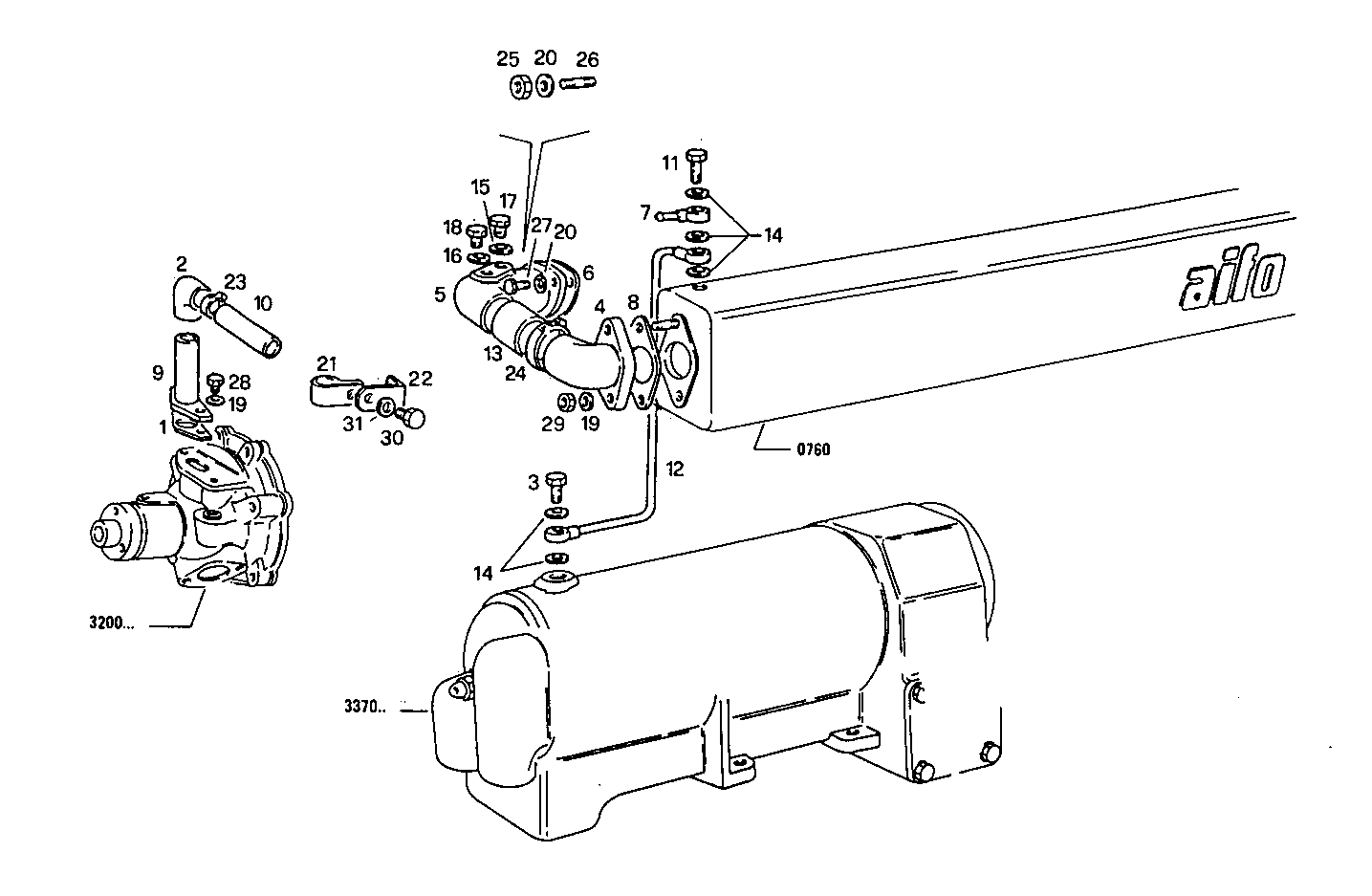

WATER LINES
8061SRM24.00 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4767560 | GASKET GASKET | 1 | |
| 2 | 4930352 | WATER HOSE WATER HOSE | 1 | |
| 3 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 4 | 4919235 | WATER PIPE WATER PIPE | 1 | |
| 5 | 4919685 | WATER PIPE WATER PIPE | 1 | |
| 6 | 4770933 | GASKET GASKET | 1 | |
| 7 | 4636689 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 8 | 4918835 | GASKET GASKET | 1 | |
| 9 | 8113806 | WATER PIPE WATER PIPE | 1 | |
| 10 | 8113951 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8113807 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8108307 | WATER PIPE WATER PIPE | 1 | |
| 13 | 10136587 | WATER HOSE WATER HOSE | 1 | |
| 14 | 10298460 | SEAL GASKET SEAL GASKET | 5 | |
| 15 | 10278660 | SEAL GASKET SEAL GASKET | 1 | |
| 16 | 10279560 | SEAL GASKET SEAL GASKET | 1 | |
| 17 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 18 | 10305140 | LOCK PLUG LOCK PLUG | 1 | |
| 19 | 11194079 | SPRING WASHER SPRING WASHER | 4 | |
| 20 | 11198371 | SPRING WASHER SPRING WASHER | 3 | |
| 21 | 4936741 | CLIP CLIP | 1 | |
| 22 | 8102227 | RETAINER RETAINER | 1 | |
| 23 | 17764592 | CLIP CLIP | 2 | |
| 24 | 12177090 | CLIP CLIP | 2 | |
| 25 | 12164711 | HEXAGON NUT HEXAGON NUT | 1 | |
| 26 | 13449521 | STUD STUD | 1 | |
| 27 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 28 | 16043124 | SCREW SCREW | 2 | |
| 29 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 30 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 31 | 17088474 | WASHER WASHER | 1 |
