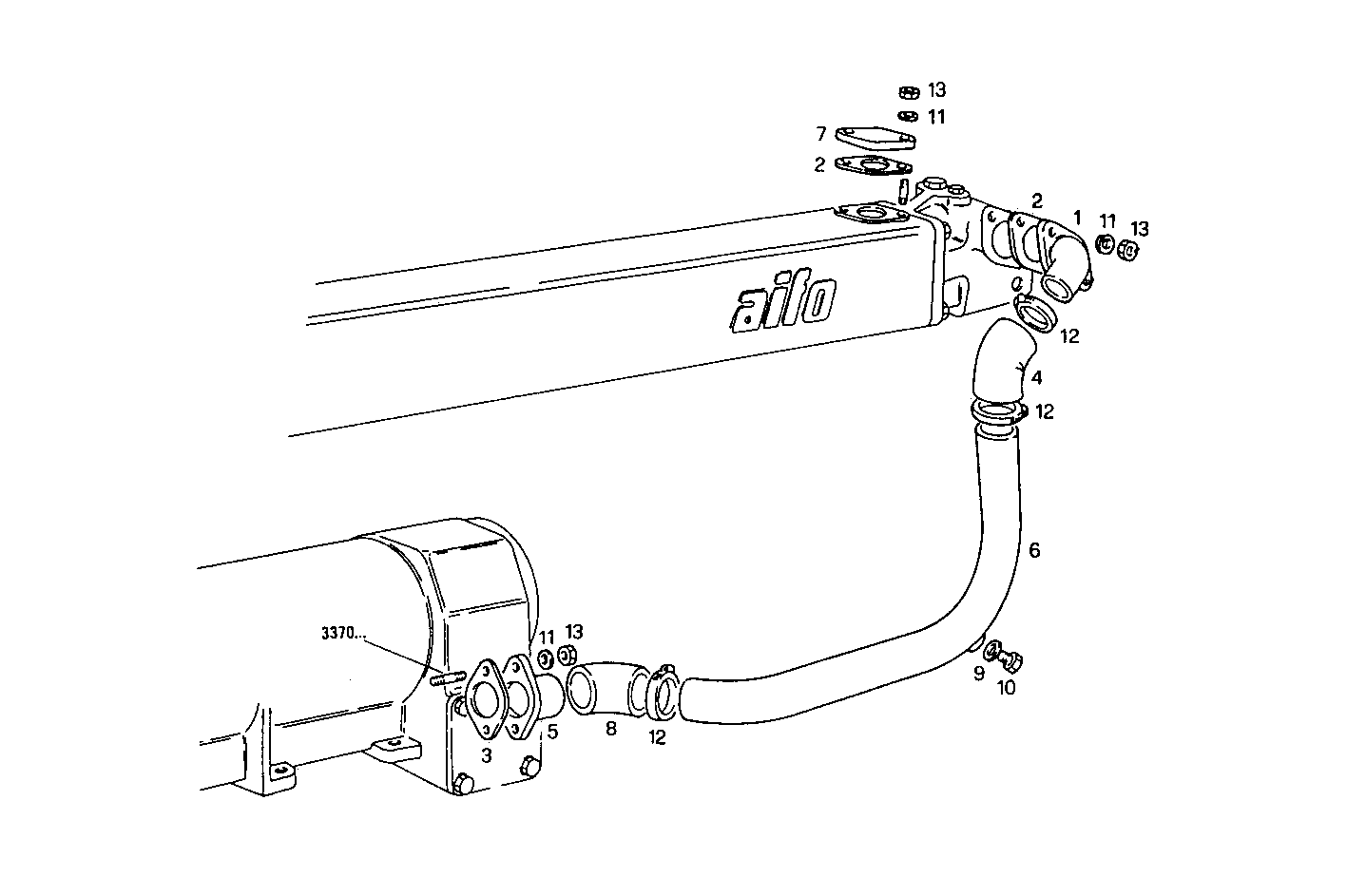

WATER LINES
8061SRM24.00 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4919235 | WATER PIPE WATER PIPE | 1 | |
| 2 | 4918835 | GASKET GASKET | 2 | |
| 3 | 4599562 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4604779 | WATER HOSE WATER HOSE | 1 | |
| 5 | 8100081 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8108306 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8100154 | COVER COVER | 1 | |
| 8 | 10136187 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 9 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 11903040 | LOCK PLUG LOCK PLUG | 1 | |
| 11 | 11194079 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 12177090 | CLIP CLIP | 4 | |
| 13 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 |
