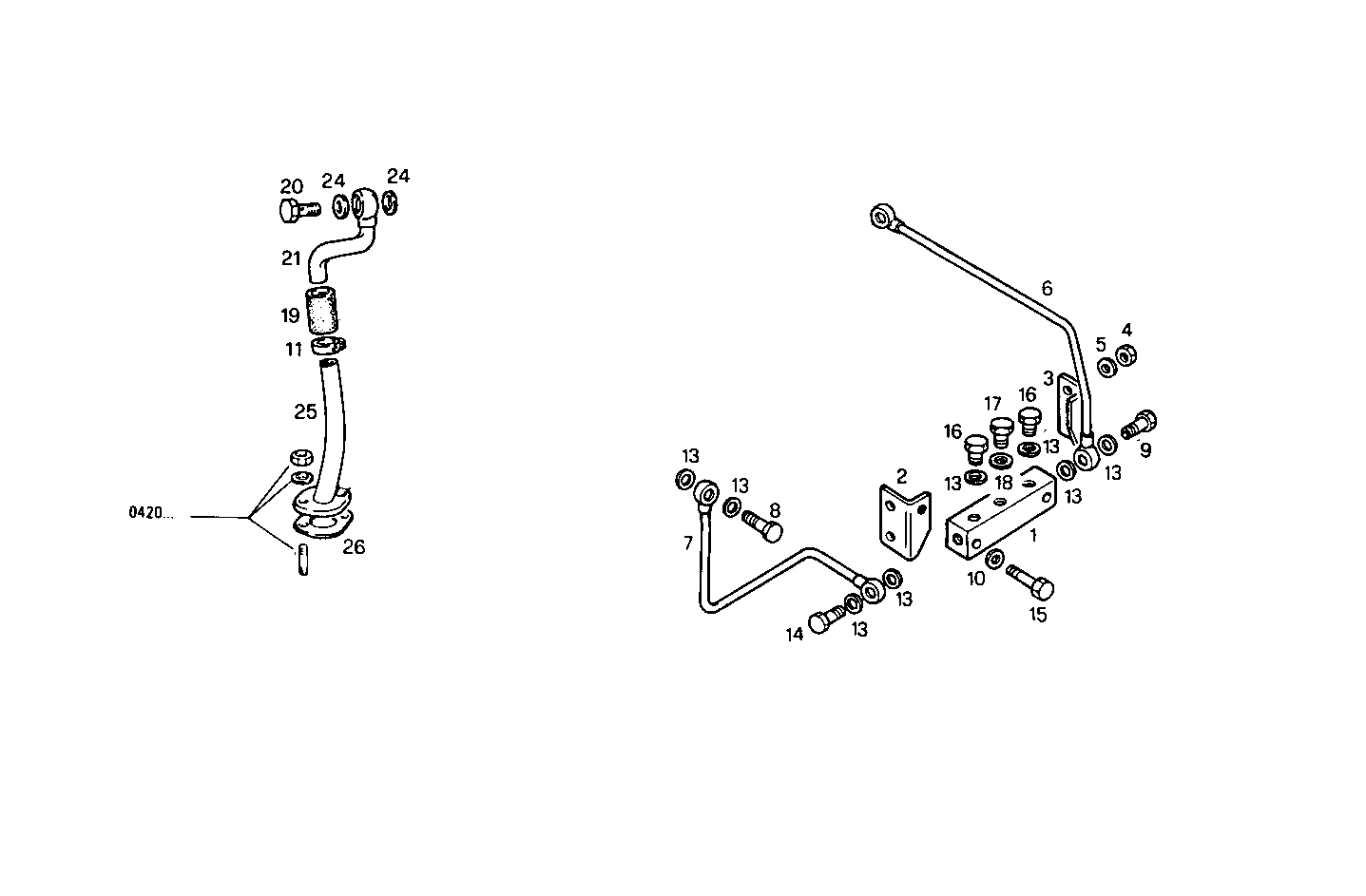

LUBE OIL LINES
8061SRM24.10 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8100229 | CHOCK CHOCK | 1 | |
| 2 | 8100230 | RETAINER RETAINER | 1 | |
| 3 | 8100231 | RETAINER RETAINER | 1 | |
| 4 | 15896211 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17088474 | WASHER WASHER | 4 | |
| 6 | 8100232 | OIL LINE OIL LINE | 1 | |
| 7 | 8108290 | OIL LINE OIL LINE | 1 | |
| 8 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 11903040 | LOCK PLUG LOCK PLUG | 2 | |
| 10 | 11194079 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 12179790 | CLIP CLIP | 2 | |
| 13 | 10284460 | SEAL GASKET SEAL GASKET | 8 | |
| 14 | 11903817 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 15 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 11903040 | LOCK PLUG LOCK PLUG | 2 | |
| 17 | 10300540 | PLUG PLUG | 1 | |
| 18 | 10298460 | SEAL GASKET SEAL GASKET | 1 | |
| 19 | 4935362 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 20 | 4935361 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 21 | 8113558 | OIL LINE OIL LINE | 1 | |
| 24 | 10260160 | SEAL GASKET SEAL GASKET | 2 | |
| 25 | 8113559 | INJECTION LINE INJECTION LINE | 1 | |
| 26 | 4599562 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 |
