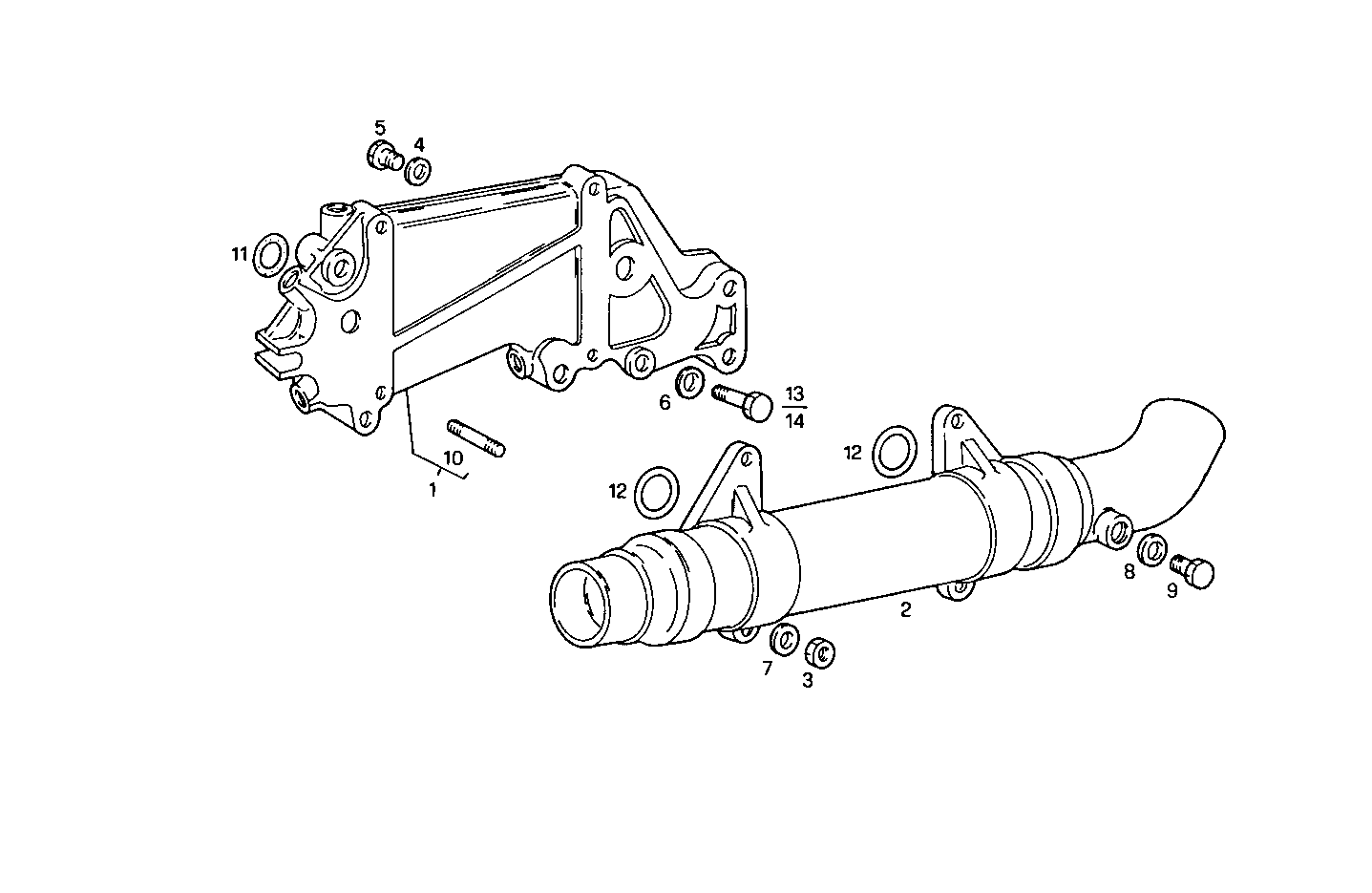

OIL - WATER HEAT EXCHANGER
8061SRM24.10 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108295 | SUPPORT SUPPORT | 1 | |
| 2 | 4936717 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 3 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 4 | 10263160 | SEAL GASKET SEAL GASKET | 4 | |
| 5 | 10273111 | LOCK PLUG LOCK PLUG | 4 | |
| 6 | 11198371 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 11194079 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 11903040 | LOCK PLUG LOCK PLUG | 1 | |
| 10 | 13543321 | STUD STUD | 5 | |
| 11 | 14457481 | O-RING O-RING | 2 | |
| 12 | 14457581 | O-RING O-RING | 2 | |
| 13 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 11306921 | SCREW SCREW | 1 |
