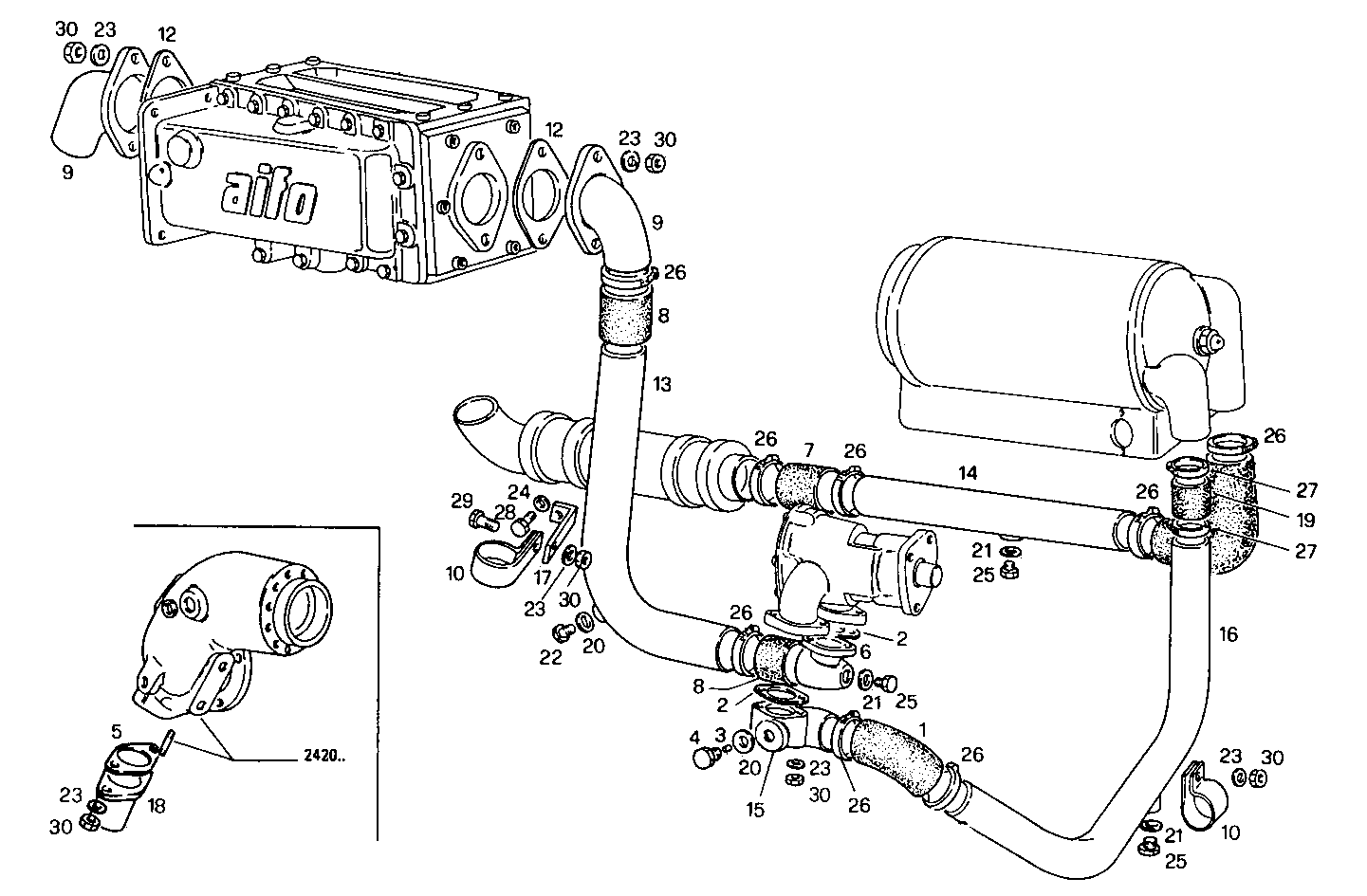

SEA WATER LINES
8061SRM24.10 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4604779 | WATER HOSE WATER HOSE | 1 | |
| 2 | 8008735 | GASKET GASKET | 2 | |
| 3 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 4 | 4917793 | PLUG PLUG | 1 | |
| 5 | 8008755 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4927929 | WATER PIPE WATER PIPE | 1 | |
| 7 | 4927830 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 8 | 4934627 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 9 | 4936734 | WATER PIPE WATER PIPE | 2 | |
| 10 | 4936741 | CLIP CLIP | 2 | |
| 11 | 4936760 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 4936793 | GASKET GASKET | 2 | |
| 13 | 8100235 | WATER PIPE WATER PIPE | 1 | |
| 14 | 8100264 | WATER PIPE WATER PIPE | 1 | |
| 15 | 8101084 | WATER PIPE WATER PIPE | 1 | |
| 16 | 8101334 | WATER PIPE WATER PIPE | 1 | |
| 17 | 8101336 | RETAINER RETAINER | 1 | |
| 18 | 8112744 | WATER PIPE WATER PIPE | 1 | |
| 19 | 8813238 | WATER HOSE WATER HOSE | 1 | |
| 20 | 10259960 | WASHER WASHER | 2 | |
| 21 | 10284460 | SEAL GASKET SEAL GASKET | 3 | |
| 22 | 10300840 | LOCK PLUG LOCK PLUG | 1 | |
| 23 | 11194079 | SPRING WASHER SPRING WASHER | 12 | |
| 24 | 11198579 | SPRING WASHER SPRING WASHER | 1 | |
| 25 | 11903040 | LOCK PLUG LOCK PLUG | 3 | |
| 26 | 12177090 | CLIP CLIP | 10 | |
| 27 | 17765093 | CLIP CLIP | 2 | |
| 28 | 15970421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 29 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 30 | 17037931 | HEXAGON NUT HEXAGON NUT | 12 |
