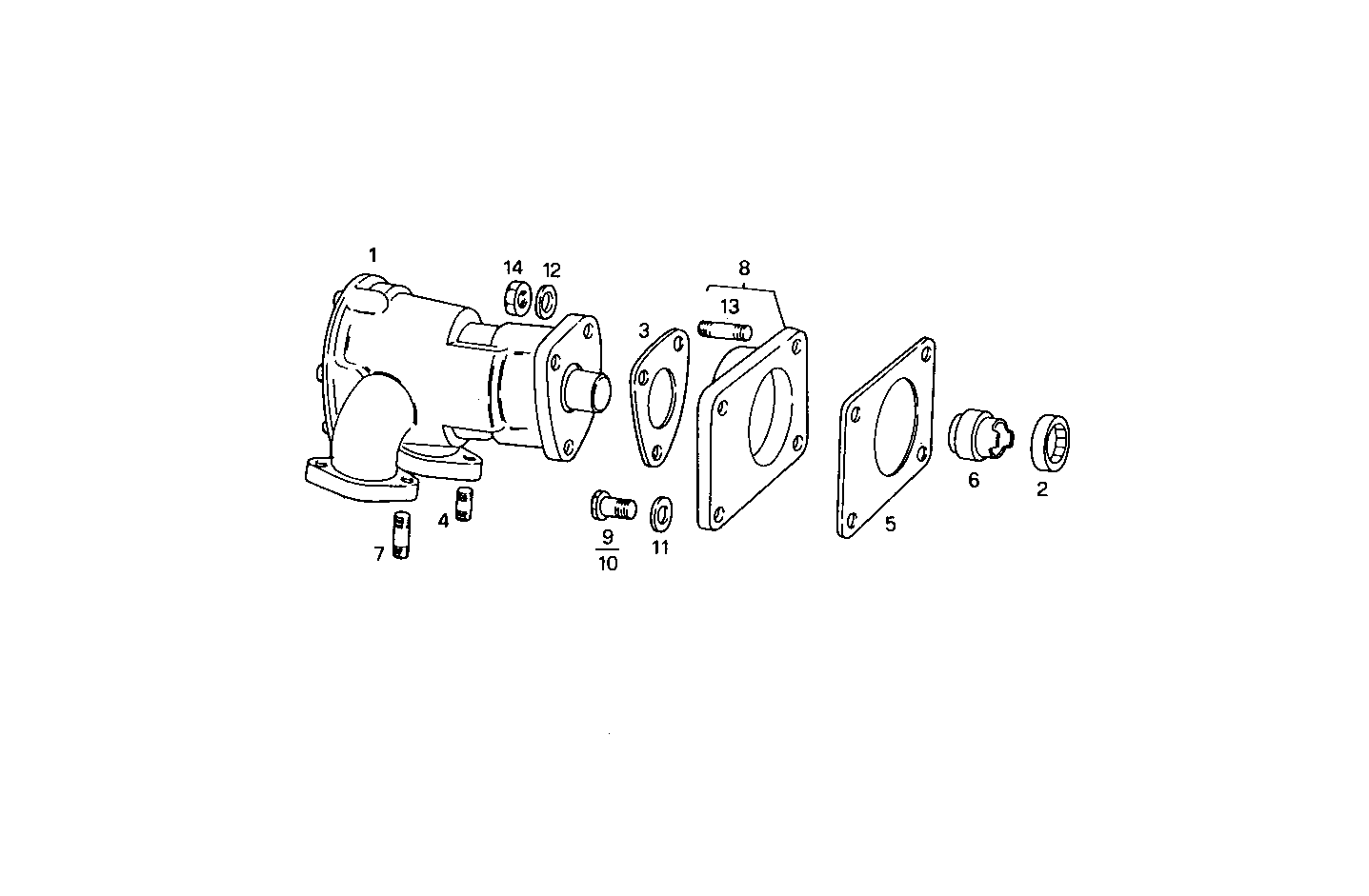

SEA WATER PUMP
8061SRM24.10 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4912783 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 2 | 4621358 | RING RING | 1 | |
| 3 | 8008734 | GASKET GASKET | 1 | |
| 4 | 4910007 | STUD STUD | 2 | |
| 5 | 4850986 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4934315 | COUPLER COUPLER | 1 | |
| 7 | 8101122 | STUD STUD | 2 | |
| 8 | 8101337 | SUPPORT SUPPORT | 1 | |
| 9 | 10902421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 10902621 | SCREW SCREW | 2 | |
| 11 | 11197779 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 11194079 | SPRING WASHER SPRING WASHER | 3 | |
| 13 | 13516821 | STUD STUD | 3 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 |
