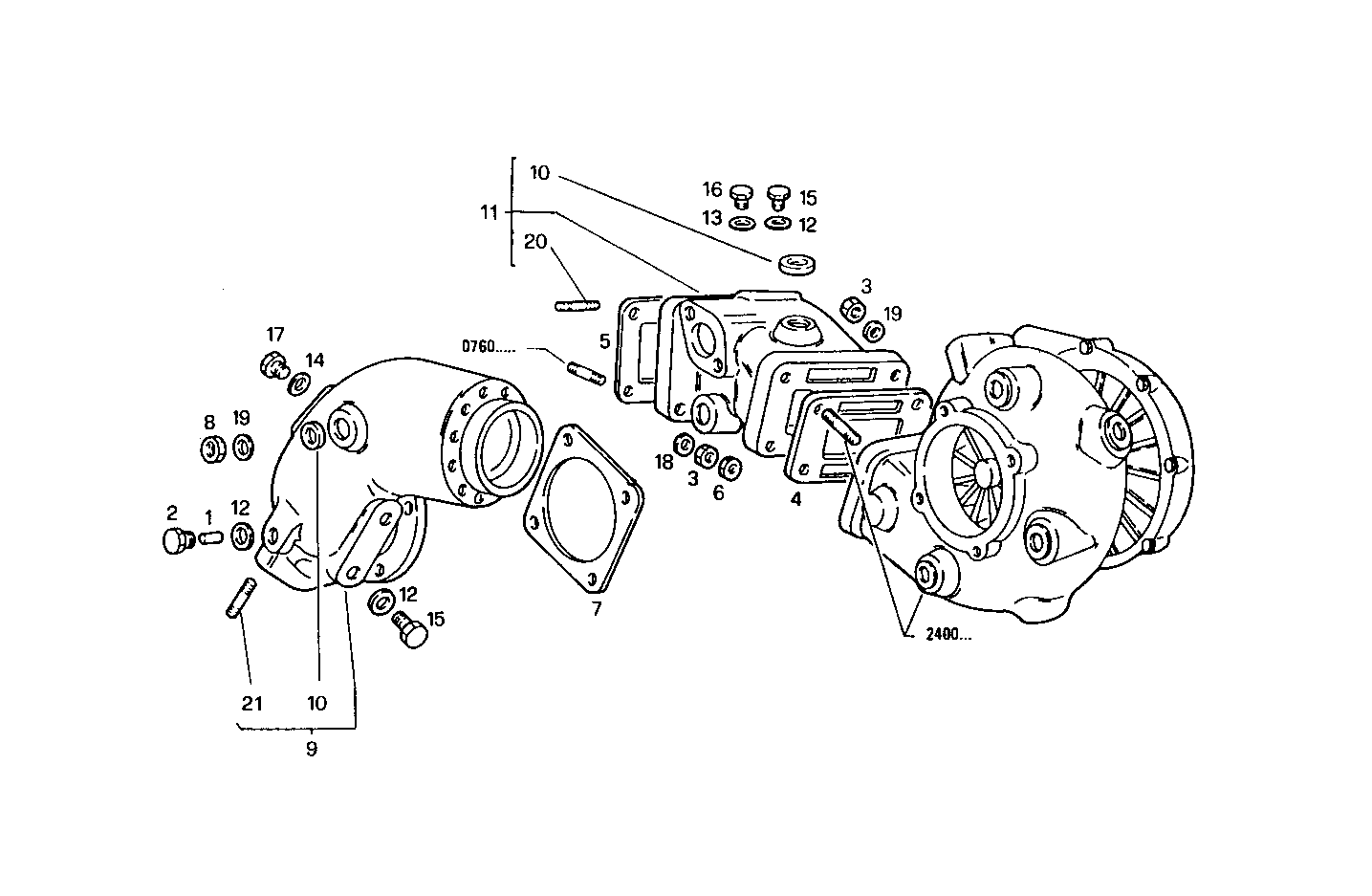

SUPERCHARGING LINES
8061SRM24.10 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 2 | 4917793 | PLUG PLUG | 1 | |
| 3 | 4927248 | NUT NUT | 8 | |
| 4 | 4632123 | GASKET GASKET | 1 | |
| 5 | 8100140 | GASKET GASKET | 1 | |
| 6 | 8100961 | NUT NUT | 4 | |
| 7 | 8009599 | GASKET GASKET | 1 | |
| 8 | 12164711 | HEXAGON NUT HEXAGON NUT | 4 | |
| 9 | 8112754 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 10 | 14282470 | LOCK PLUG LOCK PLUG | 5 | |
| 11 | 8102472 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 12 | 10259960 | WASHER WASHER | 3 | |
| 13 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 14 | 10298460 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 10300840 | LOCK PLUG LOCK PLUG | 2 | |
| 16 | 11903140 | PLUG PLUG | 1 | |
| 17 | 10300540 | PLUG PLUG | 1 | |
| 18 | 10370501 | WASHER WASHER | 4 | |
| 19 | 11198379 | SPRING WASHER SPRING WASHER | 8 | |
| 20 | 13516821 | STUD STUD | 2 | |
| 21 | 13517021 | STUD STUD | 2 |
