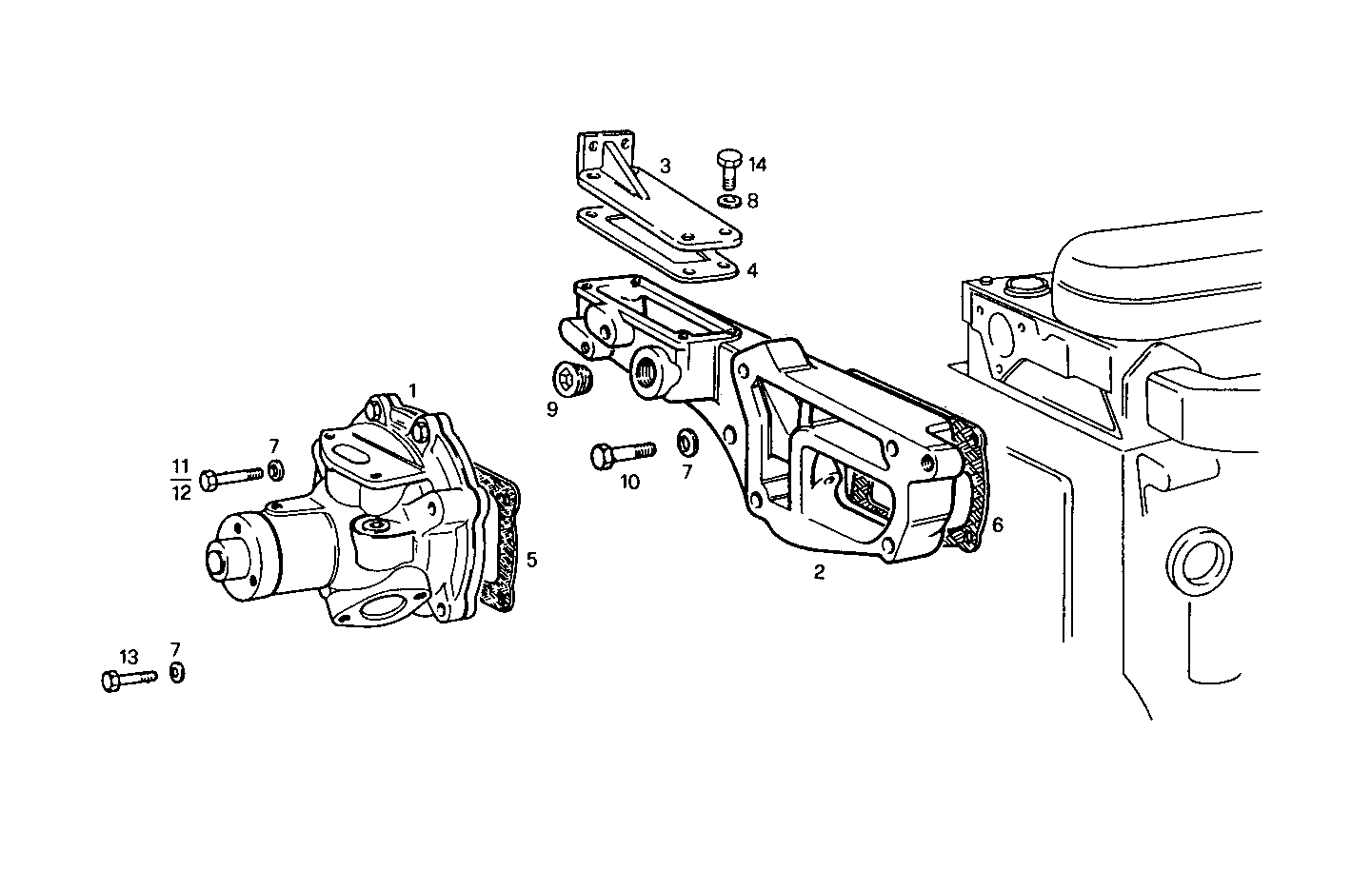

WATER PUMP
8061SRM24.10 — 8061SRM24
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4813370 | WATER PUMP WATER PUMP | 1 | |
| 2 | 4626119 | SUPPORT SUPPORT | 1 | |
| 3 | 4936774 | COVER COVER | 1 | |
| 4 | 4601884 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 4599561 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4658663 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 11190571 | SPRING WASHER SPRING WASHER | 5 | |
| 8 | 11194071 | WASHER WASHER | 4 | |
| 9 | 14325001 | PLUG PLUG | 1 | |
| 10 | 15971521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 15972021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 13 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 16043521 | SCREW SCREW | 4 |
