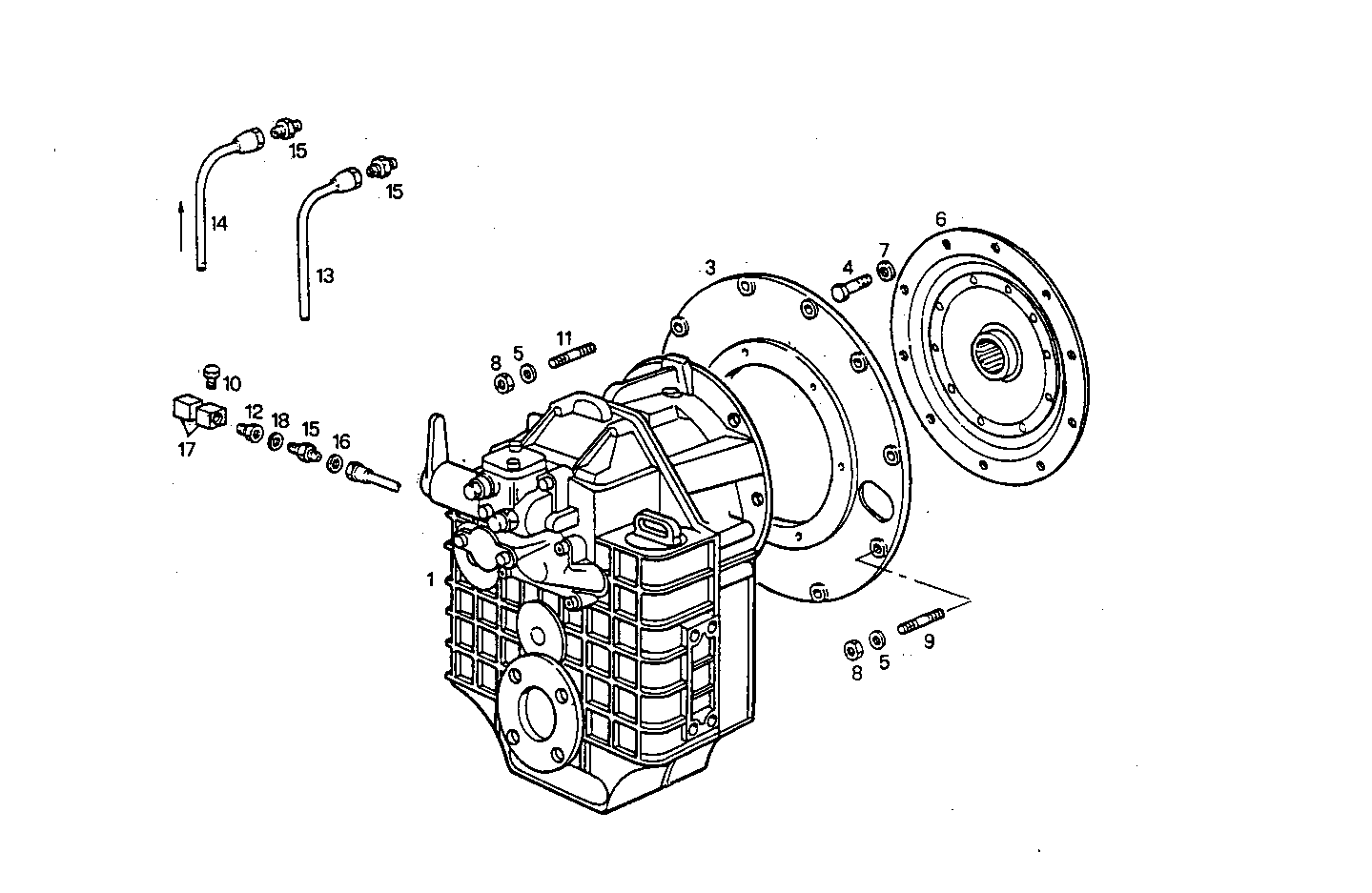

MARINE GEAR HURTH HSW 630 V
8061SRM25.10 — 8061SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005806 | MARINE GEAR MARINE GEAR | 1 | |
| 3 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 11198371 | SPRING WASHER SPRING WASHER | 18 | |
| 6 | 8113696 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 7 | 10571879 | WASHER WASHER | 8 | |
| 8 | 12164711 | HEXAGON NUT HEXAGON NUT | 18 | |
| 9 | 13449721 | STUD STUD | 12 | |
| 10 | 10183317 | LOCK PLUG LOCK PLUG | 2 | |
| 11 | 13546321 | STUD STUD | 6 | |
| 12 | 8105826 | PIPE SOCKET PIPE SOCKET | 2 | |
| 13 | 4935780 | OIL HOSE OIL HOSE | 1 | |
| 14 | 8111496 | HOSE HOSE | 1 | |
| 15 | 4935465 | PIPE SOCKET PIPE SOCKET | 4 | |
| 16 | 10257060 | SEAL GASKET SEAL GASKET | 4 | |
| 17 | 8107173 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 11270460 | GASKET GASKET | 2 |
