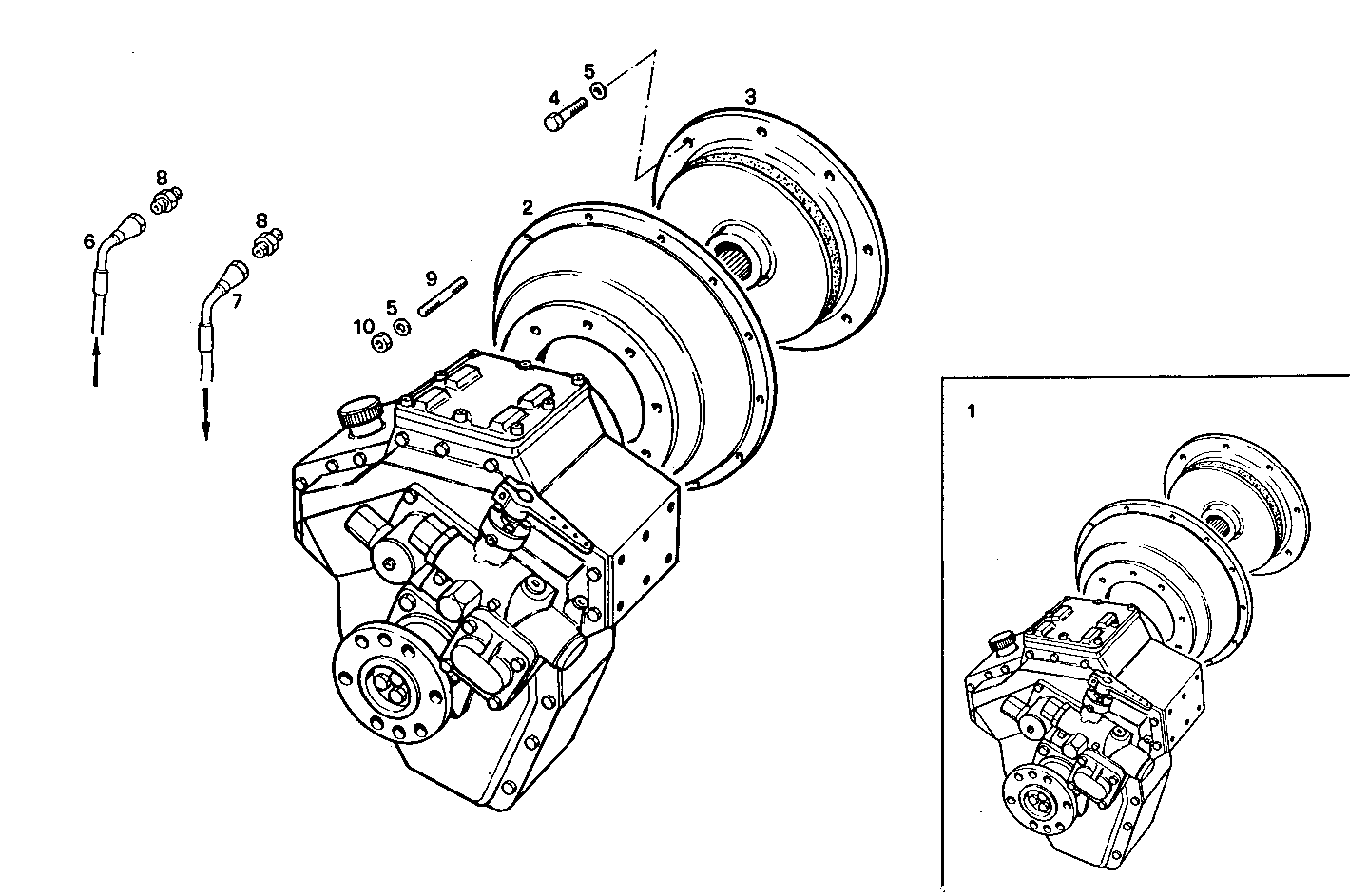

MARINE GEAR TECHNODRIVE TM 200 B
8061SRM25.10 — 8061SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012762 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8012798 | COUPLING BELL COUPLING BELL | 1 | |
| 3 | 8012802 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 20 | |
| 6 | 4935779 | HOSE HOSE | 1 | |
| 7 | 4936603 | OIL HOSE OIL HOSE | 1 | |
| 8 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 9 | 13449521 | STUD STUD | 12 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 |
