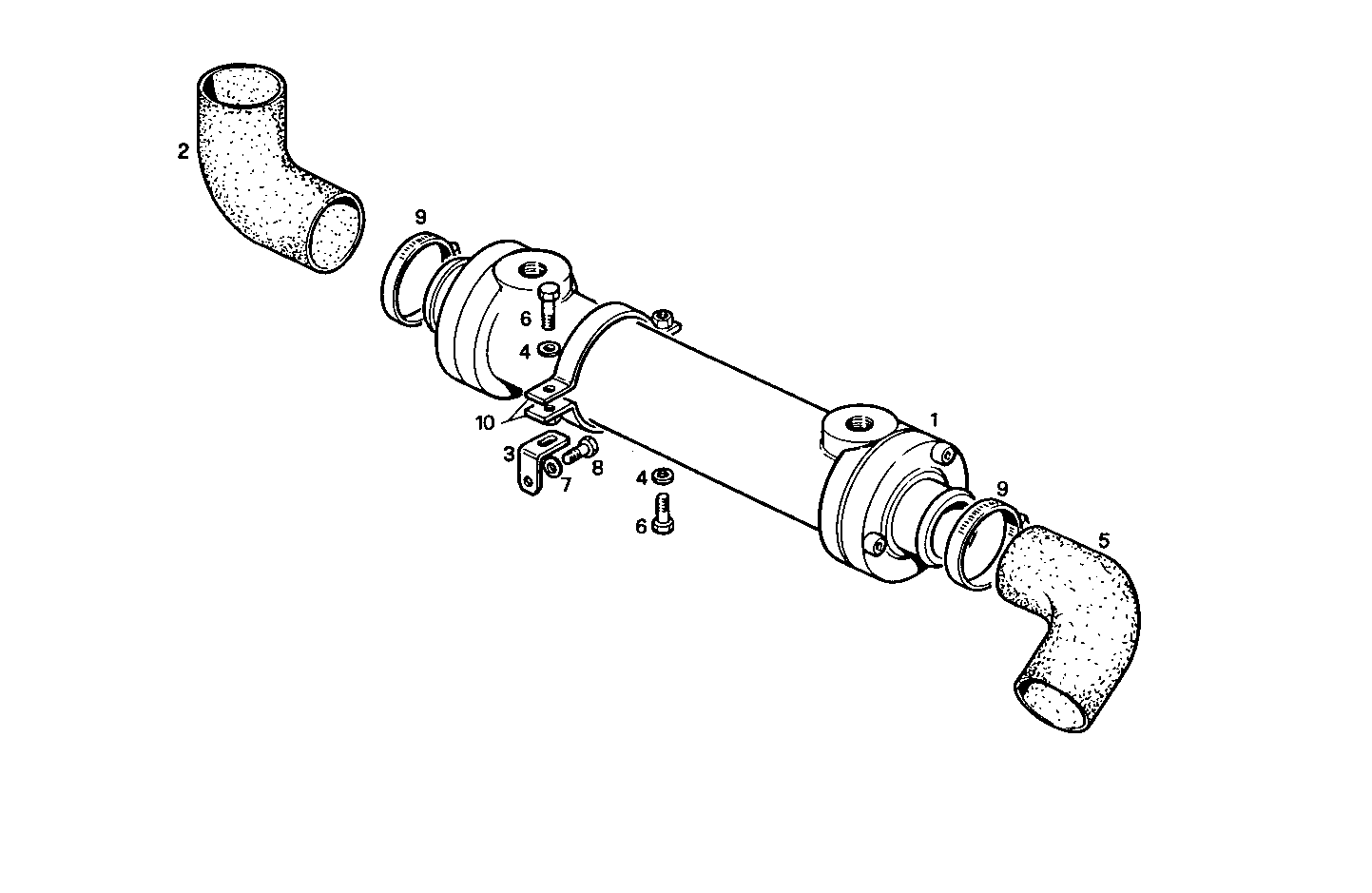

REVERSER WATER HEAT EXCHANGER
8061SRM25.10 — 8061SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 2 | 4604779 | WATER HOSE WATER HOSE | 1 | |
| 3 | 8103023 | RETAINER RETAINER | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17764893 | CLIP CLIP | 4 | |
| 10 | 5116798 | CLIP CLIP | 4 |
