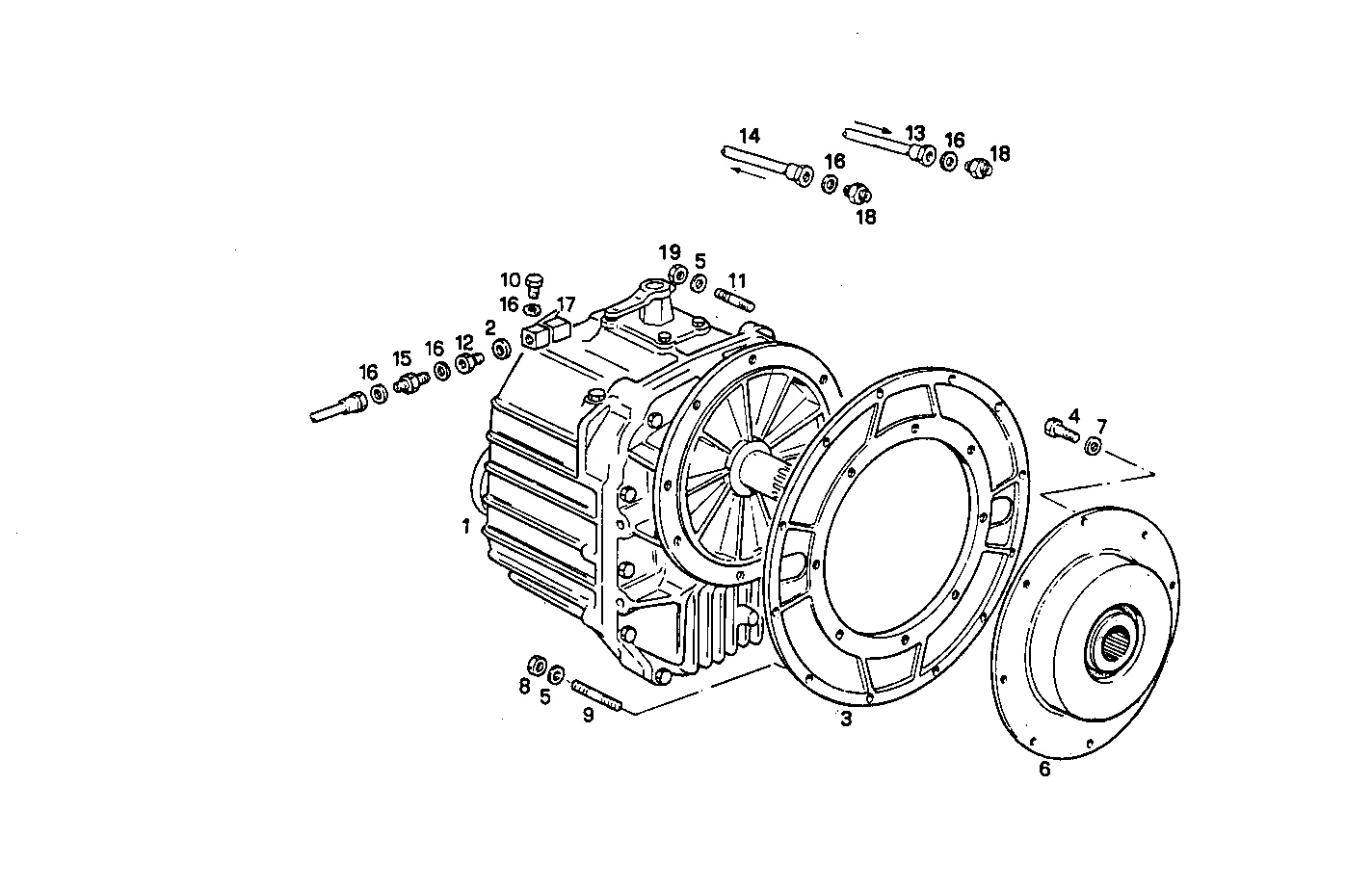

MARINE GEAR HURTH HSW 630 A
8061SRM25.12 — 8061SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110095 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 11270460 | GASKET GASKET | 2 | |
| 3 | 8019421 | FLANGE FLANGE | 1 | |
| 4 | 11306921 | SCREW SCREW | 8 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 20 | |
| 6 | 8019065 | FLEXPLATE FLEXPLATE | 1 | |
| 7 | 17095004 | WASHER WASHER | 8 | |
| 8 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 9 | 13449521 | STUD STUD | 12 | |
| 10 | 10183317 | LOCK PLUG LOCK PLUG | 2 | |
| 11 | 16731221 | STUD STUD | 6 | |
| 12 | 8105826 | PIPE SOCKET PIPE SOCKET | 2 | |
| 13 | 4935780 | OIL HOSE OIL HOSE | 1 | |
| 14 | 8111496 | HOSE HOSE | 1 | |
| 15 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 16 | 10257060 | SEAL GASKET SEAL GASKET | 6 | |
| 17 | 8107173 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 19 | 17038121 | HEXAGON NUT HEXAGON NUT | 6 |
