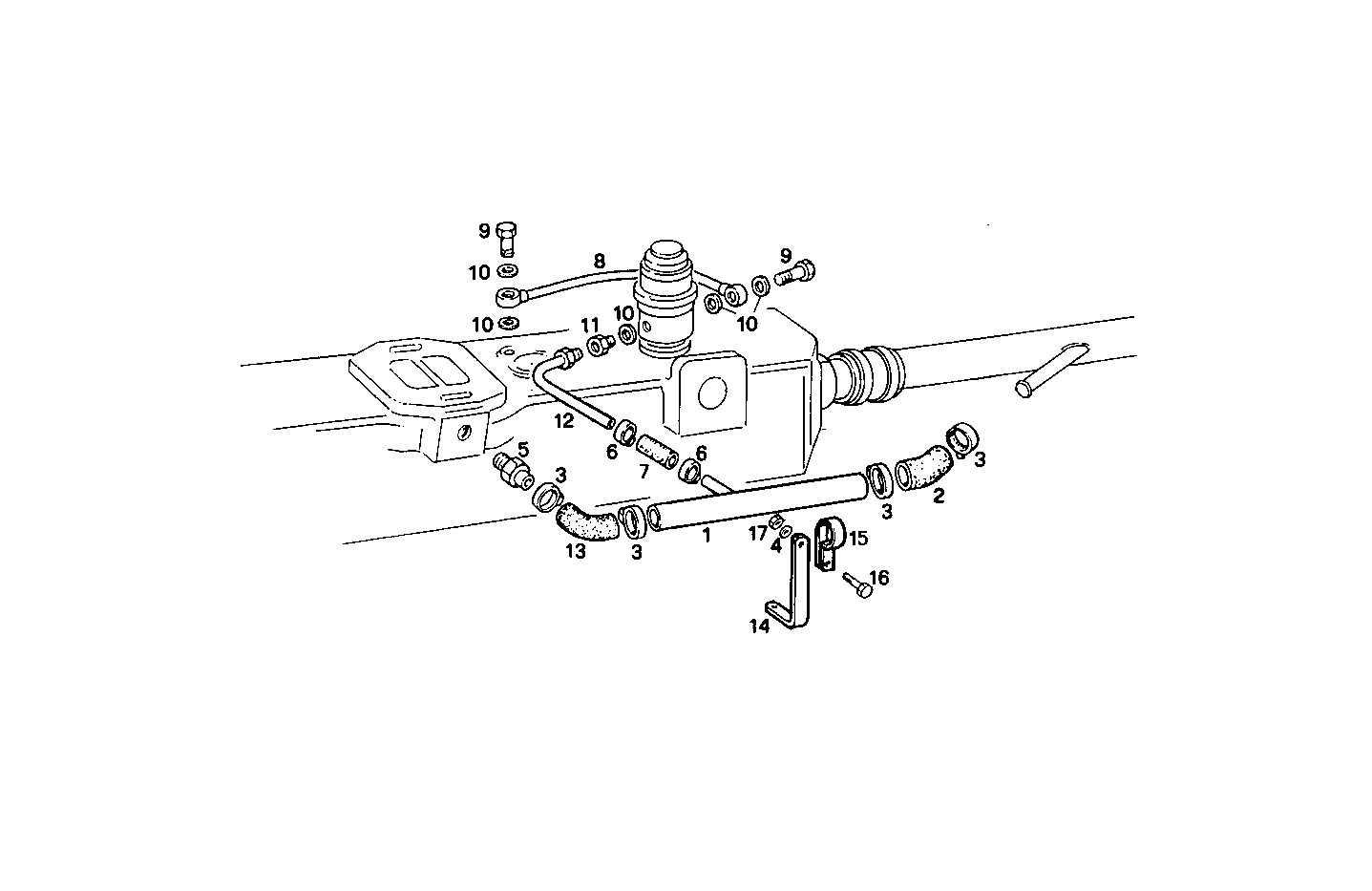

WATER LINES
8061SRM25.33 — 8061SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017438 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17738187 | WATER HOSE WATER HOSE | 1 | |
| 3 | 17764593 | CLIP CLIP | 4 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 5 | 4633506 | THREADED UNION THREADED UNION | 1 | |
| 6 | 17764393 | CLIP CLIP | 2 | |
| 7 | 4931996 | WATER HOSE WATER HOSE | 1 | |
| 8 | 8016871 | WATER PIPE WATER PIPE | 1 | |
| 9 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 10 | 98474308 | SEAL GASKET SEAL GASKET | 5 | |
| 11 | 16500214 | THREADED UNION THREADED UNION | 1 | |
| 12 | 8017437 | WATER PIPE WATER PIPE | 1 | |
| 13 | 98421373 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 14 | 8106380 | RETAINER RETAINER | 1 | |
| 15 | 4763804 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 16 | 16605424 | SCREW SCREW | 1 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 |
