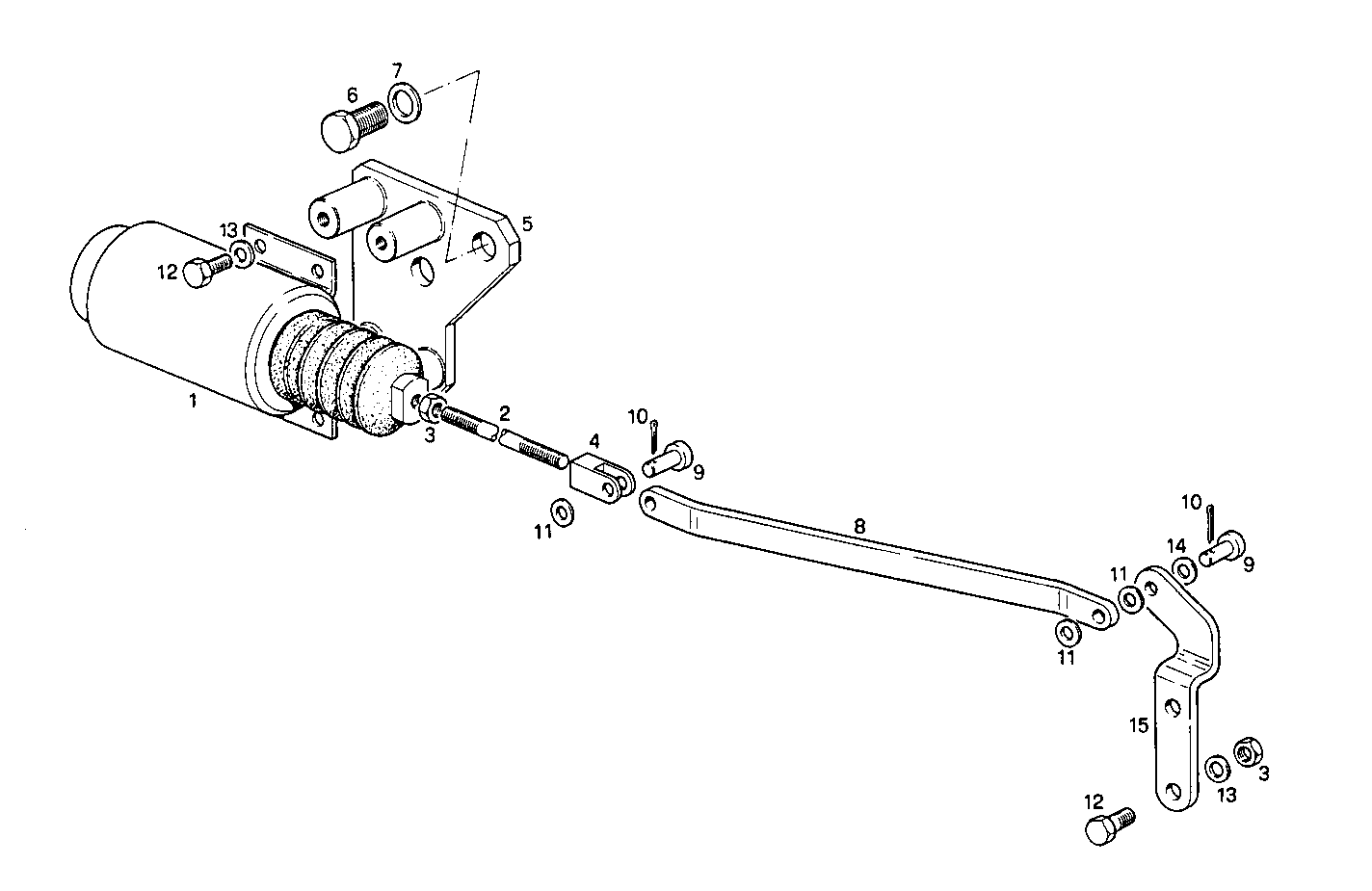

STOP SOLENOID - ENERGIZE TO STOP - 24V
8061SRM25.42 — 8061SRM25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017206 | SOLENOID SOLENOID | 1 | |
| 2 | 16745224 | STUD STUD | 1 | |
| 3 | 17037821 | HEXAGON NUT HEXAGON NUT | 2 | |
| 4 | 8109159 | CLEVIS CLEVIS | 1 | |
| 5 | 8013105 | PLATE PLATE | 1 | |
| 6 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 8013106 | CLEVIS CLEVIS | 1 | |
| 9 | 17718411 | PIN PIN | 2 | |
| 10 | 16852501 | SPLIT PIN SPLIT PIN | 2 | |
| 11 | 17094504 | WASHER WASHER | 2 | |
| 12 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 13 | 17088474 | WASHER WASHER | 6 | |
| 14 | 17793604 | WASHER WASHER | 1 | |
| 15 | 8013104 | LEVER LEVER | 1 |
