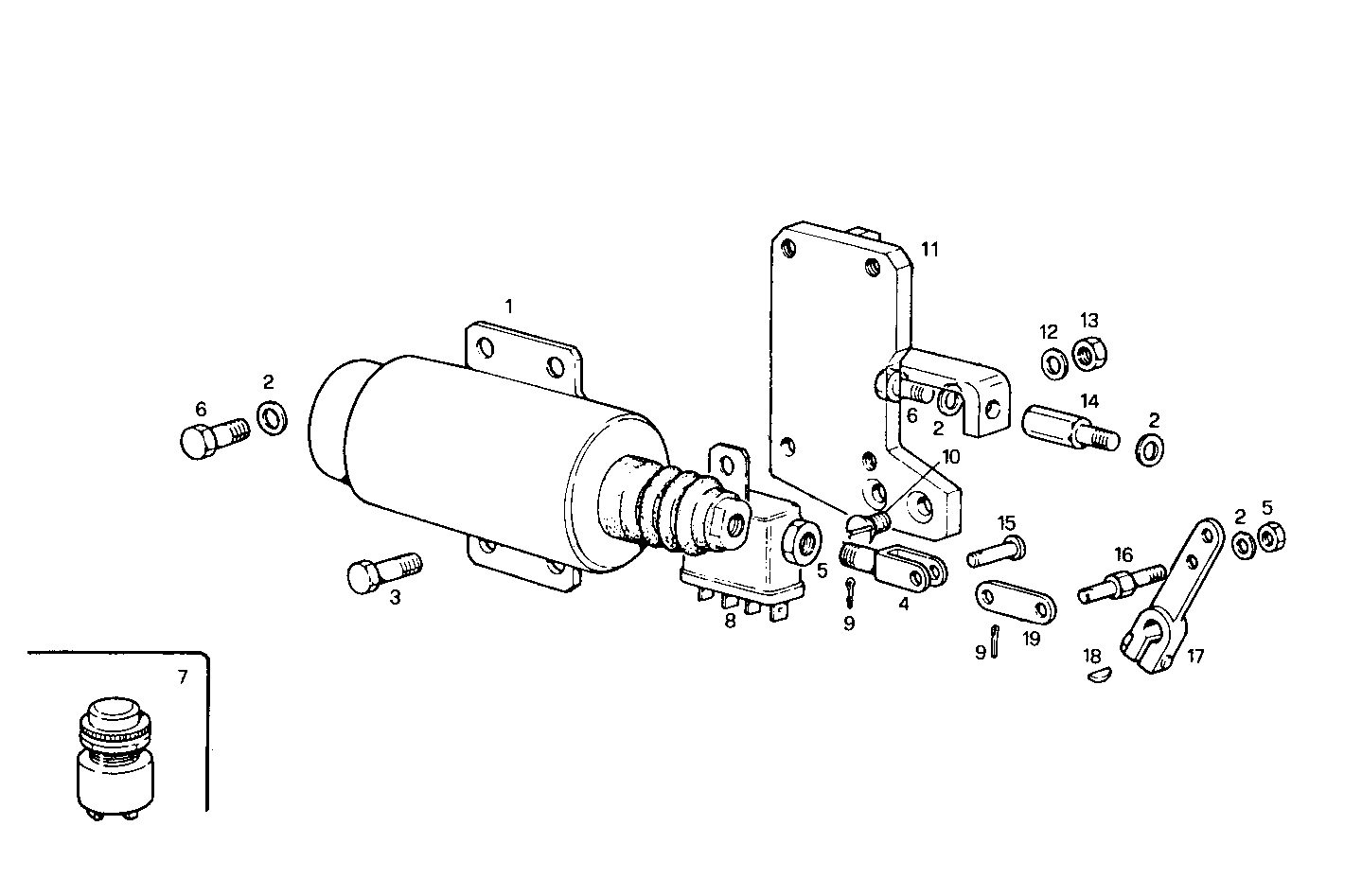

ELECTRIC STOP ENGINE
8061SRM27.10 — 8061SRM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105420 | SOLENOID SOLENOID | 1 | |
| 2 | 11197771 | SPRING WASHER SPRING WASHER | 6 | |
| 3 | 10978021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 8108834 | CLEVIS CLEVIS | 1 | |
| 5 | 15896221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 8105611 | PUSH BUTTON PUSH BUTTON | 1 | |
| 8 | 8109522 | RELAY RELAY | 1 | |
| 9 | 10734101 | SPLIT PIN SPLIT PIN | 2 | |
| 10 | 10353411 | C'SUNK SCREW C'SUNK SCREW | 2 | |
| 11 | 8108879 | SUPPORT SUPPORT | 1 | |
| 12 | 14496301 | WASHER WASHER | 2 | |
| 13 | 15896411 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 8110818 | SPACING BAR SPACING BAR | 1 | |
| 15 | 17718411 | PIN PIN | 1 | |
| 16 | 8110876 | SPACING BAR SPACING BAR | 1 | |
| 17 | 772487 | LEVER LEVER | 1 | |
| 18 | 8101048 | KEY KEY | 1 | |
| 19 | 8110880 | CLEVIS CLEVIS | 1 |
