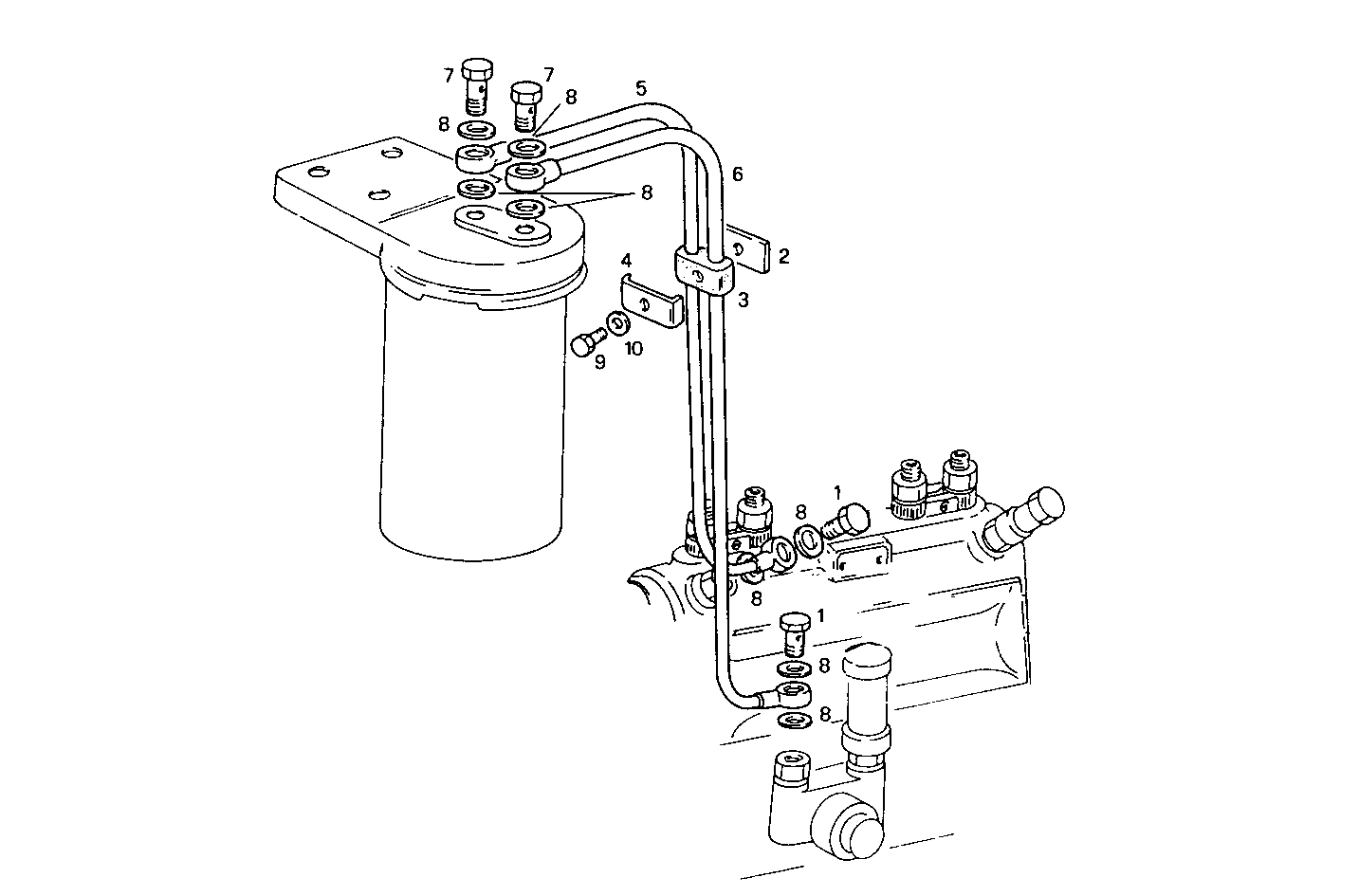

FUEL LINES
8061SRM27.10 — 8061SRM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 705737 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 2 | 4659219 | PLATE PLATE | 1 | |
| 3 | 4659217 | DOWEL DOWEL | 1 | |
| 4 | 4659218 | CLIP CLIP | 1 | |
| 5 | 8111246 | FUEL LINE FUEL LINE | 1 | |
| 6 | 8111245 | FUEL LINE FUEL LINE | 1 | |
| 7 | 10184317 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 8 | 10280060 | WASHER WASHER | 8 | |
| 9 | 10978221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 12601179 | WASHER WASHER | 1 |
