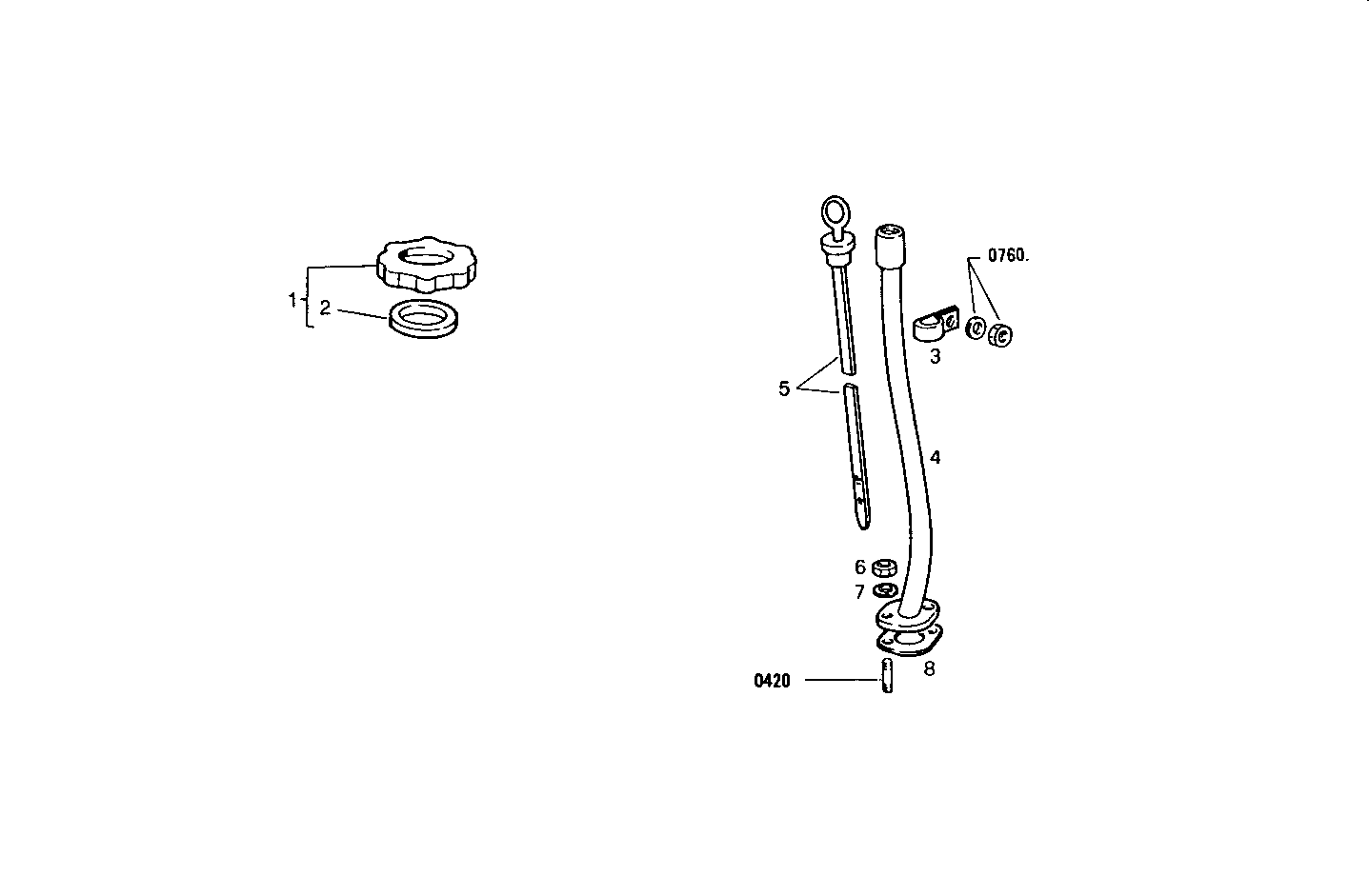

OIL DIPSTICK
8061SRM27.10 — 8061SRM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4232606 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 2 | 98418978 | GASKET GASKET | 1 | |
| 3 | 8100228 | CLIP CLIP | 1 | |
| 4 | 8100227 | ROD GUIDE ROD GUIDE | 1 | |
| 5 | 8100162 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 4599562 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 |
