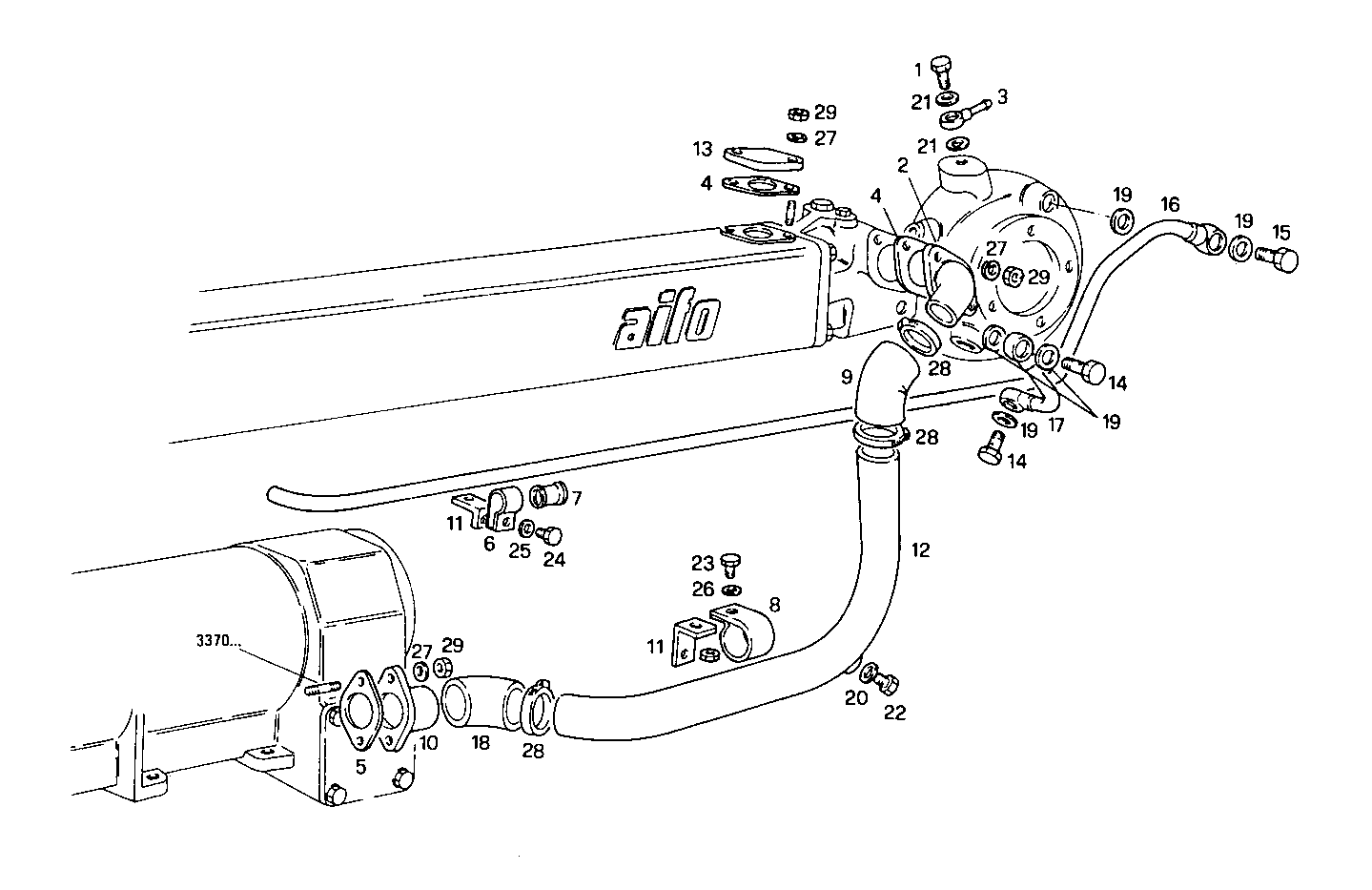

WATER LINES
8061SRM27.10 — 8061SRM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927823 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 2 | 4919235 | WATER PIPE WATER PIPE | 1 | |
| 3 | 4636689 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 4 | 4918835 | GASKET GASKET | 2 | |
| 5 | 4599562 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 7 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 8 | 4936741 | CLIP CLIP | 1 | |
| 9 | 4604779 | WATER HOSE WATER HOSE | 1 | |
| 10 | 8100081 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8102227 | RETAINER RETAINER | 2 | |
| 12 | 8108306 | WATER PIPE WATER PIPE | 1 | |
| 13 | 8100154 | COVER COVER | 1 | |
| 14 | 8108997 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 15 | 8110643 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 16 | 8110625 | WATER PIPE WATER PIPE | 1 | |
| 17 | 8110543 | WATER PIPE WATER PIPE | 1 | |
| 18 | 10136187 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 10263460 | WASHER WASHER | 1 | |
| 20 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 21 | 10298460 | SEAL GASKET SEAL GASKET | 2 | |
| 22 | 11903040 | LOCK PLUG LOCK PLUG | 1 | |
| 23 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 10979421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 25 | 11197779 | SPRING WASHER SPRING WASHER | 1 | |
| 26 | 17088474 | WASHER WASHER | 1 | |
| 27 | 11194079 | SPRING WASHER SPRING WASHER | 4 | |
| 28 | 12177090 | CLIP CLIP | 4 | |
| 29 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 |
