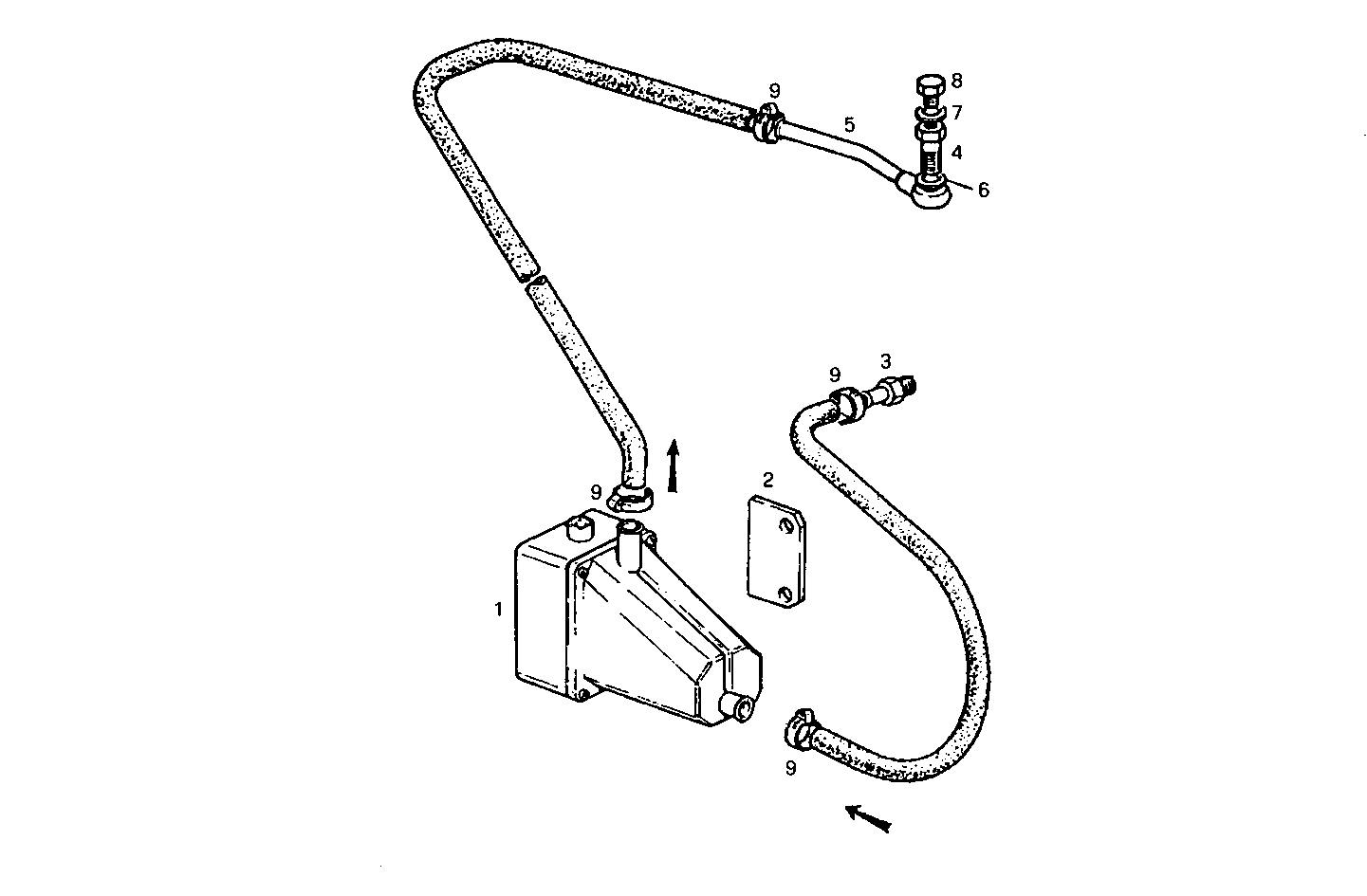

WATER PREHEATER DEVICE - 220V
8061SRM27.10 — 8061SRM27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008375 | HEATER HEATER | 1 | |
| 2 | 8006354 | SUPPORT SUPPORT | 1 | |
| 3 | 4616630 | THREADED UNION THREADED UNION | 1 | |
| 4 | 4928361 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 5 | 8112239 | WATER PIPE WATER PIPE | 1 | |
| 6 | 10263460 | WASHER WASHER | 2 | |
| 7 | 10278660 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 10300711 | LOCK PLUG LOCK PLUG | 1 | |
| 9 | 17764492 | CLIP CLIP | 4 |
