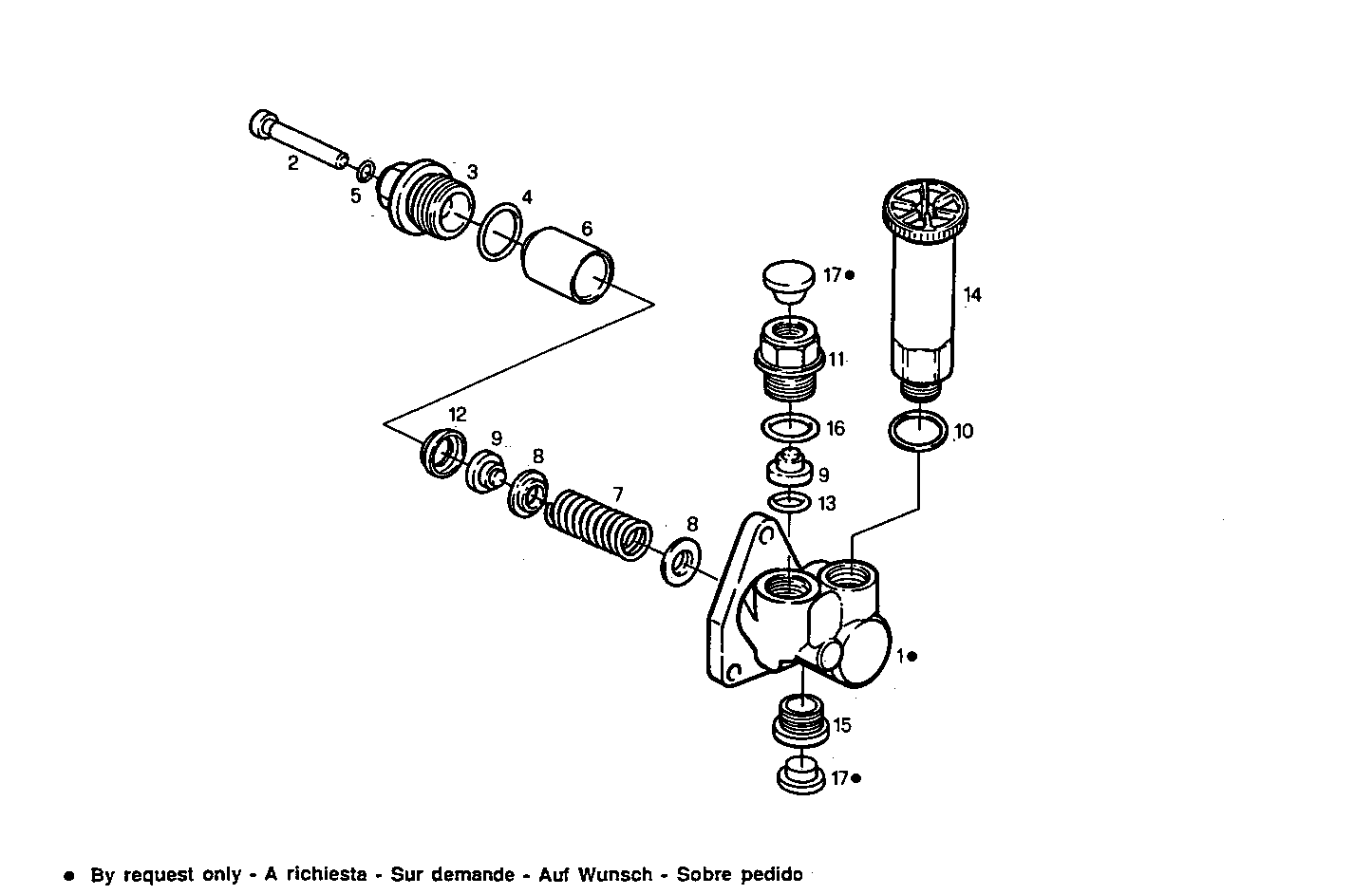

FUEL PUMP (COMPONENTS)
8061SRM30.10 — 8061SRM30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 2040.017-001 | PUMP HOUSING PUMP HOUSING | 1 | |
| 2 | 93163022 | VALVE VALVE | 1 | |
| 3 | 93163023 | VALVE HOUSING VALVE HOUSING | 1 | |
| 4 | 93156915 | O-RING O-RING | 1 | |
| 5 | 79070369 | O-RING O-RING | 1 | |
| 6 | 93156915 | O-RING O-RING | 1 | |
| 7 | 93163024 | SPRING SPRING | 1 | |
| 8 | 93156918 | CAP CAP | 2 | |
| 9 | 1290608 | SHUT-OFF VALVE SHUT-OFF VALVE | 2 | |
| 10 | 1287773 | GASKET GASKET | 1 | |
| 11 | 93163025 | THREADED UNION THREADED UNION | 1 | |
| 12 | 93156919 | CAP CAP | 1 | |
| 13 | 93163026 | O-RING O-RING | 1 | |
| 14 | 8092639 | HAND PUMP HAND PUMP | 1 | |
| 15 | 93163027 | THREADED UNION THREADED UNION | 2 | |
| 16 | 8190308 | WASHER WASHER | 1 | |
| 17 | 2040.017-017 | PLUG PLUG | 2 |
