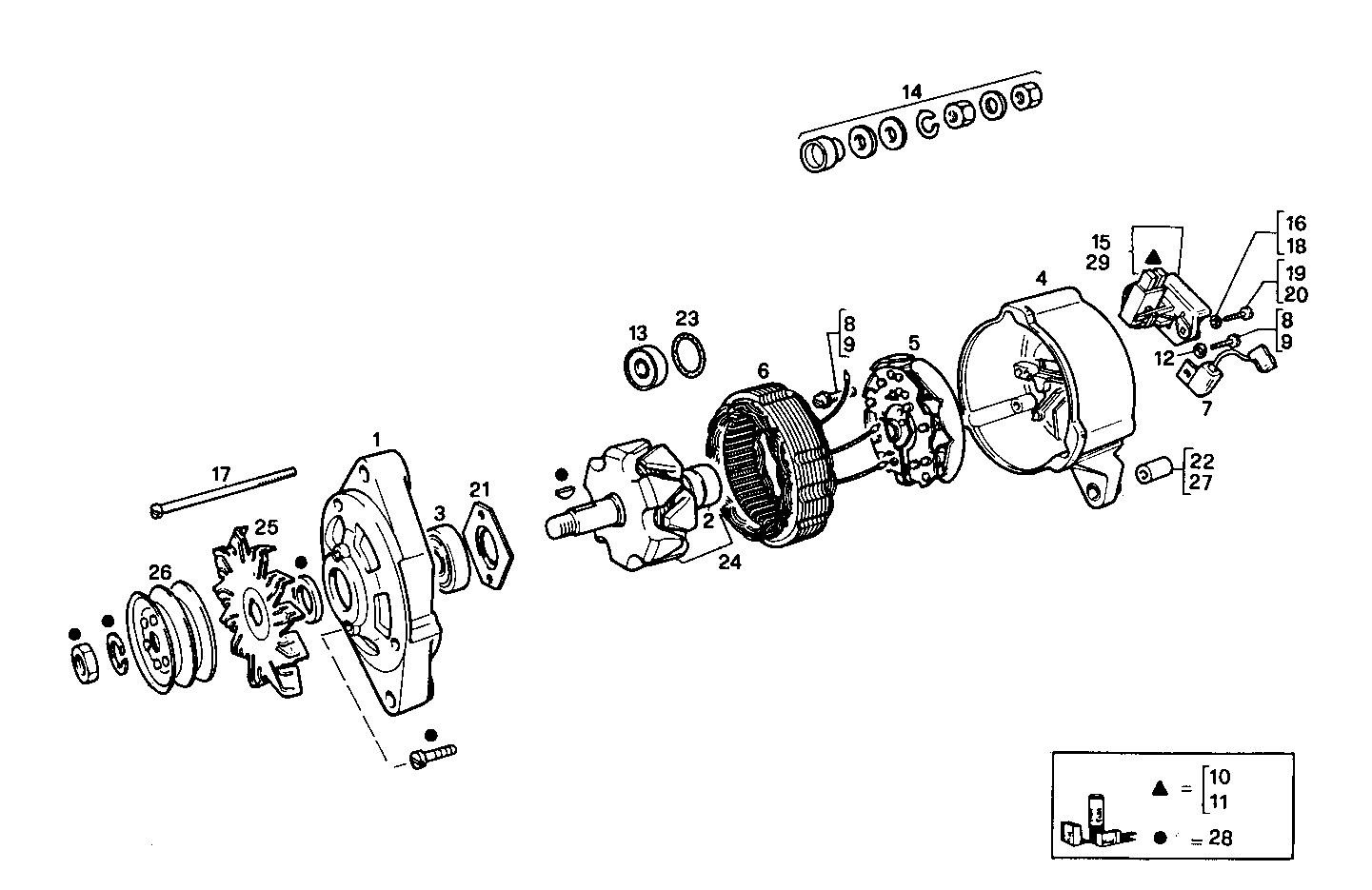

GENERATOR (COMPONENTS)
8061SRM30.10 — 8061SRM30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 9940037 | SUPPORT SUPPORT | 1 | |
| 2 | 9960174 | RING RING | 1 | |
| 3 | 9927840 | COMMUTATOR BEARING COMMUTATOR BEARING | 1 | |
| 4 | 9936537 | SUPPORT SUPPORT | 1 | |
| 5 | 9937529 | RECTIFIER RECTIFIER | 1 | |
| 6 | 9960119 | STATOR STATOR | 1 | |
| 7 | 79022480 | CONDENSER CONDENSER | 1 | |
| 8 | 9939293 | SCREW SCREW | 5 | |
| 9 | 79075883 | SCREW SCREW | 5 | |
| 10 | 42491787 | CARBON BRUSHES CARBON BRUSHES | 1 | |
| 11 | 9937700 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 12 | 9960179 | WASHER WASHER | 1 | |
| 13 | 9960113 | DRIVE BEARING DRIVE BEARING | 1 | |
| 14 | 9927837 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 15 | 9938171 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 16 | 9960178 | WASHER WASHER | 2 | |
| 17 | 9957963 | SCREW SCREW | 4 | |
| 18 | 42483342 | WASHER WASHER | 1 | |
| 19 | 79022481 | SCREW SCREW | 1 | |
| 20 | 10389311 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 21 | 79022468 | PLATE PLATE | 1 | |
| 22 | 42490292 | BUSH BUSH | 1 | |
| 23 | 79025494 | O-RING O-RING | 1 | |
| 24 | 9938344 | ROTOR ROTOR | 1 | |
| 25 | 4470778 | GENERATOR FAN GENERATOR FAN | 1 | |
| 26 | 4765727 | PULLEY PULLEY | 1 | |
| 27 | 9960120 | BUSH BUSH | 1 | |
| 28 | 9960180 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 29 | 9962566 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 |
