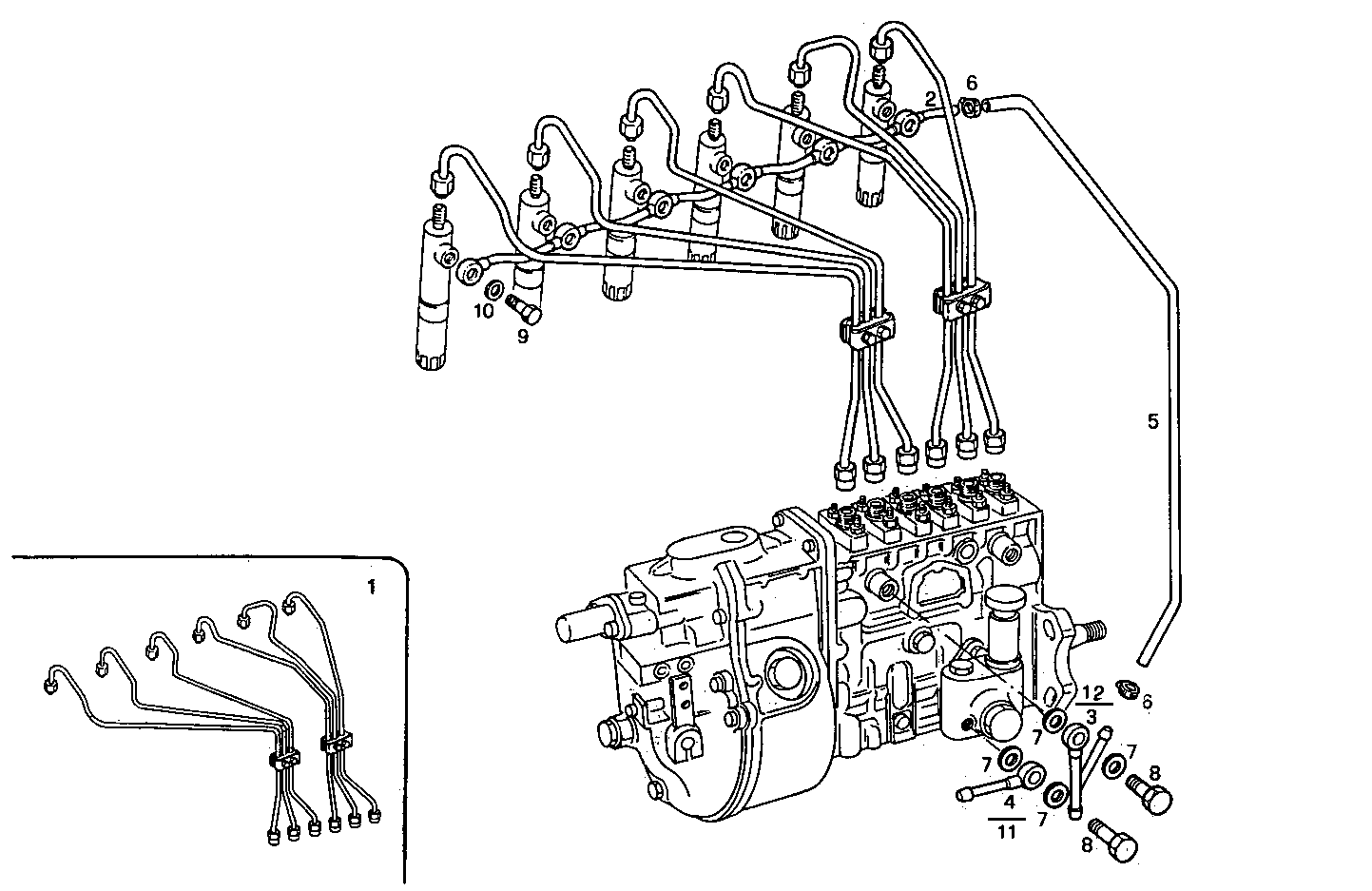

INJECTION PIPES
8061SRM30.10 — 8061SRM30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005718 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 4788070 | INJECTION LINE INJECTION LINE | 1 | |
| 3 | 8010952 | FUEL LINE FUEL LINE | 1 | |
| 4 | 79010214 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 8006636 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 17764293 | CLIP CLIP | 2 | |
| 7 | 98474308 | SEAL GASKET SEAL GASKET | 4 | |
| 8 | 4846083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 9 | 93190600 | SCREW CONNECTOR SCREW CONNECTOR | 6 | |
| 10 | 1118641 | WASHER WASHER | 12 | |
| 11 | 8030222 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8034106 | FUEL LINE FUEL LINE | 1 |
