MARINE GEAR

8061SRM30.10 — 8061SRM30

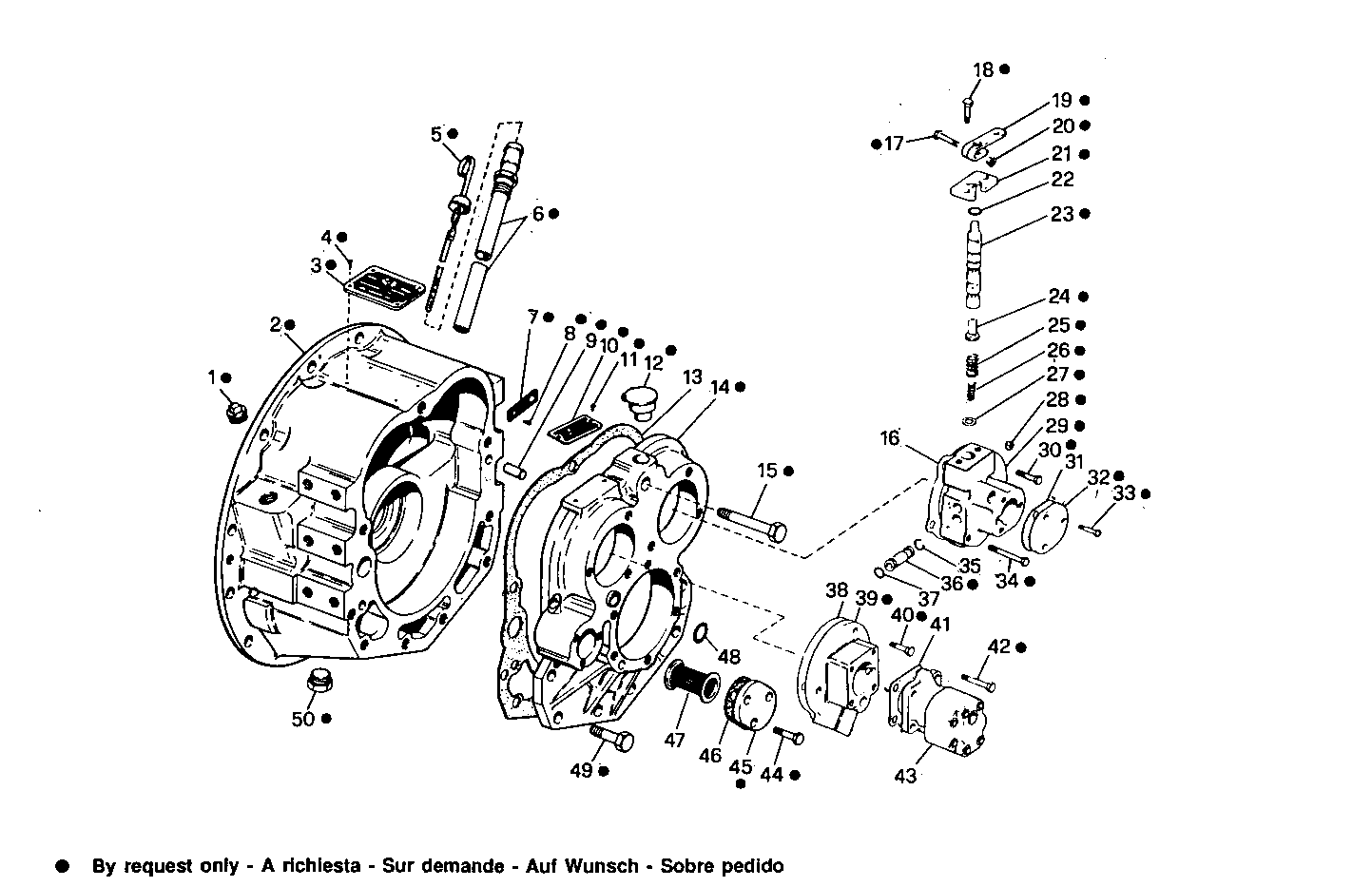

Parts List

#	Part No	Name / Description	Qty
1	T5114001-01-001	PLUG PLUG	1
2	T5114001-01-002	BEARING HOUSING BEARING HOUSING	1
3	T5114001-01-003	LABEL LABEL	1
4	T5114001-01-004	SCREW SCREW	4
5	8093459	OIL DIPSTICK OIL DIPSTICK	1
6	T5114001-01-006	OIL LINE OIL LINE	1
7	T5114001-01-007	LABEL LABEL	1
8	T5114001-01-008	SCREW SCREW	2
9	T5114001-01-009	DOWEL PIN DOWEL PIN	2
10	T5114001-01-010	LABEL LABEL	1
11	T5114001-01-011	SCREW SCREW	2
12	T5114001-01-012	PLUG PLUG	1
13	8090454	GASKET GASKET	1
14	T5114001-01-014	COVER COVER	1
15	T5114001-01-015	SCREW SCREW	1
16	8090455	GASKET GASKET	1
16	8090498	GASKET GASKET	1
16	8090499	GASKET GASKET	1
17	T5114001-01-017	SCREW SCREW	1
18	T5114001-01-018	SCREW SCREW	1
19	T5114001-01-019	LEVER LEVER	1
20	T5114001-01-020	NUT NUT	1
21	T5114001-01-021	PLATE PLATE	1
22	8090456	WASHER WASHER	1
23	T5114001-01-023	SHAFT SHAFT	1
24	T5114001-01-024	CONTROL PISTON CONTROL PISTON	1
25	T5114001-01-025	SPRING SPRING	1
26	T5114001-01-026	SPRING SPRING	1
27	T5114001-01-027	WASHER WASHER	1
28	T5114001-01-028	PLUG PLUG	1
29	T5114001-01-029	HOUSING HOUSING	1
30	T5114001-01-030	SCREW SCREW	2
31	8090608	GASKET GASKET	1
32	T5114001-01-032	COVER COVER	1
33	T5114001-01-033	SCREW SCREW	3
34	T5114001-01-034	SCREW SCREW	1
35	8090457	O-RING O-RING	2
36	T5114001-01-036	PIPE SOCKET PIPE SOCKET	2
37	8090457	O-RING O-RING	2
38	8090458	GASKET GASKET	1
38	8090459	GASKET GASKET	1
38	8090460	GASKET GASKET	1
39	T5114001-01-039	SUPPORT SUPPORT	1
40	T5114001-01-040	SCREW SCREW	3
41	8090461	GASKET GASKET	1
42	T5114001-01-042	SCREW SCREW	4
43	8090462	LUBE OIL PUMP LUBE OIL PUMP	1
44	T5114001-01-044	SCREW SCREW	3
45	T5114001-01-045	COVER COVER	1
46	8090608	GASKET GASKET	1
47	8090609	OIL FILTER ELEMENT OIL FILTER ELEMENT	1
48	8090463	O-RING O-RING	1
49	T5114001-01-049	SCREW SCREW	8
50	T5114001-01-050	PLUG PLUG	1
