MARINE GEAR TWIN DISC MG 506-1
8061SRM30.10 — 8061SRM30

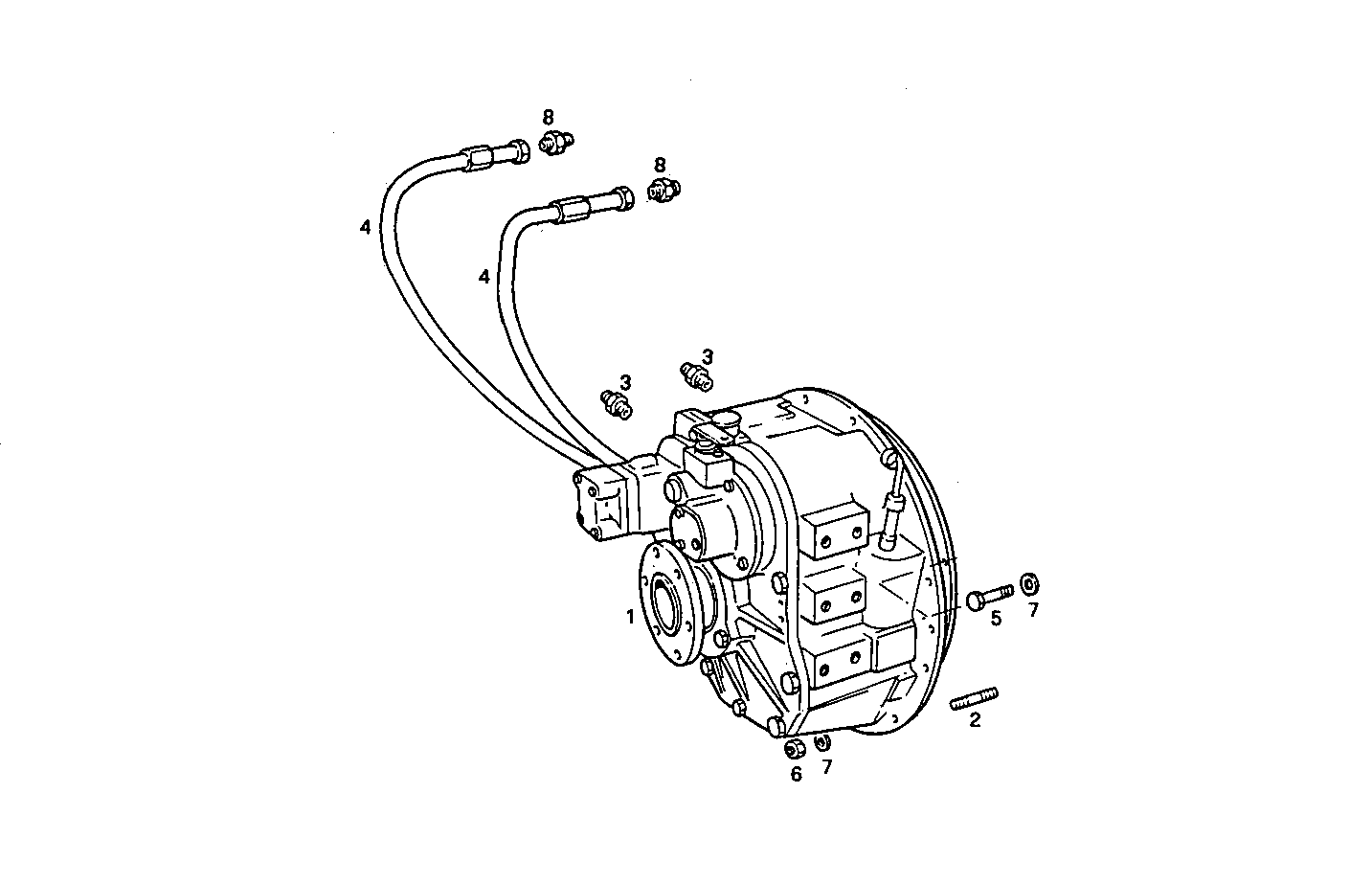

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108637 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 13449521 | STUD STUD | 12 | |
| 3 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 4935779 | HOSE HOSE | 2 | |
| 5 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 20 | |
| 8 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 |
