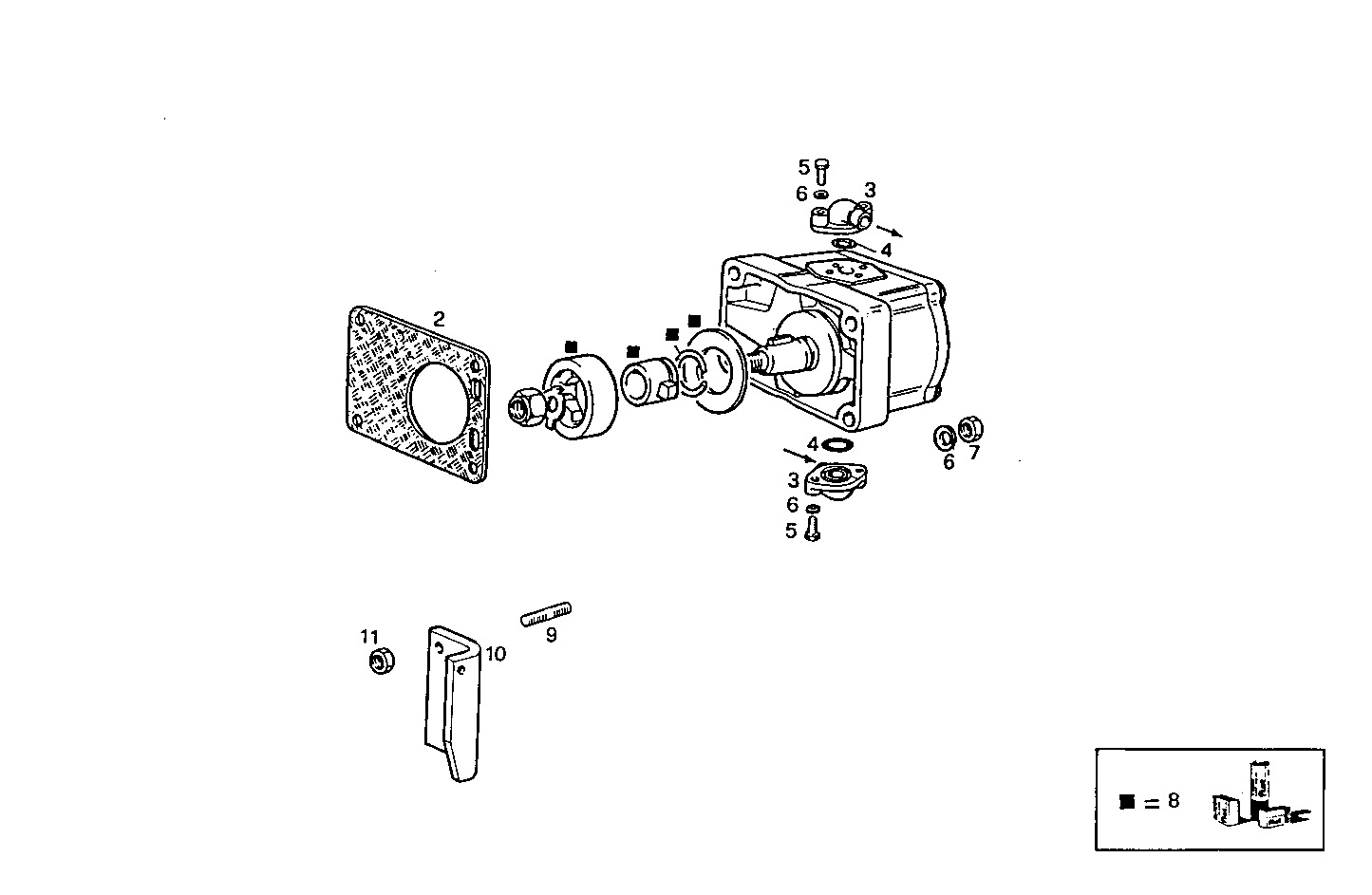

REAR HYDRAULIC PUMP
8061SRM30.10 — 8061SRM30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 5130133 | OIL PUMP-STEERING OIL PUMP-STEERING | 1 | |
| 2 | 4850986 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4670953 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 14457280 | O-RING O-RING | 2 | |
| 5 | 14305521 | SCREW SCREW | 4 | |
| 6 | 11197771 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 8 | 8090343 | KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP | 1 | |
| 9 | 13541721 | STUD STUD | 4 | |
| 10 | 8113716 | RETAINER RETAINER | 1 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 |
