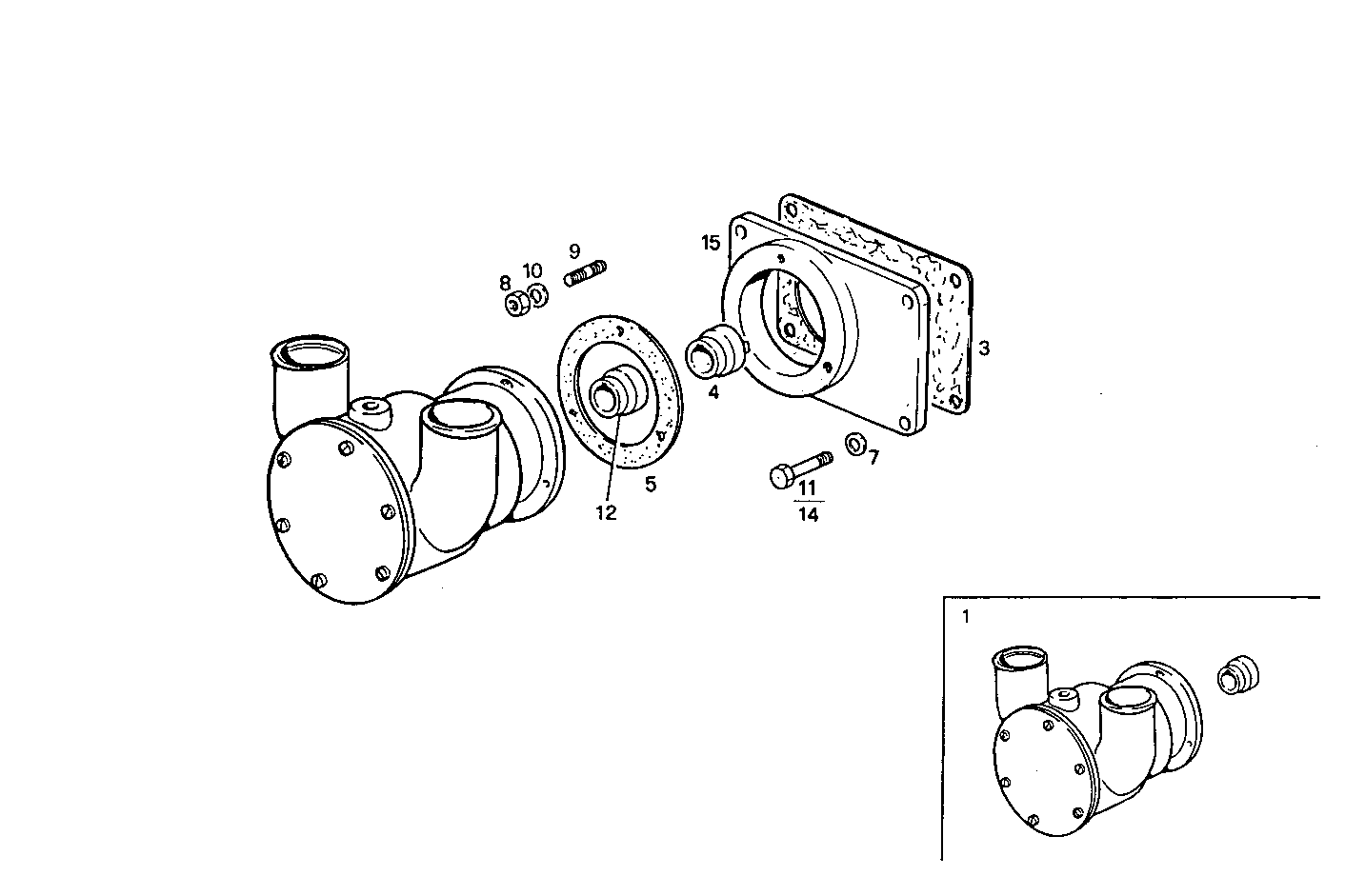

SEA WATER PUMP
8061SRM30.10 — 8061SRM30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110564 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 3 | 4850986 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4621358 | RING RING | 1 | |
| 5 | 8008734 | GASKET GASKET | 1 | |
| 7 | 17088474 | WASHER WASHER | 4 | |
| 8 | 17037821 | HEXAGON NUT HEXAGON NUT | 3 | |
| 9 | 16729324 | STUD STUD | 3 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 11 | 10902421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 4934315 | COUPLER COUPLER | 1 | |
| 13 | 16729224 | STUD STUD | 3 | |
| 14 | 10902621 | SCREW SCREW | 2 | |
| 15 | 8101083 | SUPPORT SUPPORT | 1 |
