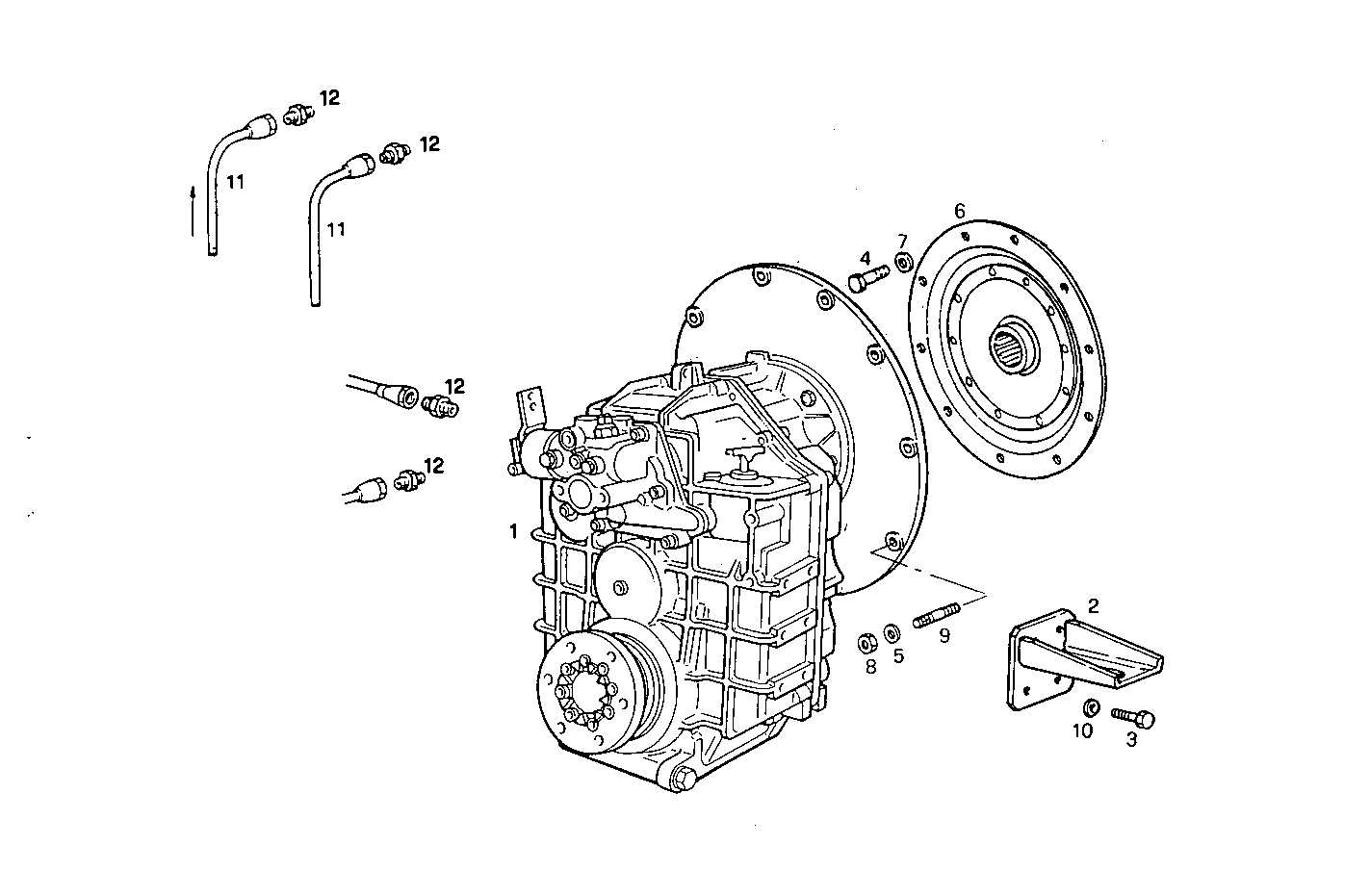

MARINE GEAR HURTH HSW 800-V
8061SRM33.10 — 8061SRM33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009634 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8010993 | SUPPORT SUPPORT | 1 | |
| 3 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 4 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 8032849 | FLEXPLATE FLEXPLATE | 1 | |
| 7 | 17095004 | WASHER WASHER | 8 | |
| 8 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 9 | 13449521 | STUD STUD | 12 | |
| 10 | 17091074 | WASHER WASHER | 8 | |
| 11 | 8111496 | HOSE HOSE | 2 | |
| 12 | 4935465 | PIPE SOCKET PIPE SOCKET | 4 | |
| 13 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 |
