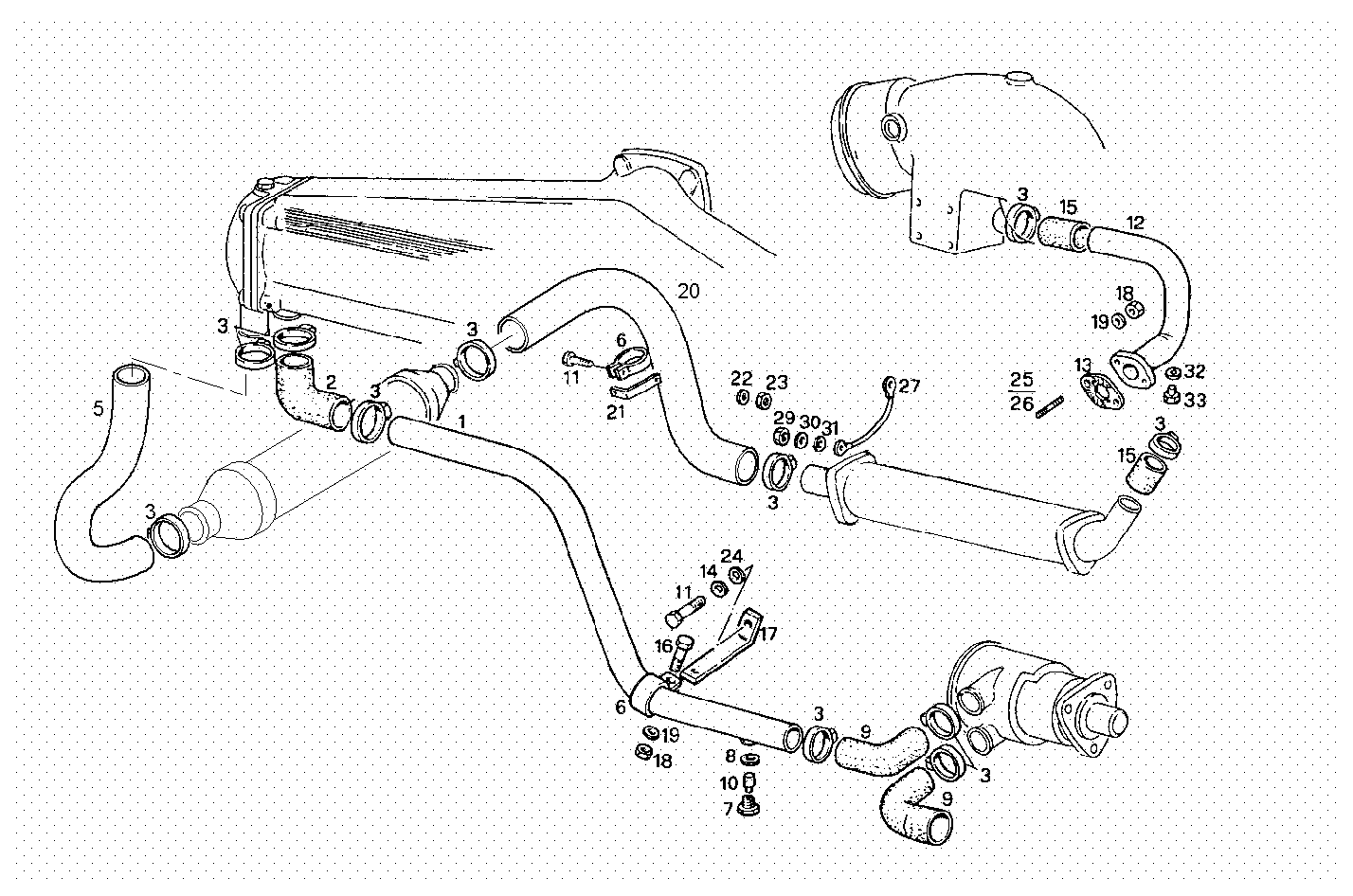

SEA WATER LINES
8061SRM33.10 — 8061SRM33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006647 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 17764793 | CLIP CLIP | 11 | |
| 5 | 8018455 | WATER HOSE WATER HOSE | 1 | |
| 6 | 4936741 | CLIP CLIP | 2 | |
| 7 | 4917793 | PLUG PLUG | 1 | |
| 8 | 4858610 | WASHER WASHER | 2 | |
| 9 | 8100546 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 10 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 11 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 8017130 | WATER PIPE WATER PIPE | 1 | |
| 13 | 8008755 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 14 | 17091074 | WASHER WASHER | 1 | |
| 15 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 16 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 8007479 | RETAINER RETAINER | 1 | |
| 18 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 20 | 8020637 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 21 | 8114420 | RETAINER RETAINER | 1 | |
| 22 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 23 | 12164711 | HEXAGON NUT HEXAGON NUT | 1 | |
| 24 | 17095304 | WASHER WASHER | 1 | |
| 25 | 13516921 | STUD STUD | 1 | |
| 26 | 13517221 | STUD STUD | 1 | |
| 27 | 8109924 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 29 | 15896411 | HEXAGON NUT HEXAGON NUT | 1 | |
| 30 | 14496301 | WASHER WASHER | 2 | |
| 31 | 11199271 | SPRING WASHER SPRING WASHER | 1 | |
| 32 | 4858610 | WASHER WASHER | 1 | |
| 33 | 8008747 | PLUG PLUG | 1 |
