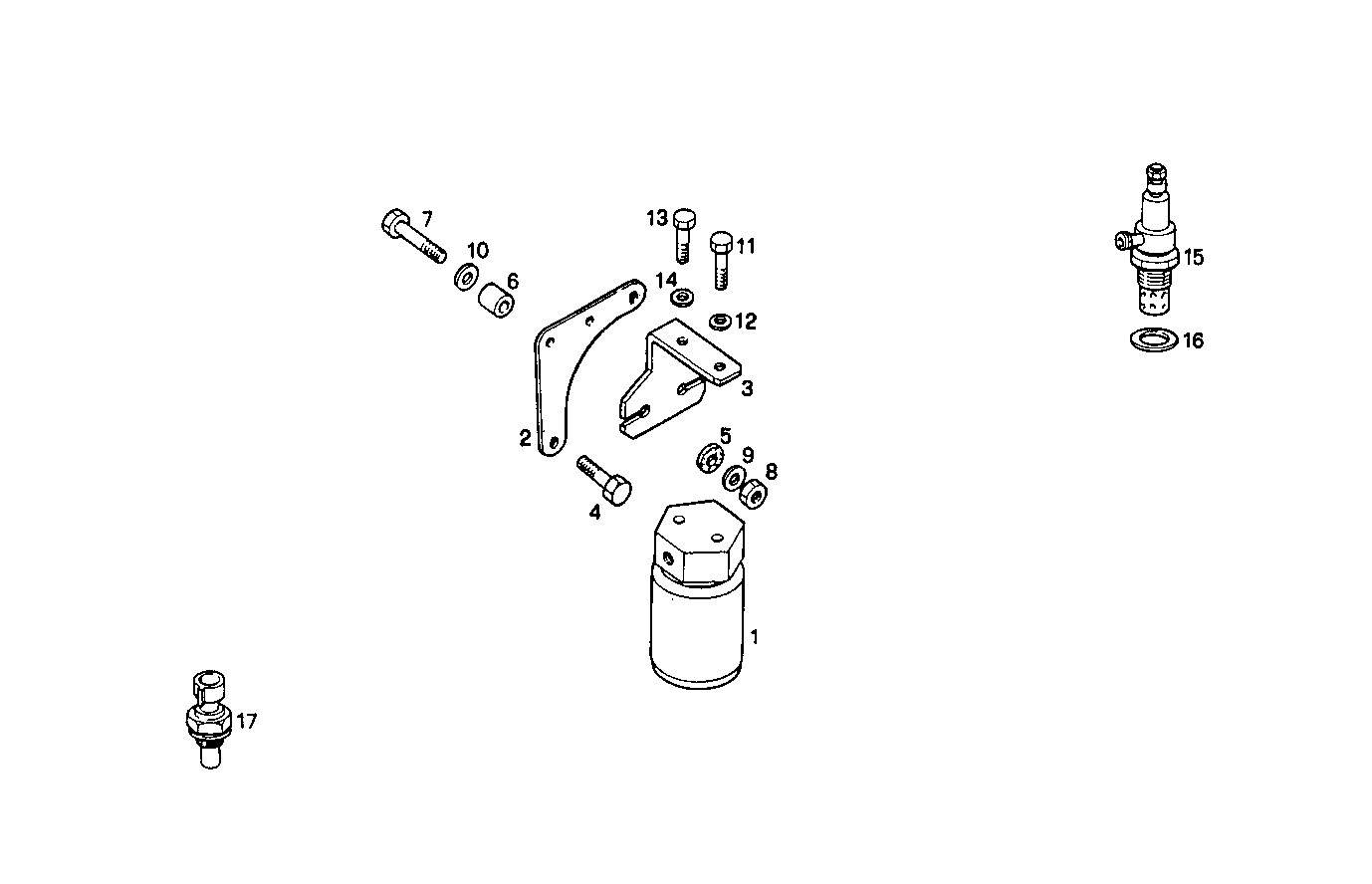

THERMO-STARTER
8061SRM33.10 — 8061SRM33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98494902 | ELECTROVALVE ELECTROVALVE | 1 | |
| 2 | 8018800 | RETAINER RETAINER | 1 | |
| 3 | 4829507 | RETAINER RETAINER | 1 | |
| 4 | 16605924 | SCREW SCREW | 2 | |
| 5 | 4833816 | INSULATING RING INSULATING RING | 2 | |
| 6 | 4833815 | SPACING BAR SPACING BAR | 2 | |
| 7 | 10902521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17037821 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 12643701 | WASHER WASHER | 2 | |
| 10 | 17088474 | WASHER WASHER | 3 | |
| 11 | 16602024 | SCREW SCREW | 1 | |
| 12 | 11199279 | SPRING WASHER SPRING WASHER | 1 | |
| 13 | 16603524 | SCREW SCREW | 1 | |
| 15 | 4849601 | THERMO-STARTER THERMO-STARTER | 1 | |
| 16 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 17 | 4857248 | TRANSMITTER TRANSMITTER | 1 |
