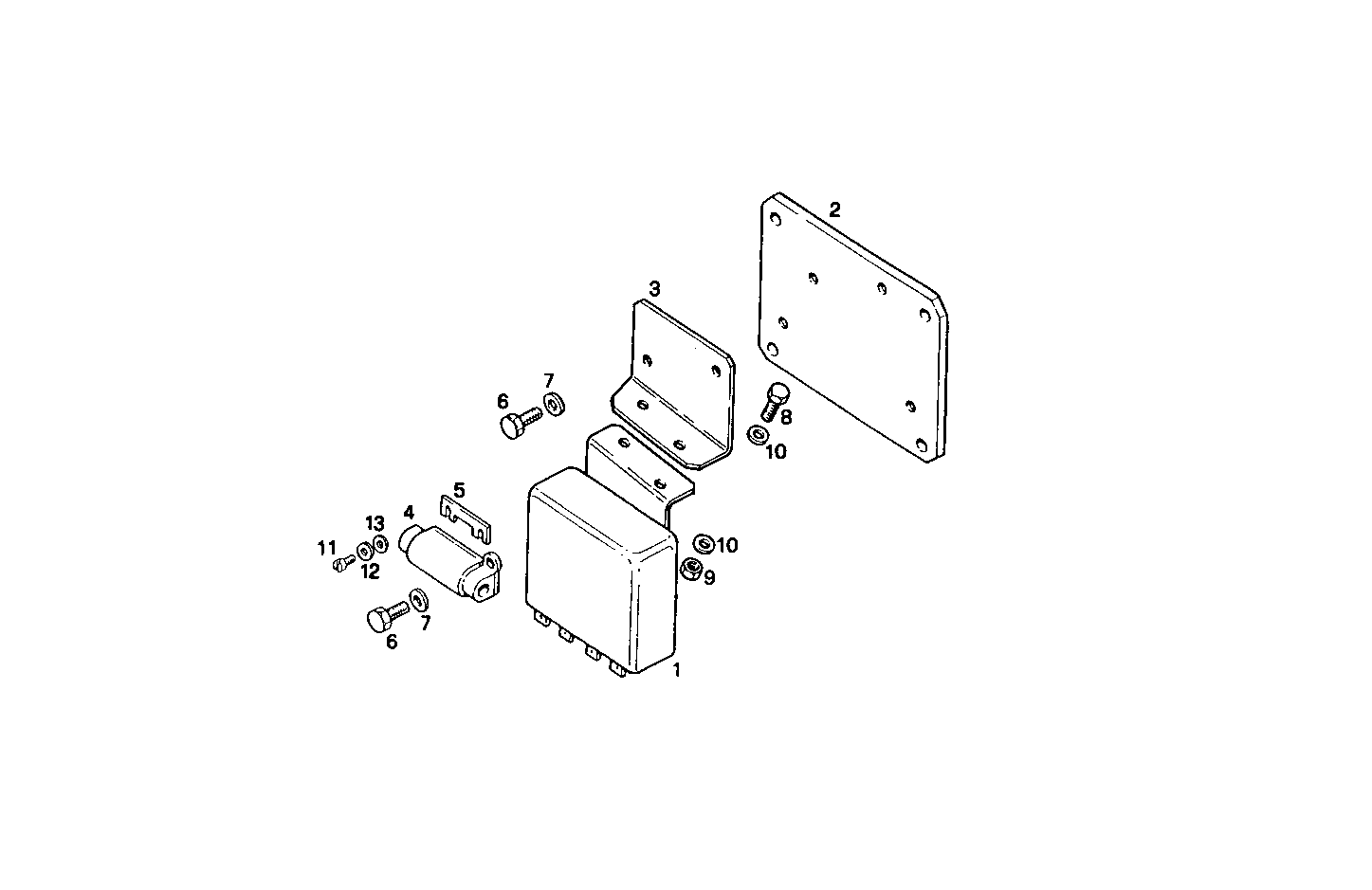

ACCESSORIES
8061SRM33.12 — 8061SRM33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99484736 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 2 | 8017236 | PLATE PLATE | 1 | |
| 3 | 8017259 | RETAINER RETAINER | 1 | |
| 4 | 98433973 | FUSE BOX FUSE BOX | 1 | |
| 5 | 98436476 | FUSE FUSE | 1 | |
| 6 | 10444721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 11181479 | WASHER WASHER | 2 | |
| 8 | 16603524 | SCREW SCREW | 2 | |
| 9 | 17037821 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 17088474 | WASHER WASHER | 4 | |
| 11 | 17131814 | SCREW SCREW | 2 | |
| 12 | 16665304 | WASHER WASHER | 2 | |
| 13 | 17494634 | SPRING WASHER SPRING WASHER | 2 |
