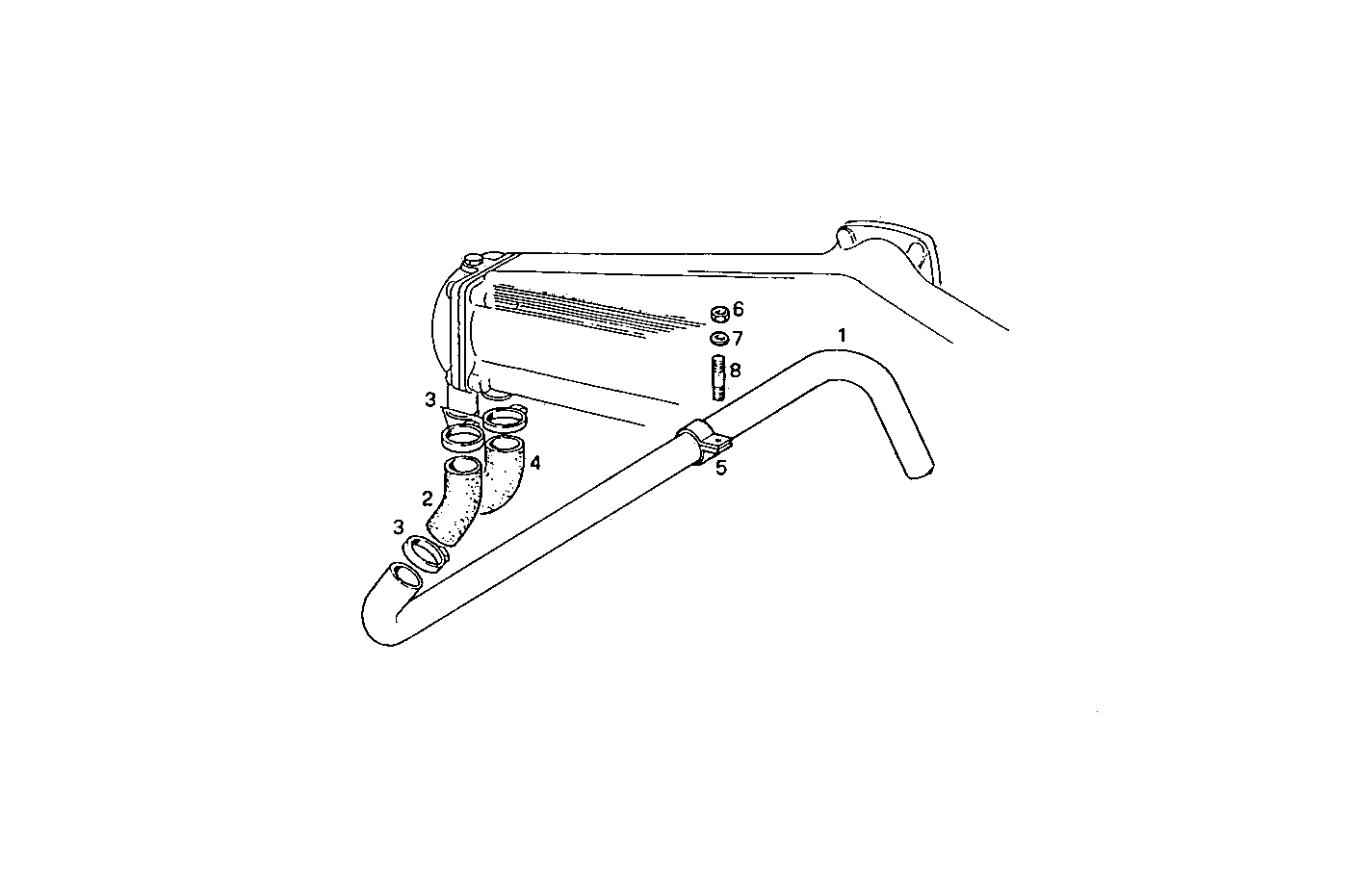

SEA WATER LINES
8061SRM33.40 — 8061SRM33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8011027 | WATER PIPE WATER PIPE | 1 | |
| 2 | 4604779 | WATER HOSE WATER HOSE | 1 | |
| 3 | 17764893 | CLIP CLIP | 3 | |
| 4 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 8103077 | CLIP CLIP | 1 | |
| 6 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 13449321 | STUD STUD | 1 |
