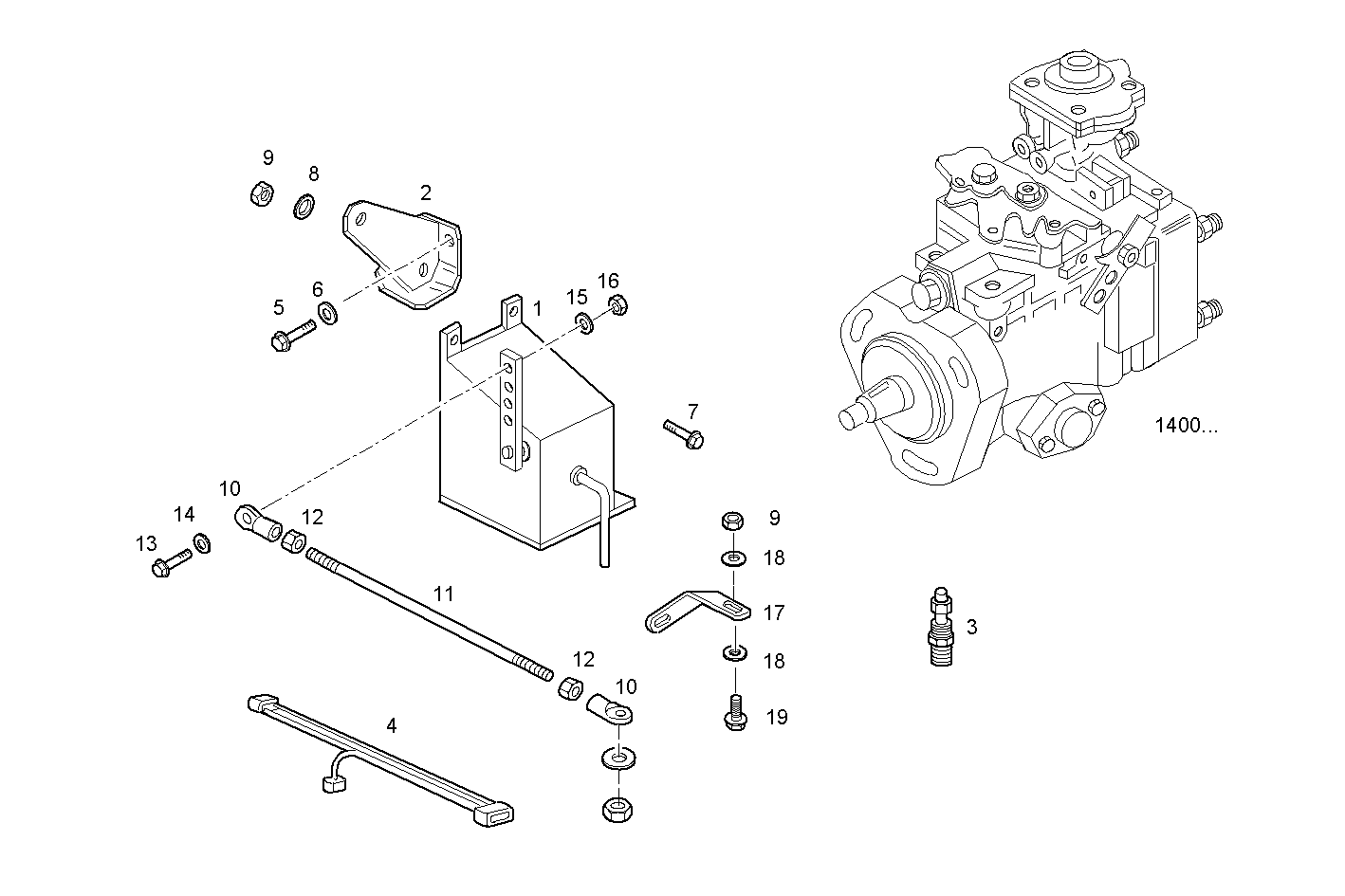

ELECTRONIC SPEED GOVERNOR
8061SRU26.06 — 8061SRU26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018971 | ENGINE ACTUATOR ENGINE ACTUATOR | 1 | |
| 2 | 8027064 | RETAINER RETAINER | 1 | |
| 3 | 8018673 | PICK-UP PICK-UP | 1 | |
| 4 | 8018968 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 5 | 16609825 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17091074 | WASHER WASHER | 2 | |
| 7 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 17037925 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 4934541 | BALL HEAD BALL HEAD | 2 | |
| 11 | 8823237 | TIE ROD TIE ROD | 1 | |
| 12 | 17037821 | HEXAGON NUT HEXAGON NUT | 2 | |
| 13 | 10902633 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17094724 | WASHER WASHER | 4 | |
| 15 | 17088474 | WASHER WASHER | 2 | |
| 16 | 17152721 | NUT NUT | 2 | |
| 17 | 8026708 | RETAINER RETAINER | 1 | |
| 18 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 19 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 |
